Ideal for aggressive abrasives such as aluminum oxide and selected mineral aggregates when rough handling can be avoided
| Kennametal model | B3M3-H |
| Kennametal material no. | 2940208 |
| Catalog no. | B1506033 |
| Bore | 3/16" |
| Nozzle type | Straight Bore |
| Liner material | Boron Carbide |
| Jacket | Aluminum |
| Details | H Boron Carbide Cone Shape 1-1/8" Base - Straight Bore Nozzle; 1-1/8" Base x 3" Length; Aluminum Jacket |
| Series | H Series Medium Blast Nozzles • Straight Bore • Boron Carbide |

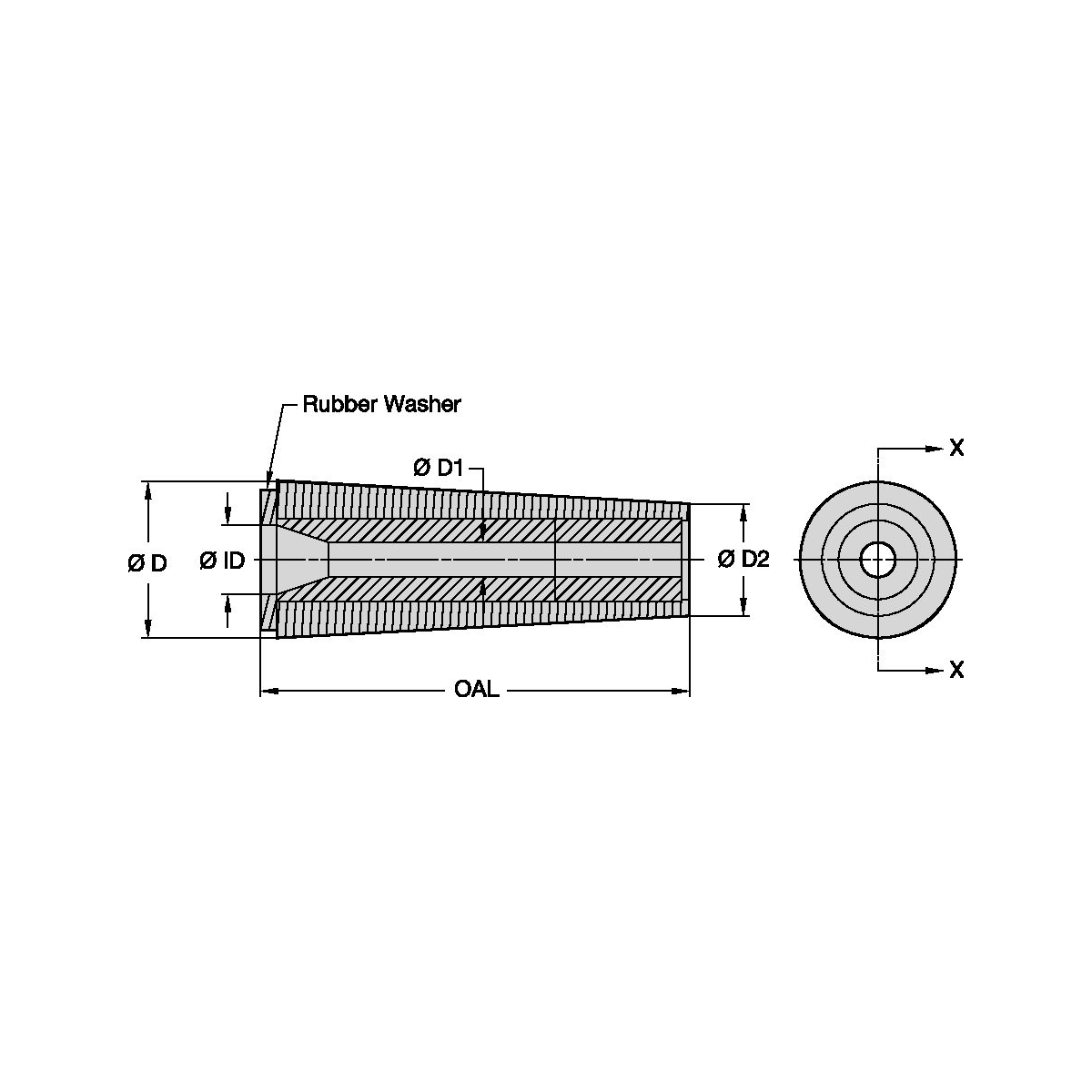

Kennametal specifications
| Grade | B4C |
| Bore diameter (D1) | 0.1875 in (4.8 mm) |
| Shank / adapter diameter (D) | 1.125 in (28.6 mm) |
| Overall length (OAL) | 3 in (76.2 mm) |
| Nozzle type | STRAIGHT BORE |
| Body diameter (D2) | 0.811 in (20.6 mm) |
Genuine Kennametal abrasive blast nozzle. Need help matching bore size to your compressor CFM or blast pot? Call 888-714-1410.
