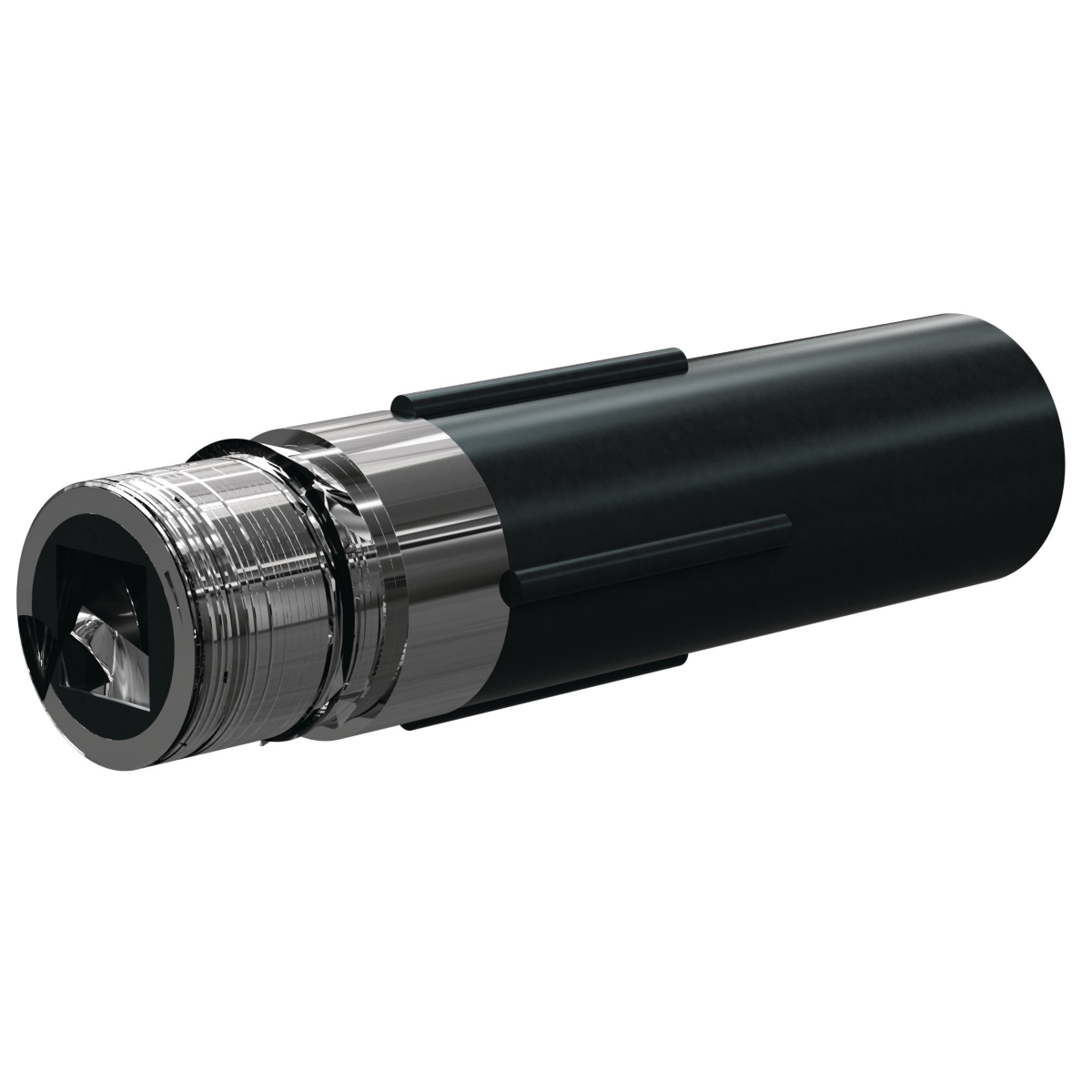

Production rate is faster than the conventional long venturi high production nozzle
| Kennametal model | SS-5 |
| Kennametal material no. | 2939346 |
| Catalog no. | B2020050 |
| Bore | 5/16" |
| Nozzle type | Long Venturi |
| Liner material | Tungsten Carbide |
| Entry | 1" |
| Thread | 1-1/4" Brass Thread |
| Jacket | Polyurethane |
| Details | SHOOTER 1" Entry, 1-1/4" Brass Thread; Polyurethane Jacket |
| Series | Square Shooter Series Blast Nozzles • Special Venturi • Tungsten Carbide • Square Bore |

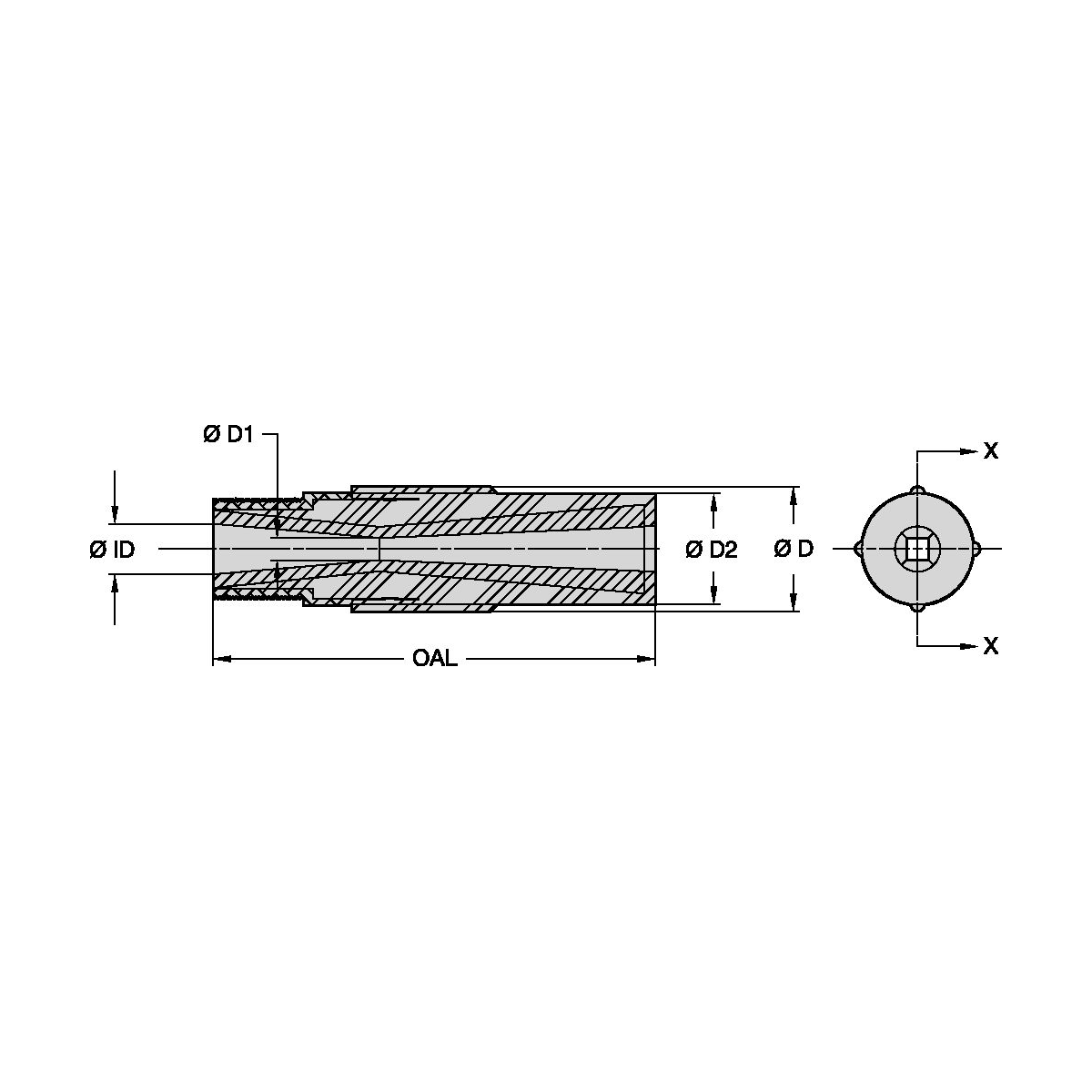

Kennametal specifications
| Grade | GP045 |
| Bore diameter (D1) | 0.3125 in (7.9 mm) |
| Overall length (OAL) | 6 in (152.4 mm) |
| Body diameter (D2) | 2.252 in (57.2 mm) |
Genuine Kennametal abrasive blast nozzle. Need help matching bore size to your compressor CFM or blast pot? Call 888-714-1410.
