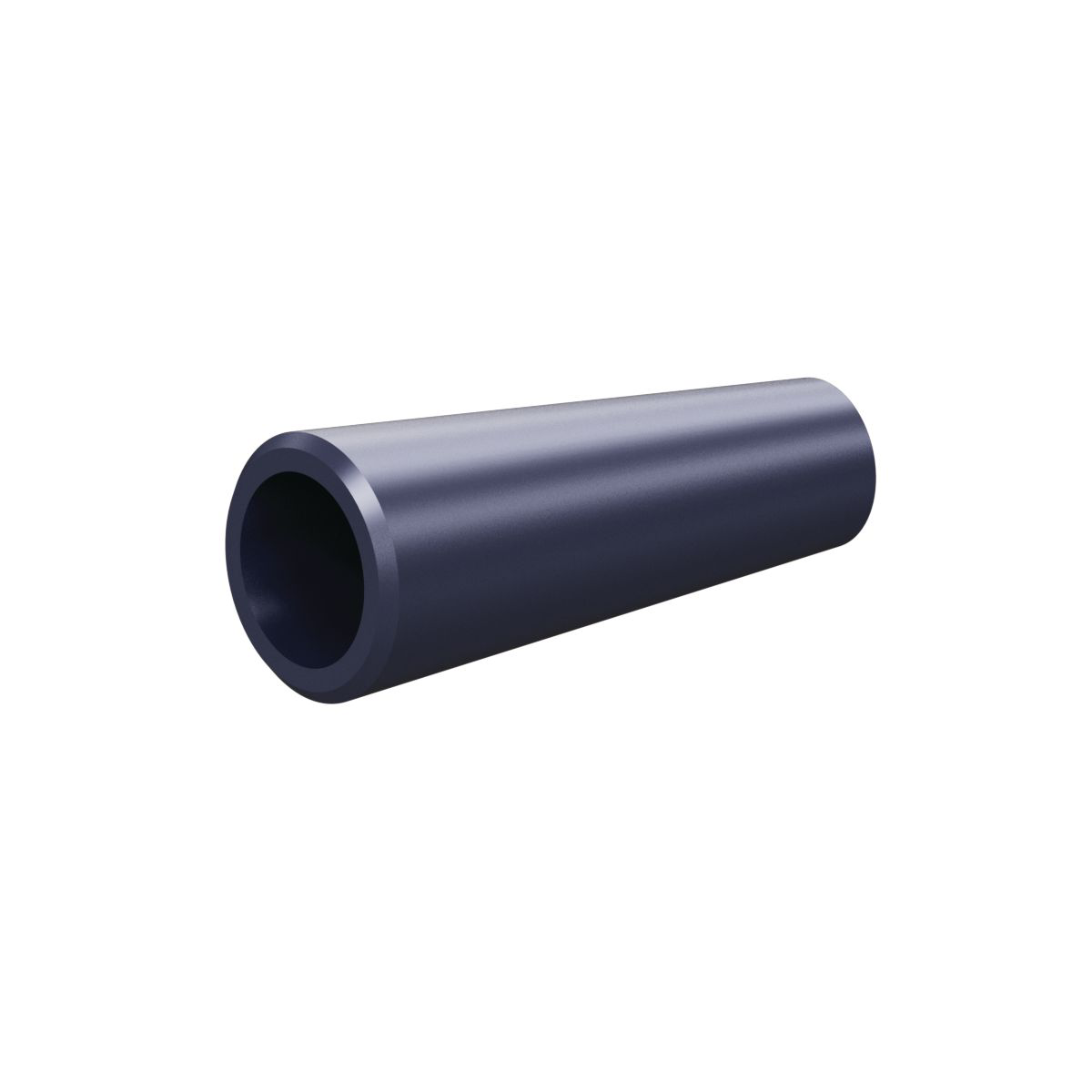

Close-range spot blasting
| Kennametal model | TC1-5 |
| Kennametal material no. | 3155642 |
| Catalog no. | B1713050 |
| Bore | 5/16" |
| Nozzle type | Straight Bore |
| Liner material | Tungsten Carbide |
| Details | Cone Shape, 1-1/8" OD tapered to 5/8" OD; 3-3/4" Length |
| Series | TC1 Series Blast Nozzles • Straight Bore • Tungsten Carbide |

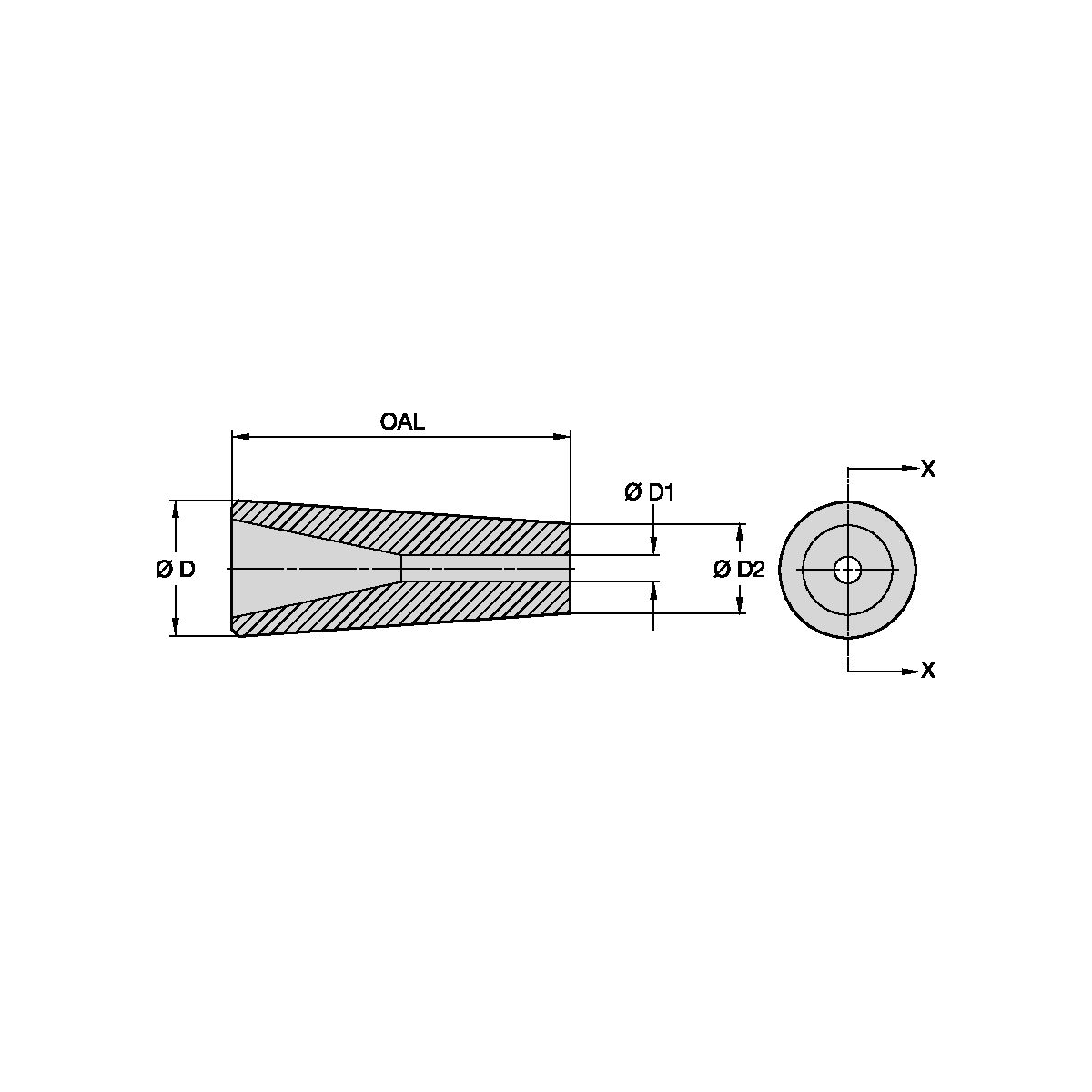

Kennametal specifications
| Grade | GP045 |
| Bore diameter (D1) | 0.3125 in (7.9 mm) |
| Shank / adapter diameter (D) | 1.125 in (28.5 mm) |
| Overall length (OAL) | 3.75 in (95.3 mm) |
| Nozzle type | STRAIGHT BORE |
| Body diameter (D2) | 0.626 in (15.9 mm) |
Genuine Kennametal abrasive blast nozzle. Need help matching bore size to your compressor CFM or blast pot? Call 888-714-1410.
