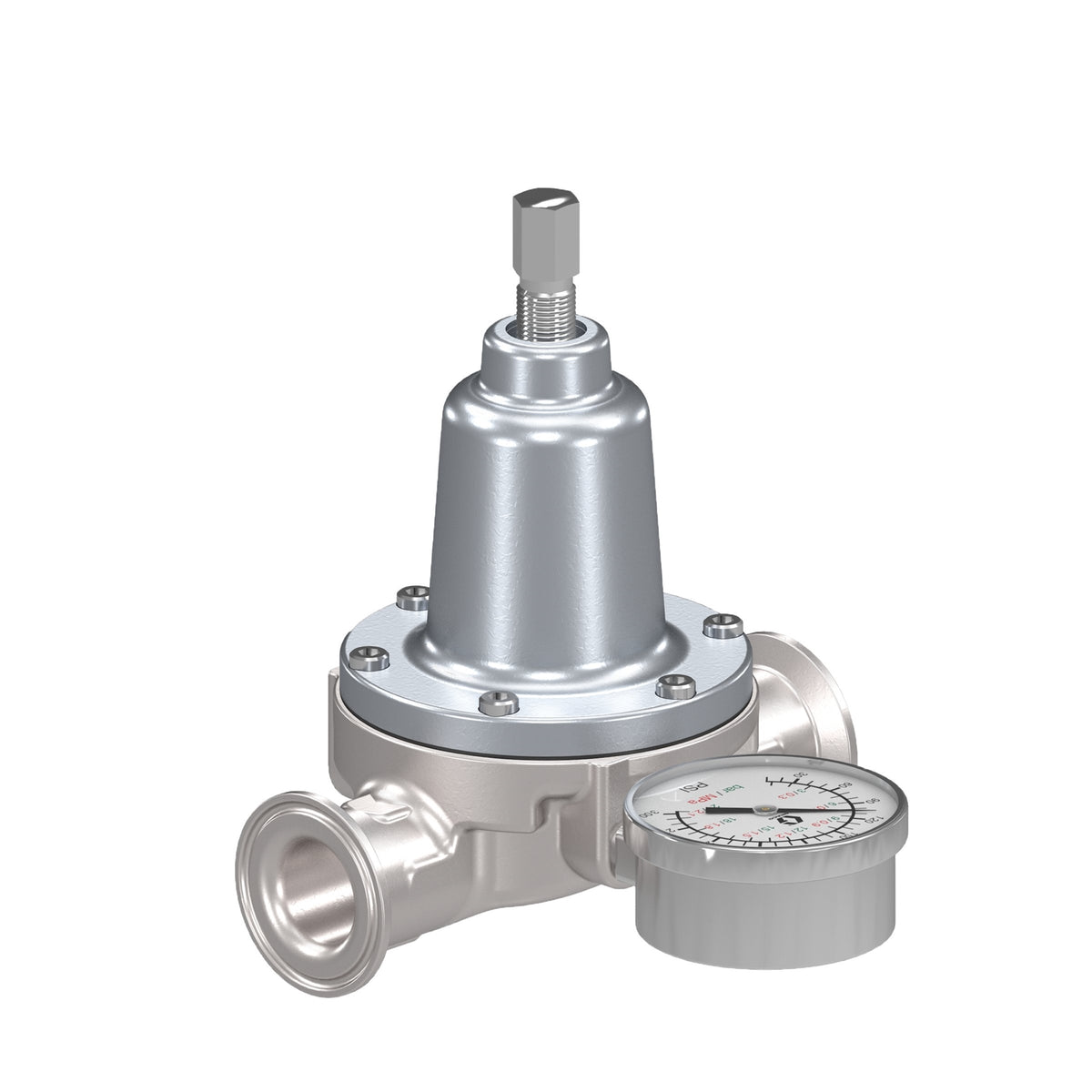

Graco’s low shear back pressure regulator (BPR) minimises shear and prevents paint degradation so that manufacturers produce consistent finish quality.
Ultralife series ceramic-coated seat and flow directors significantly increase wear resistance capability and service life
Best-in-class performance keeps pressure constant while flow rate changes
UPC Product: 00769946064667
Family Code: FAMQFP
Unit of Measure: EA
Height:
7 IN
| 17.78 CM
Length:
13 IN
| 33.02 CM
Width:
8.5 IN
| 21.59 CM
Volume:
.448 FT3
| .013 M3
Chargeable Weight:
7.2 LBS
| 3.27 KG
Technical Specifications
Compatible Material
Waterborne, Solventborne
Gauge Port Size (cm)
0.635
Gauge Port Size (in)
1/4
Gauge Port Size (mm)
6.35
Gauge Port Type
NPT
Inlet Size (cm)
3.8
Inlet Size (in)
1.5
Inlet Size (mm)
38
Inlet Thread Type
Sanitary Flange
Maximum Flow Rate (GPM)
10
Maximum Flow Rate (L/min)
38
Maximum Operating Temperature (°C)
50
Maximum Operating Temperature (°F)
122
Maximum Regulated Pressure (bar)
17.6
Maximum Regulated Pressure (kg/cm²)
17.6
Maximum Regulated Pressure (kPa)
1724
Maximum Regulated Pressure (psi)
250
Maximum Viscosity (cP)
1000
Maximum Working Pressure (bar)
21.1
Maximum Working Pressure (kg/cm²)
21.1
Maximum Working Pressure (kPa)
2068
Maximum Working Pressure (psi)
300
Minimum Operating Temperature (°C)
0
Minimum Operating Temperature (°F)
32
Minimum Regulated Pressure (bar)
1.8
Minimum Regulated Pressure (kg/cm²)
1.8
Minimum Regulated Pressure (kPa)
172
Minimum Regulated Pressure (psi)
25
Outlet Size (cm)
3.8
Outlet Size (in)
1.5
Outlet Size (mm)
38
Outlet Thread Type
Sanitary Flange
Wetted Material
Stainless Steel, Tungsten Carbide
Type
Back Pressure Regulator
Minimum Regulated Pressure (MPa)
0.17
