| Motor | 1.5 HP, 110V, Single-Phase, 10A, 60Hz |
| Swing Over Bed | 8‑1/4"(210mm) |
| Swing Over Cross Slide | 4‑5/8"(117mm) |
| Swing Over Saddle | 3-1/2"(90mm) |
| Distance Between Centers | 15‑3/4"(400mm) |

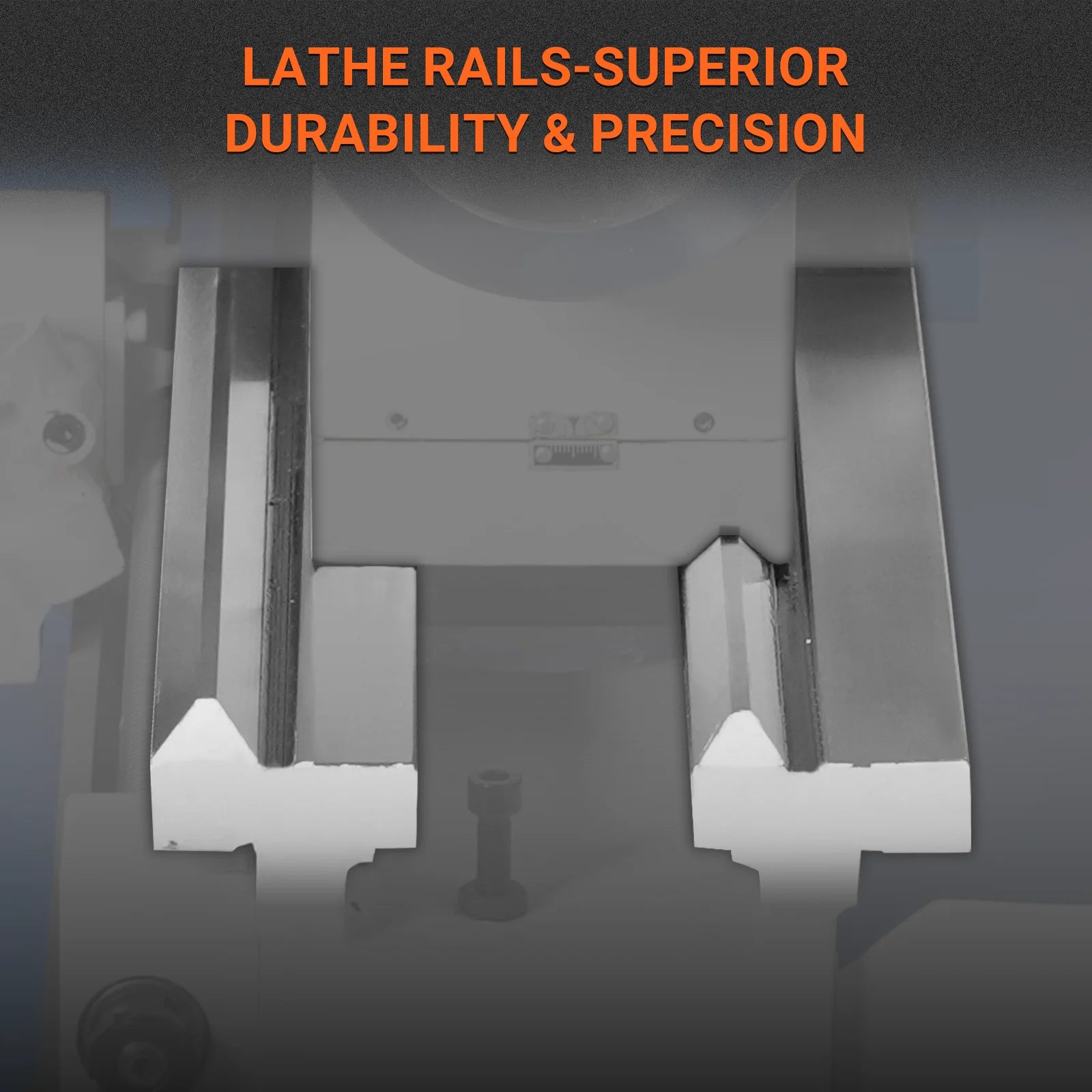

| Bed Width | 4"(100mm) |
| Spindle Bore | 1-1/2"(38mm) |
| Spindle Mount | Intrinsic back plate |
| Spindle Type | One-piece Spindle |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#2 |

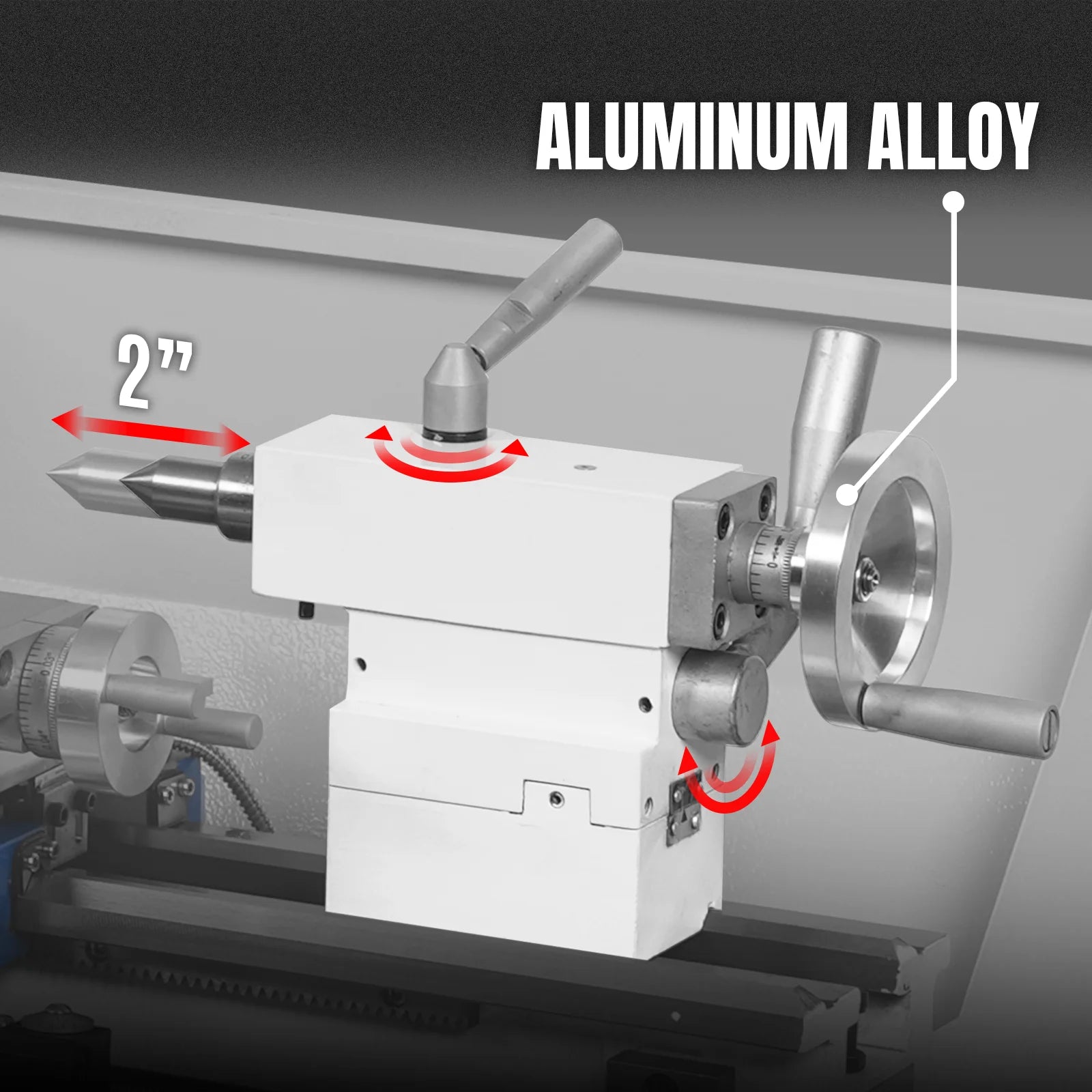

| Tailstock Quill Travel | 2"(50mm) |

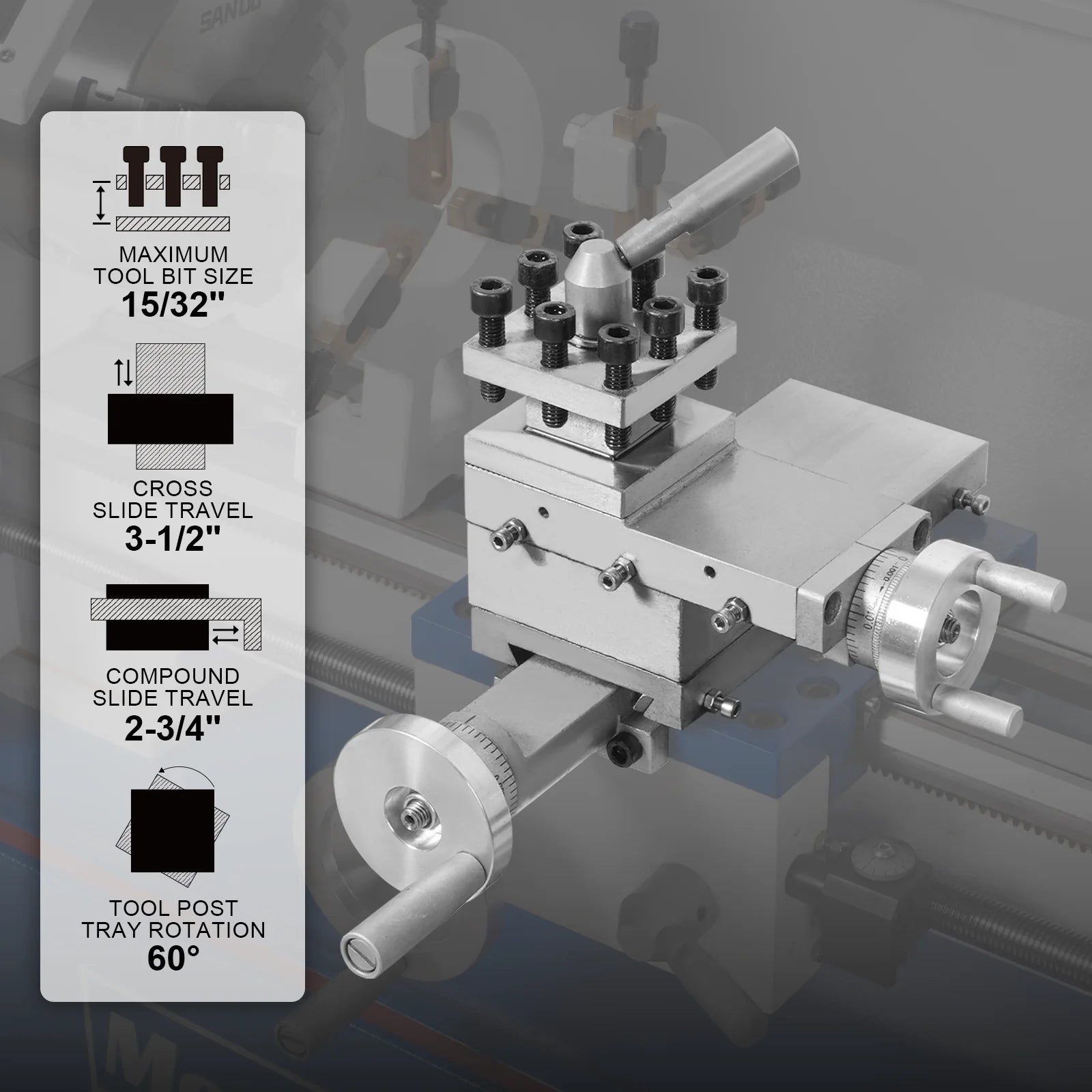

| Cross Slide Travel | 3-1/2"(90mm) |
| Compound Slide Travel | 2-3/4"(70mm) |
| Carriage Travel | 14-5/16(350mm) |

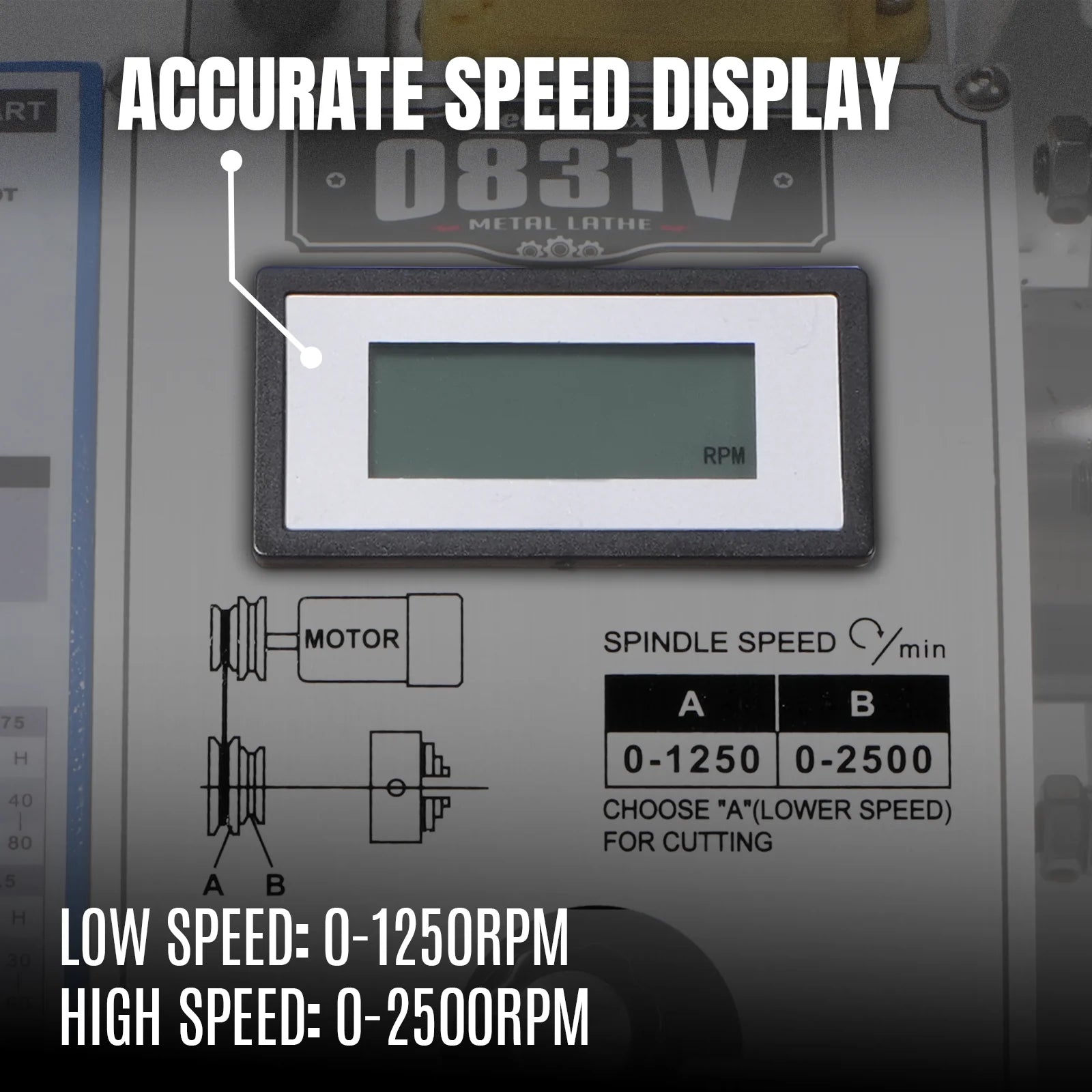

| Spindle Speeds | 0–2500 RPM |
| Number of Speed Ranges | Variable |
| Longitudinal Feeds | 0.0037-0.0068 in./rev. |
| Transverse Feed Rate | / |
| Leadscrew Size & Pitch | 16mm(12TPI) |
| Threading Capacity - Inch | 8–48 TPI（18kinds） |
| Threading Capacity - Metric | 0.4–3.5mm(15kinds) |
| Maximum Tool Bit Size | 15/32"(12mm) |

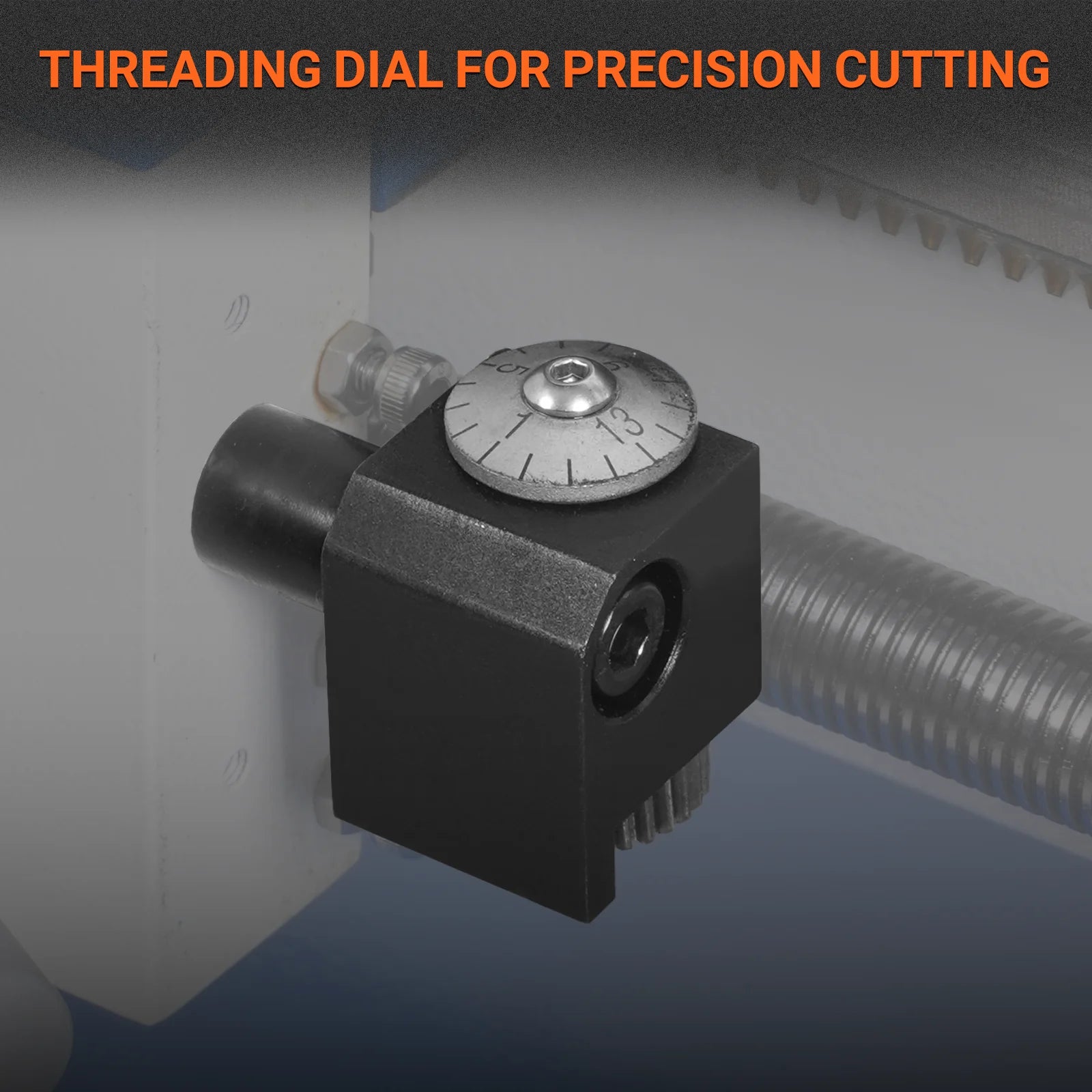

| Thread Dial Indicator | YES |
| Overall Dimensions | 36" W x 19" D x 20" H (914 x 480 x 490 mm) |
| Approximate Shipping Weight | 190lbs(75 kg) |
