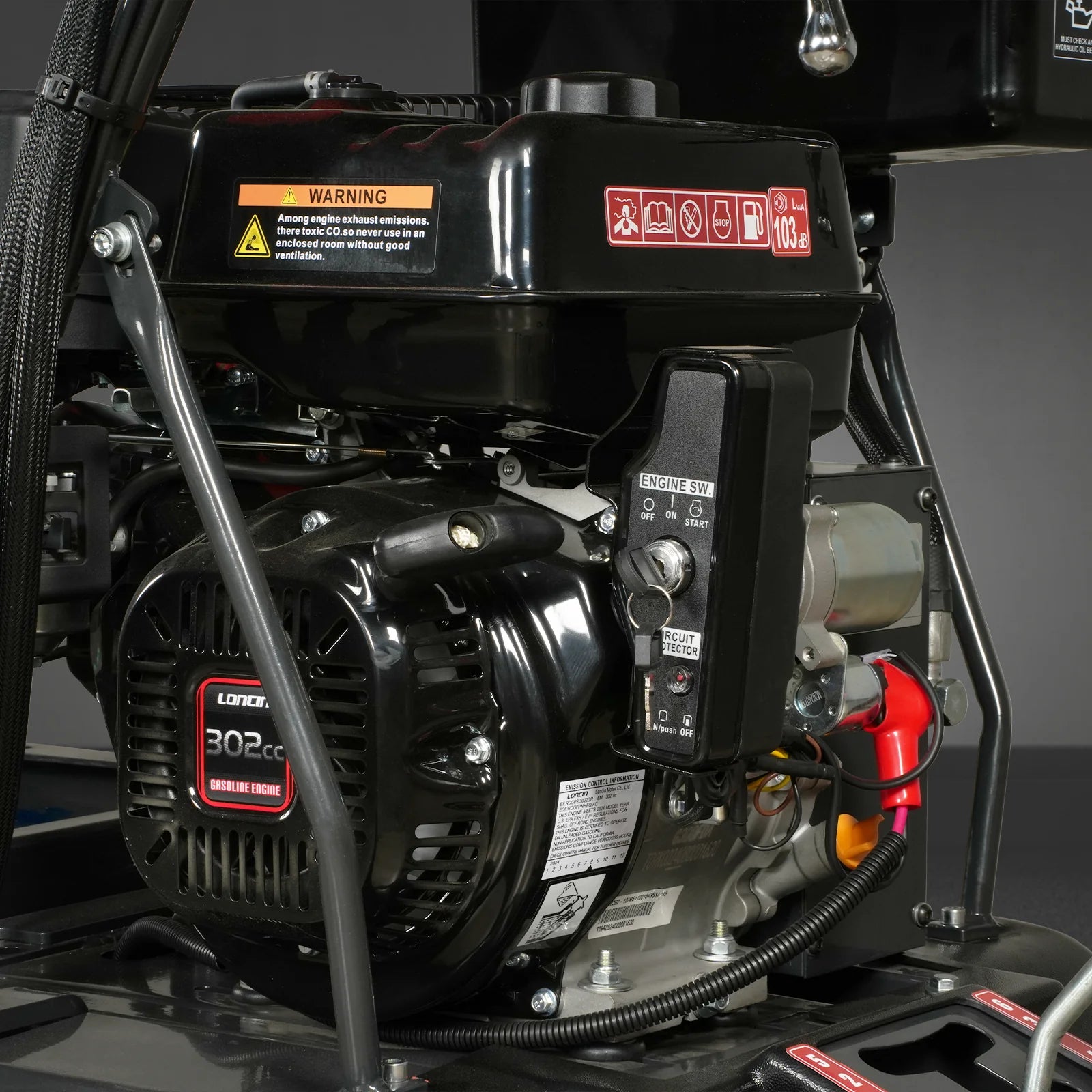

| Engine | LONCIN G300FD Gasoline Engine | Bucket Capacity | 10 cu.ft. |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV | Shovel Capacity |
1.8 cu.ft. 550lbs |

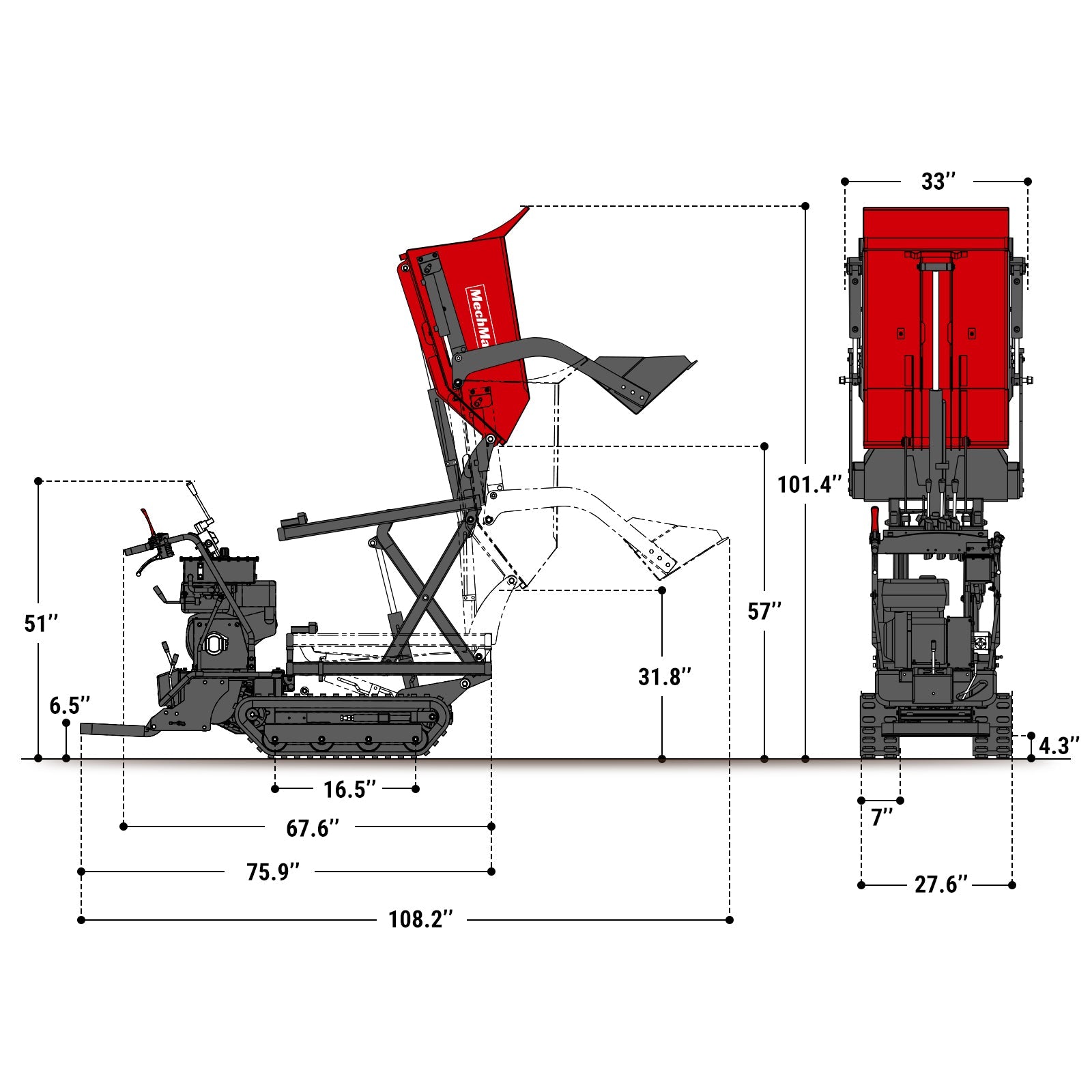

| Engine Displacement | 302 cc | Overall Width | 33 in |
| Horsepower | 10 HP | Max. Dumping Height | 57 in |
| Start | Electric Start (battery included) | Bucket Size | 37.8 x 28 x 18.1 in |
| Fuel Tank Capacity | 1.59 gal (6L) | Track Width | 7 in |
| Engine Oil Capacity | 0.25 gal (0.95L) | Ground Clearance | 4.3 in |
| Hydraulic Oil Capacity | 0.79 gal (3L) | Working Pressure | 16 Mpa |

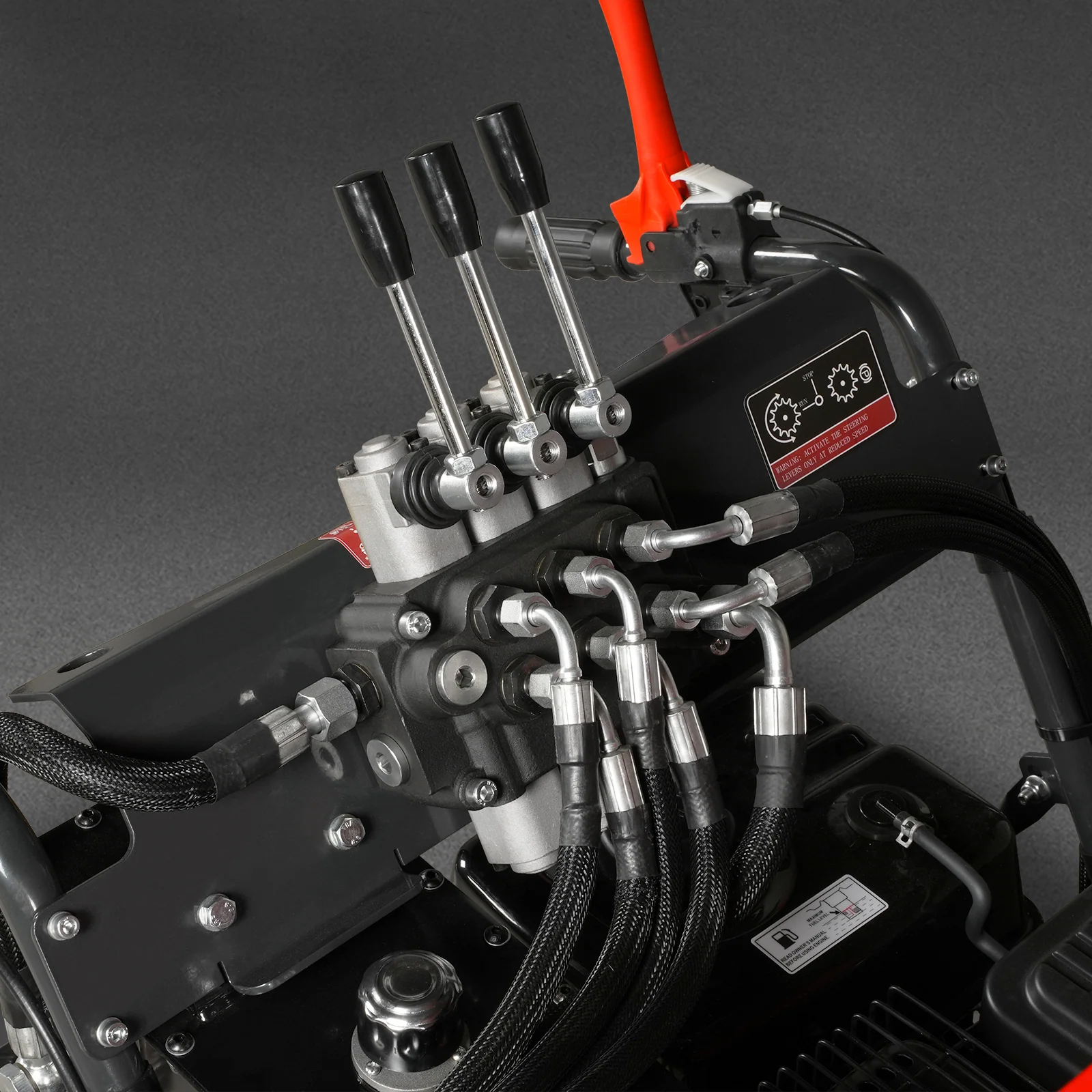

| Transmission | Transaxle 6 Forward / 2 Reverse Speed | Track Roller | 8 Pcs |
| Forward Speed | 0-4.47 mph | Track Size | 180W x 60P x 38L |
| Reverse Speed | 0-1.49 mph | Package Method | Iron Frame |
| Max. Gradeability | 30% | Packing Size | 75.5 x 30 x 51 in |
| Loading Capacity | 1100 lbs | Weight (N.W / G.W.) | 930 / 1012 lbs |
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
