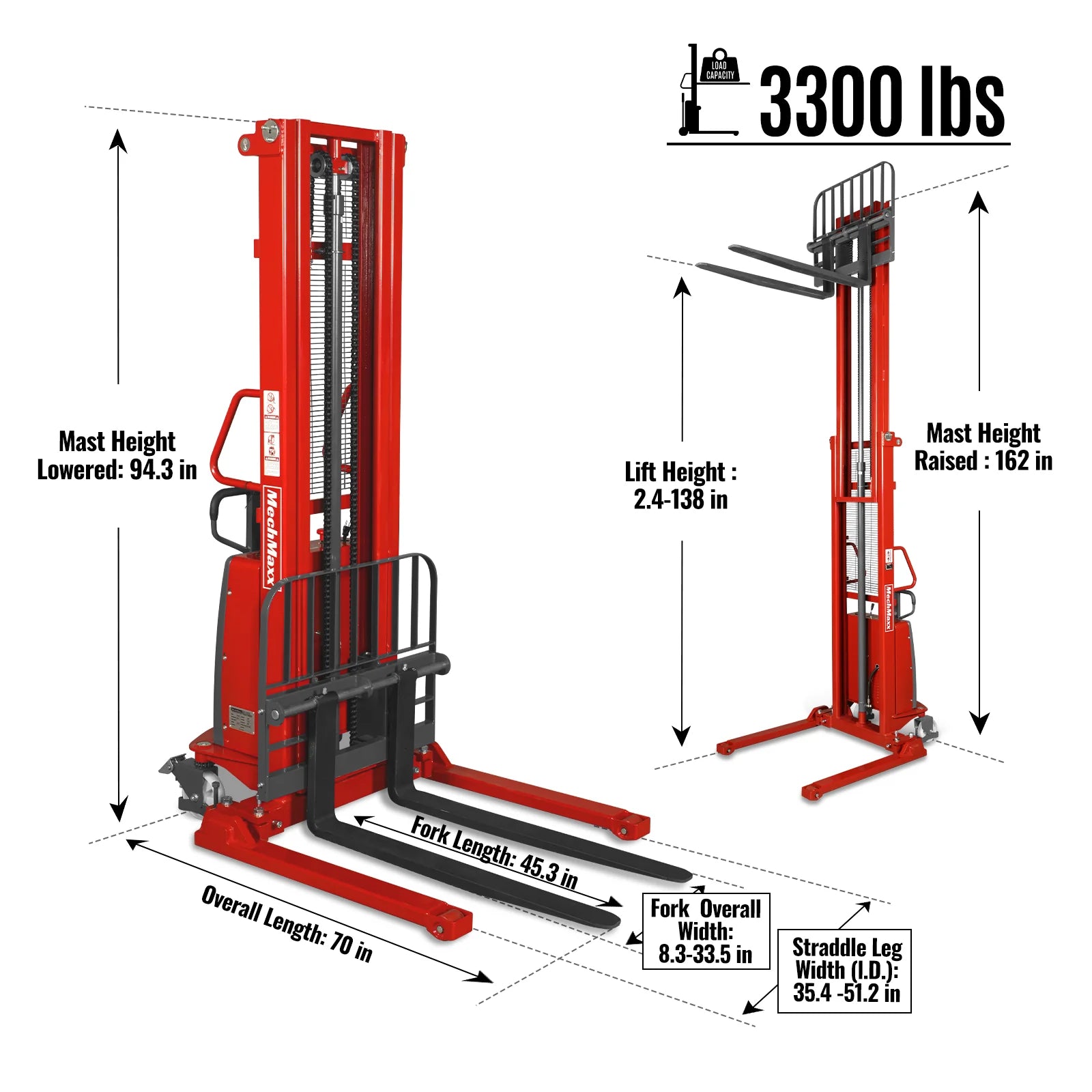

| Load Capacity | 3300 lbs | Fork Overall Width | 8.3 - 33.5 in |
| Operator Position | Walkie | Fork Size (TxWxL) | 1.4 x 4 x 45.3 in |

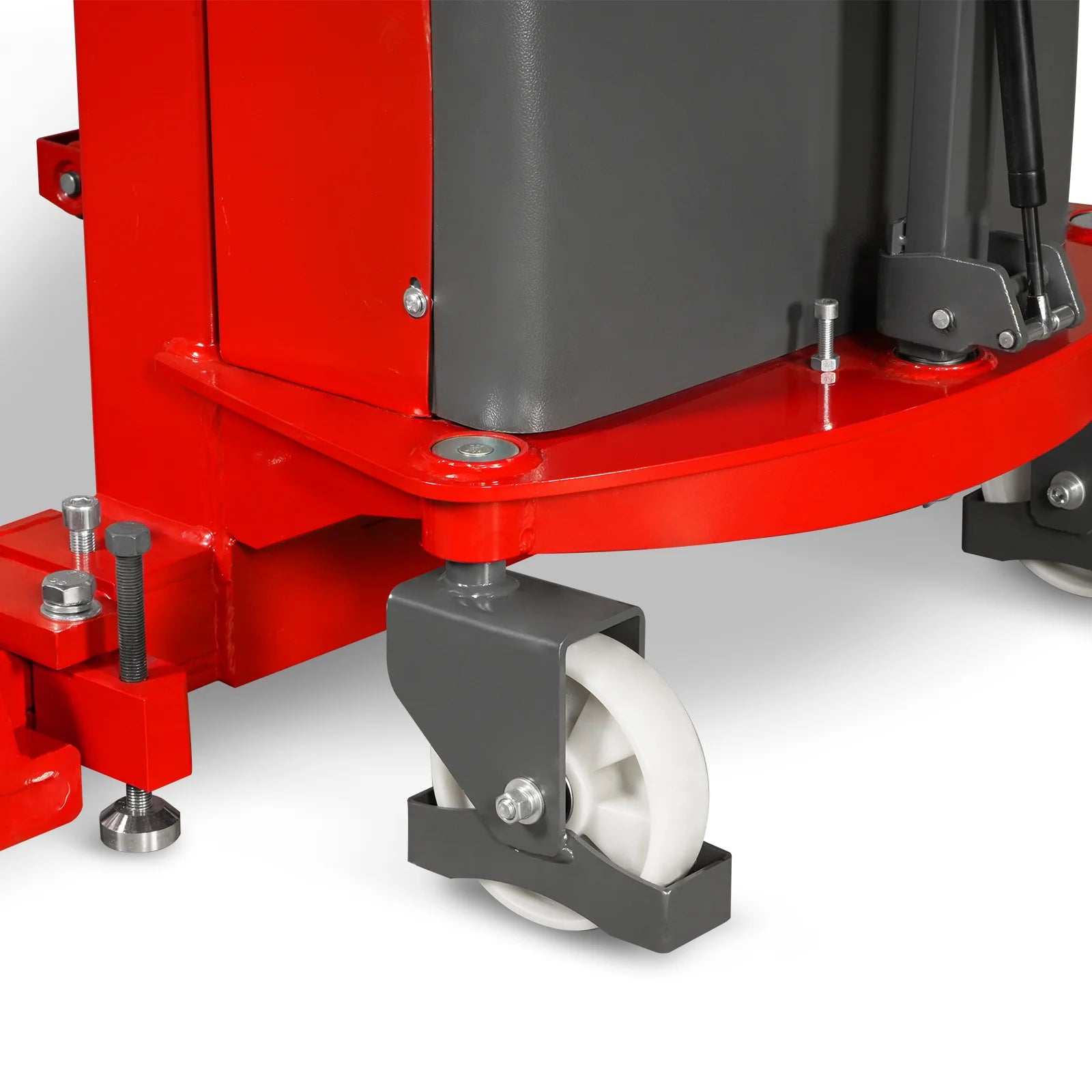

| Tire Type | Polyurethane | Turning Radius | 53.2 in |
| Overall Length | 70 in | Lifting Speed (laden/unladen) | 15/28.2 fpm |
| Max Lift Height | 138 in | Lowering Speed (laden/unladen) | 21.3/19.1 fpm |

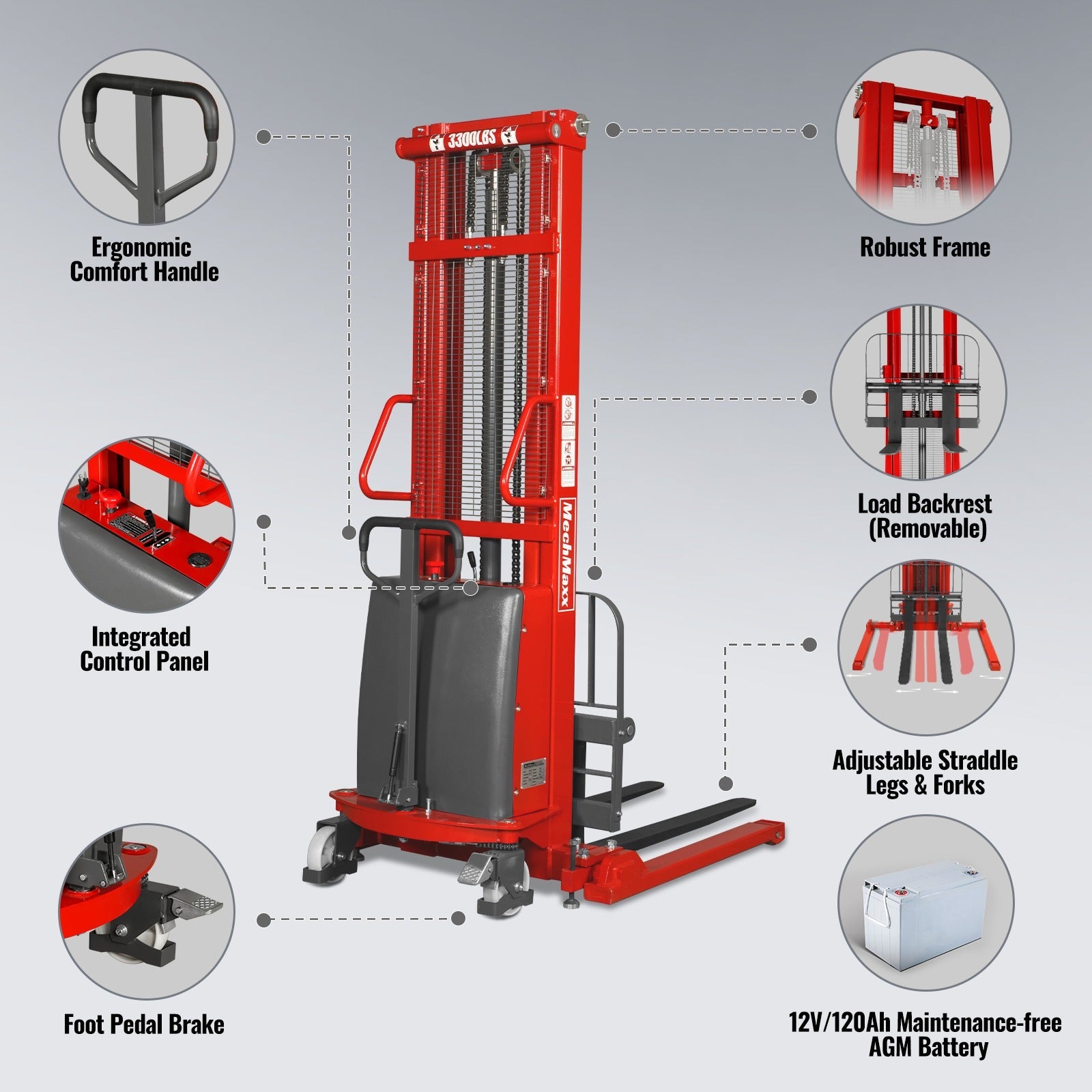

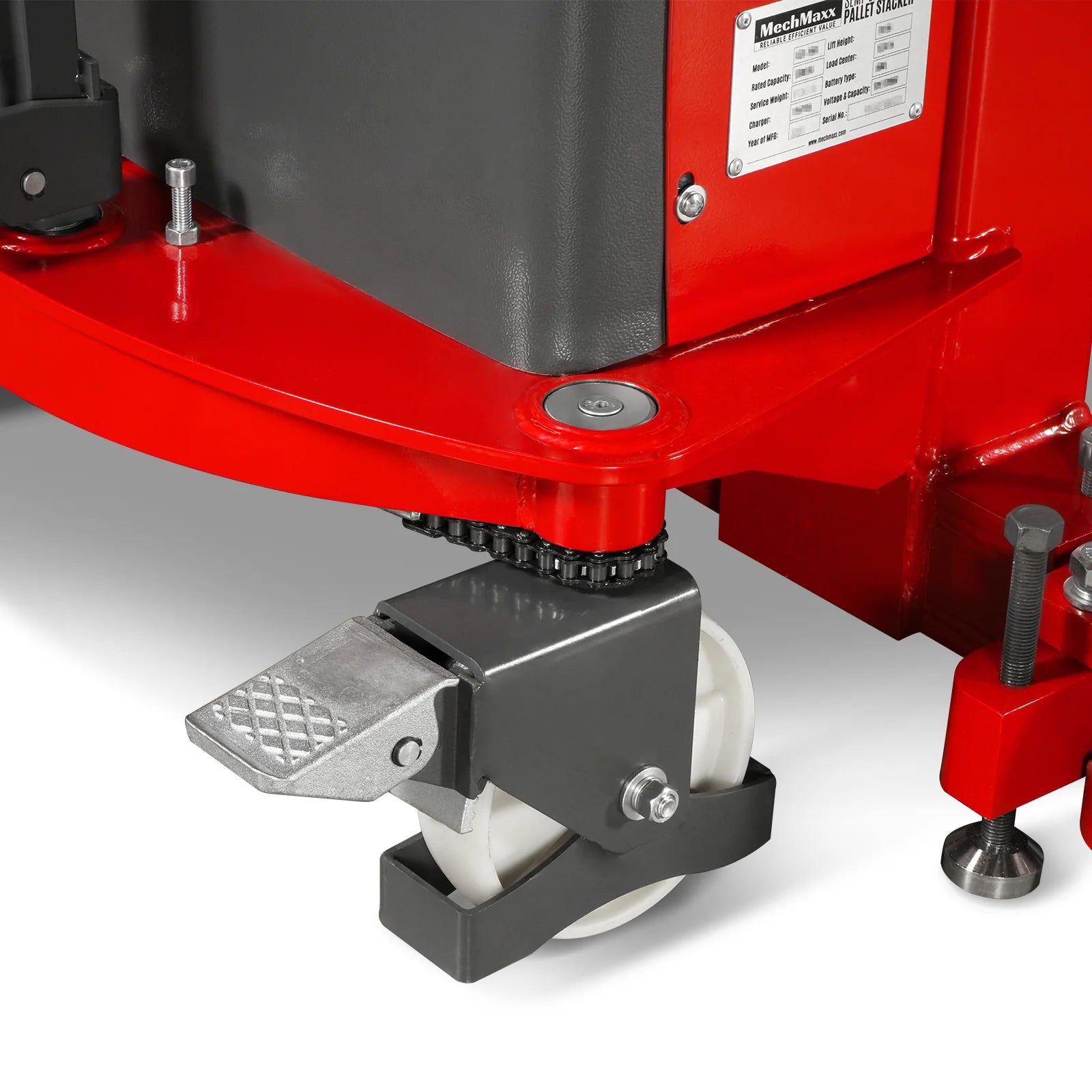

| Min Lift Height | 2.4 in | Service Brake | Foot Pedal |
| Mast Height (raised) | 162 in | Battery | 12V/120Ah Maintenance-free AGM Battery |

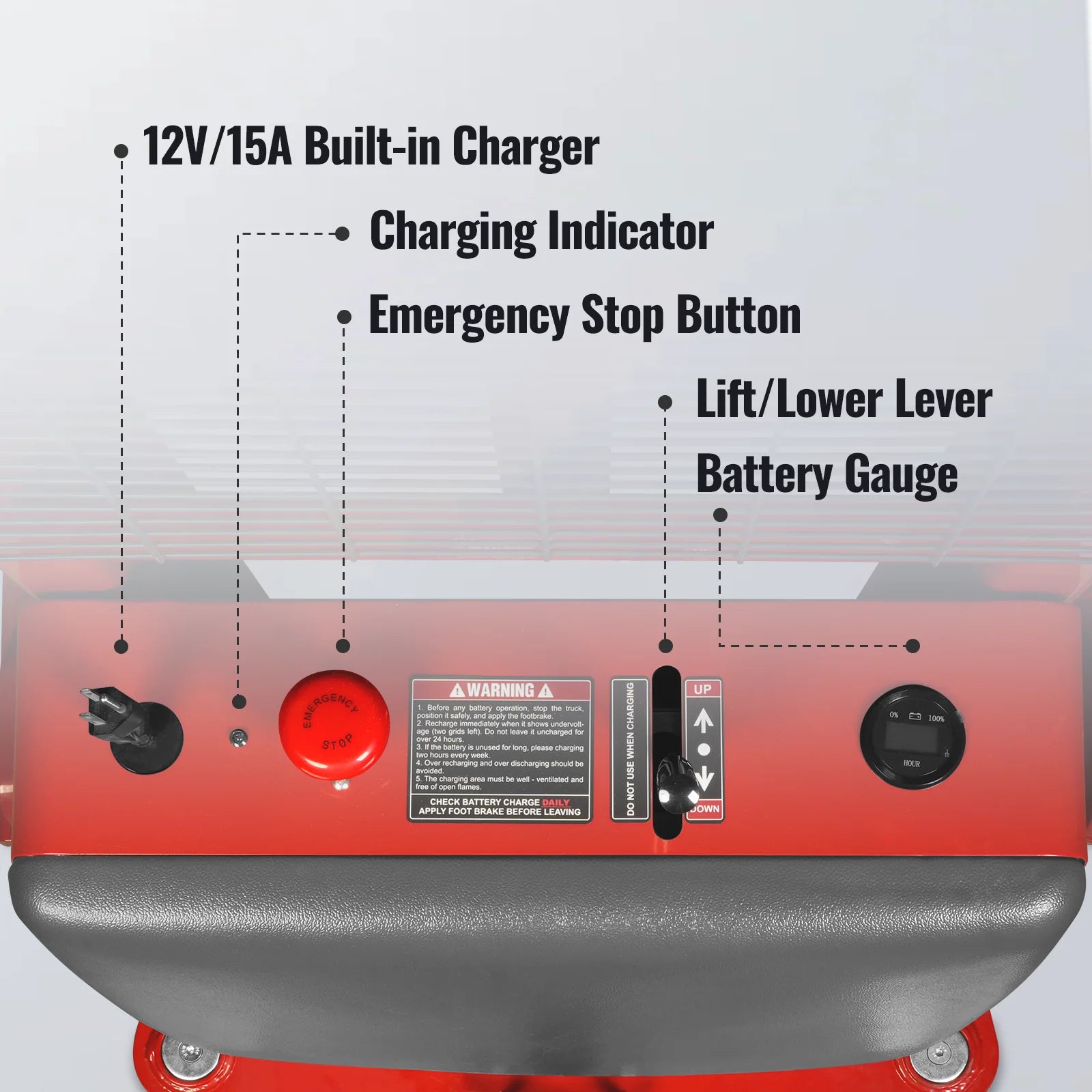

| Mast Height (lowered) | 94.3 in | Charger | 12V/15A Built-in |

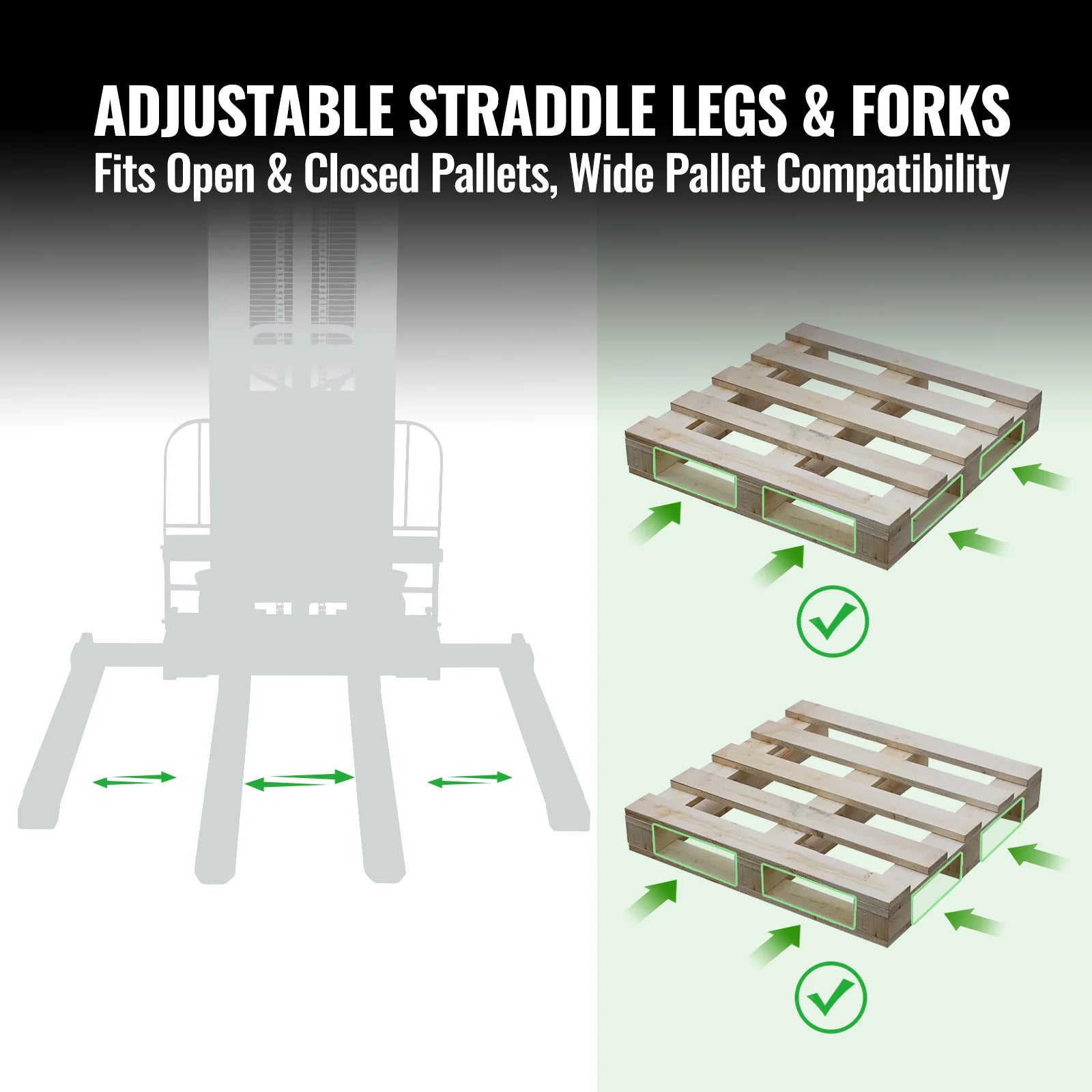

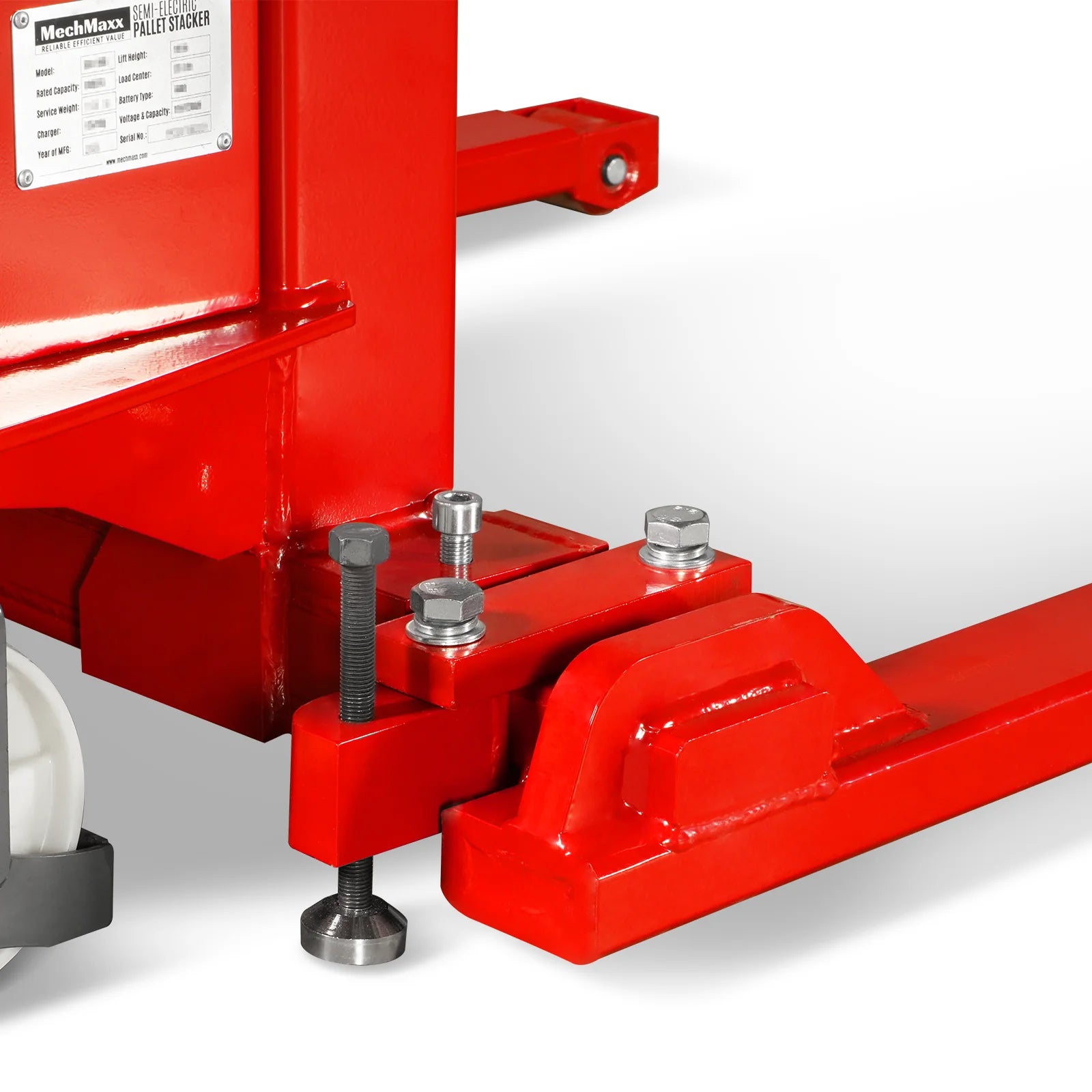

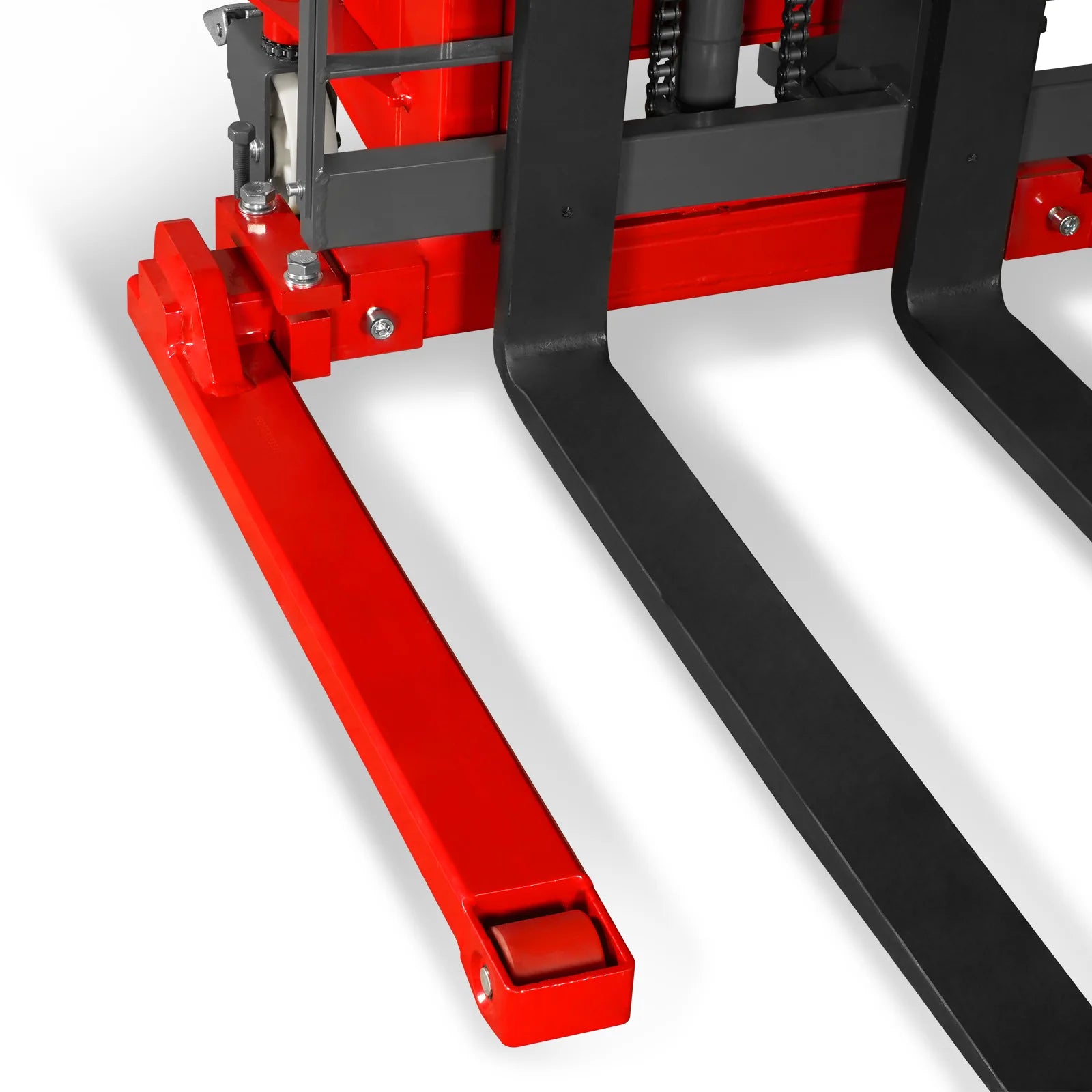

| Straddle Leg Width (I.D.) | 35.4 - 51.2 in | Lift Motor | 1.6 kW |
| Straddle Leg Width (O.D.) | 43.3 - 59 in | Packing Size (LxWxH) | 39 x 37 x 97 in |
| Load Center | 23.6 in | Weight (N.W/G.W.) | 1180/1334 lbs |
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
