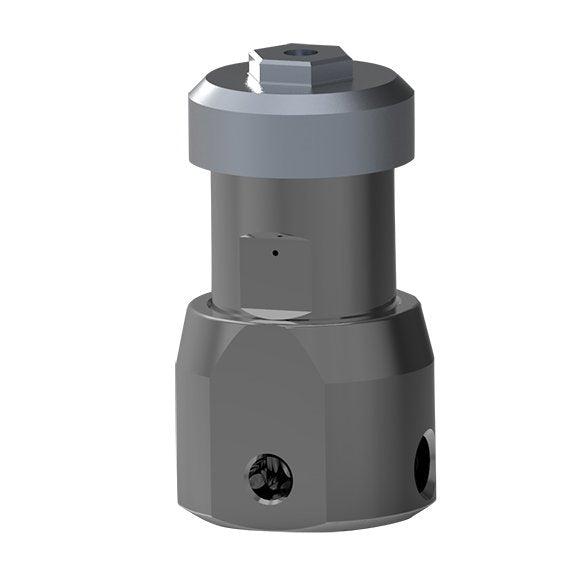

Improve finishing process control with this medium pressure, pneumatic back pressure regulator (BPR).
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
Gain better resolution than other BPR brands, adjusting more accurately to keep fluid pressure at desired levels.
Interface with Graco’s Intelligent Paint Kitchen (IPK), controlling pressure and flow without human intervention.
UPC Product: 00769946172065
Family Code: FAMQFP
Unit of Measure: EA
Height:
6 IN
| 15.24 CM
Length:
9 IN
| 22.86 CM
Width:
7 IN
| 17.78 CM
Volume:
.219 FT3
| .006 M3
Chargeable Weight:
4.75 LBS
| 2.15 KG
Technical Specifications
| Compatible Material | Waterborne, Solventborne |
|---|---|
| Gauge Port Size (cm) | 0.635 |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Size (mm) | 6.35 |
| Gauge Port Type | NPT |
| Inlet Size (cm) | 0.95 |
| Inlet Size (in) | 0.375 |
| Inlet Size (mm) | 9.5 |
| Inlet Thread Type | NPT |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kg/cm²) | 7 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 5 |
| Maximum Flow Rate (L/min) | 19 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Maximum Regulated Pressure (bar) | 138 |
| Maximum Regulated Pressure (kg/cm²) | 138 |
| Maximum Regulated Pressure (kPa) | 13800 |
| Maximum Regulated Pressure (psi) | 2000 |
| Maximum Viscosity (cP) | 250 |
| Maximum Working Pressure (bar) | 211 |
| Maximum Working Pressure (kg/cm²) | 211 |
| Maximum Working Pressure (kPa) | 20680 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Regulated Pressure (bar) | 17 |
| Minimum Regulated Pressure (kg/cm²) | 17 |
| Minimum Regulated Pressure (kPa) | 1720 |
| Minimum Regulated Pressure (psi) | 250 |
| Outlet Size (cm) | 0.95 |
| Outlet Size (in) | 0.375 |
| Outlet Size (mm) | 9.5 |
| Outlet Thread Type | NPT |
| Wetted Material | Stainless Steel, Tungsten Carbide, PTFE, Acetal Homopolymer |
| Type | Back Pressure Regulator |
