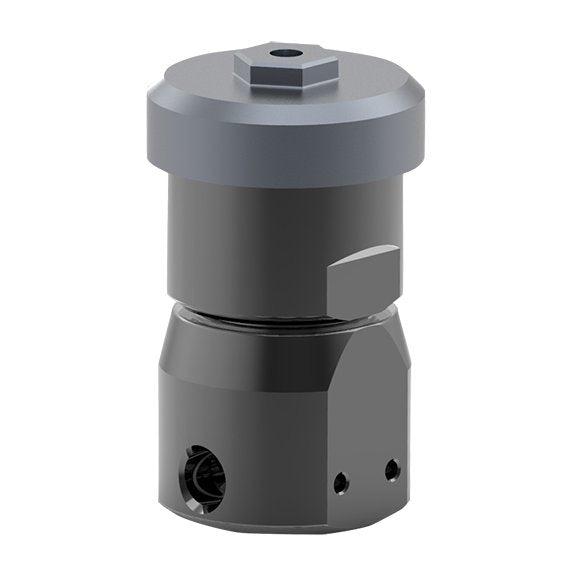

Medium Pressure Fluid Back Pressure Regulator, 3000 Max psi, 5 gpm Max flow rate, SST, Pneumatic

Medium Pressure Fluid Back Pressure Regulator, 3000 Max psi, 5 gpm Max flow rate, SST, Pneumatic

Regular price
$3,910.00
Sale price
$3,910.00
Quantity must be 1 or more


Improve finishing process control with this medium pressure, pneumatic back pressure regulator (BPR).

  • Interface with Graco’s Intelligent Paint Kitchen (IPK), controlling pressure and flow without human intervention.
  • Gain better resolution than other BPR brands, adjusting more accurately to keep fluid pressure at desired levels.
UPC Product: 00769946172089
Family Code: FAMCNV
Unit of Measure: EA
Height: 6.3 IN   |  16.002 CM
Length: 9 IN   |  22.86 CM
Width: 17.78 CM   |  7 IN
Volume: .007 M3   |  .23 FT3
Chargeable Weight: 2.46 KG  | 5.43 LBS

Technical Specifications

Compatible Material Waterborne, Solventborne
Gauge Port Size (cm) 0.635
Gauge Port Size (in) 1/4
Gauge Port Size (mm) 6.35
Gauge Port Type NPT
Inlet Size (cm) 0.95
Inlet Size (in) 0.375
Inlet Size (mm) 9.5
Inlet Thread Type NPT
Maximum Air Inlet Pressure (bar) 7
Maximum Air Inlet Pressure (kg/cm²) 7
Maximum Air Inlet Pressure (kPa) 690
Maximum Air Inlet Pressure (psi) 100
Maximum Flow Rate (GPM) 5
Maximum Flow Rate (L/min) 19
Maximum Operating Temperature (°C) 50
Maximum Operating Temperature (°F) 122
Maximum Regulated Pressure (bar) 207
Maximum Regulated Pressure (kg/cm²) 207
Maximum Regulated Pressure (kPa) 20700
Maximum Regulated Pressure (psi) 3000
Maximum Viscosity (cP) 250
Maximum Working Pressure (bar) 211
Maximum Working Pressure (kg/cm²) 211
Maximum Working Pressure (kPa) 20680
Maximum Working Pressure (psi) 3000
Minimum Operating Temperature (°C) 0
Minimum Operating Temperature (°F) 32
Minimum Regulated Pressure (bar) 17
Minimum Regulated Pressure (kg/cm²) 17
Minimum Regulated Pressure (kPa) 1720
Minimum Regulated Pressure (psi) 250
Outlet Size (cm) 0.95
Outlet Size (in) 0.375
Outlet Size (mm) 9.5
Outlet Thread Type NPT
Wetted Material Stainless Steel, Tungsten Carbide, PTFE, Acetal Homopolymer
Type Back Pressure Regulator

;
