Motor Driven Hose Reel - 1500 PSI - 1185 Series
Motor Driven Hose Reel - 1500 PSI - 1185 Series
Motor Driven Hose Reel - 1500 PSI - 1185 Series
Motor Driven Hose Reel - 1500 PSI - 1185 Series
Motor Driven Hose Reel - 1500 PSI - 1185 Series
Motor Driven Hose Reel - 1500 PSI - 1185 Series

Motor Driven Hose Reel - 1500 PSI - 1185 Series

Regular price
$1,925.00
Sale price
$1,925.00
Quantity must be 1 or more


115V AC 1/2HP EXP. Reversilble AC Rectified - Reel Only - 1 1/2" X 250'

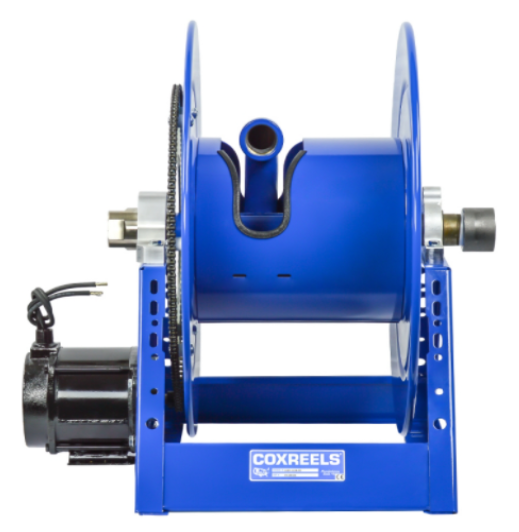

COXREELS® 1185 Series motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels’ exclusive low profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap. The sturdy all welded "A" frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

SWIVEL

  • External fluid path with in-line aluminum straight, full flow NPT swivel inlet.
  • Swivel Seals: NITRILE

DESIGN & STRUCTURE

  • All welded steel “A” frame construction to strengthen the reel structure
  • Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap.
  • Robust lubricated horizontal surface mount bearings for easy rotation.
  • Adjustable tension brake to prevent “free-wheeling” during operation

RETRACT

  • Reliable chain & sprocket drive on motor driven models.
  • Solid steel direct hand crank with smooth round handle.
  • See Motor Options Chart
  • motor options chart

motor options chart

I.D 1 1/2"
O.D 2 1/16"
LENGTH 250'
HOSE No
MAX PSI 1500
SHIP WEIGHT (LBS) 195
OVERALL DIMENSIONS (W) (H) (L) 47.63"(W) 30"(H) 28"(L)
MOUNTING PATTERN (M) (N)  36.25"(M) 18.5"(N)
BASE (X) (Y)  35.5"(X) 24.5"(Y)

;
