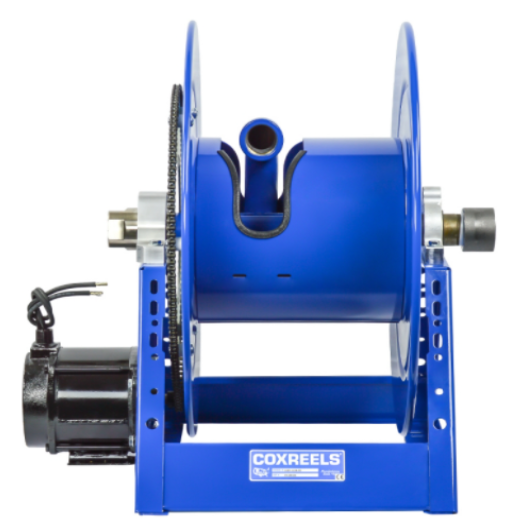

Motor Driven Hose Reel - 1500 PSI - 1185 Series
Motor Driven Hose Reel - 1500 PSI - 1185 Series
Motor Driven Hose Reel - 1500 PSI - 1185 Series
Motor Driven Hose Reel - 1500 PSI - 1185 Series
Motor Driven Hose Reel - 1500 PSI - 1185 Series
Motor Driven Hose Reel - 1500 PSI - 1185 Series

Motor Driven Hose Reel - 1500 PSI - 1185 Series

Regular price
$1,968.00
Sale price
$1,968.00
Quantity must be 1 or more


Air #6 VANE Cast Iron Air Motor - Reel Only - 1 1/2" X 75'

COXREELS® 1185 Series motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels’ exclusive low profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap. The sturdy all welded "A" frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

SWIVEL

  • External fluid path with in-line aluminum straight, full flow NPT swivel inlet.
  • Swivel Seals: NITRILE

DESIGN & STRUCTURE

  • All welded steel “A” frame construction to strengthen the reel structure
  • Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap.
  • Robust lubricated horizontal surface mount bearings for easy rotation.
  • Adjustable tension brake to prevent “free-wheeling” during operation

RETRACT

  • Reliable chain & sprocket drive on motor driven models.
  • Solid steel direct hand crank with smooth round handle.
  • See Motor Options Chart
  • motor options chart

motor options chart

SIGNATURE FEATURES

  • Professional grade heavy duty steel construction.
  • Rolled edges & ribbed discs provide strength & safety.
  • Leading 2-year manufacturer's limited warranty.
  • Made in the U.S.A. - Sold & Supported Worldwide.

  • SWIVEL - In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
  • OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
  • "A" FRAME - Sturdy one piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
  • PERMANENT LUBRICATED BEARINGS - Robust lubricated horizontal surface mount bearings for easy rotation.
  • OTHER FEATURES INCLUDE - long lasting, chip



I.D 1 1/2"
O.D 2 1/16"
LENGTH 75'
HOSE No
MAX PSI 1500
SHIP WEIGHT (LBS) 89
OVERALL DIMENSIONS (W) (H) (L) 27.38"(W) 26"(H) 24"(L)
MOUNTING PATTERN (M) (N)  18.75"(M) 16"(N)

;
