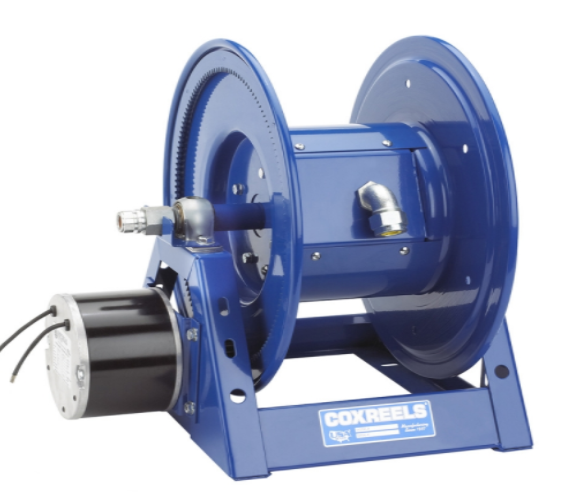

Motor Driven Power Cord Reel - Less Cord - 1125PCL Series

Motor Driven Power Cord Reel - Less Cord - 1125PCL Series

Regular price
$1,706.00
Sale price
$1,706.00
Quantity must be 1 or more


24V DC 1/3 HP Reversible - 30 AMP - 10 GA. / 200' - 12 GA. / 250'

COXREELS® 1125PCL Series professional-grade motorized cord reels feature the industry-preferred design including a drum-located, easy to access slip ring assembly for simple routine maintenance and a sturdy all-welded "A" frame built to efficiently handle the most demanding of tasks. The unique permanently lubricated and self-aligning pillow block bearings at each end of the drum allow smooth rotation and are specifically designed for rough, heavy-duty applications. These innovative models handle long length of 12/3 gauge or 10/3 gauge SO type power cord.

SWIVEL

  • Drum-located slip ring assembly with easy to access cover for simple routine maintenance.
  • Available with 30 Amps or 45 Amps, 600 Volt rated slip ring assembly (see chart).

DESIGN & STRUCTURE

  • All welded steel “A” frame construction to strengthen the reel structure
  • Narrow width for convenient installation in restricted spaces

RETRACT

  • Reliable direct gear drive on motor-driven models - No chain.
  • Solid steel direct hand crank with smooth round handle.
  • See Motor Options Chart

SIGNATURE FEATURES

  • Professional grade heavy-duty steel construction.
  • Rolled edges & ribbed discs provide strength & safety.
  • Leading 2-year manufacturer's limited warranty.
  • Made in the U.S.A. - Sold & Supported Worldwide.
  • SLIP RING ASSEMBLY - Drum-located slip ring assembly with easy to access removable panel for simple routine maintenance. No need to remove the reel from its mount.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
  • "A" FRAME - Sturdy one-piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
  • PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
  • CABLE KEEPER - Integrated anti-rotation cable keeper prevents the 5-foot lead cable from whipping or twisting.
  • OTHER FEATURES INCLUDE - long-lasting, chip-resistant and rust inhibiting CPC powder coat finish, and reliable direct gear drive providing quiet & smooth rotation - NO CHAIN. Motor options available in air, electric, and hydraulic.
LENGTH 250' - 200'
HOSE No
SHIP WEIGHT (LBS) 48
AMPS 30 AMP
VOLTS 600V
OVERALL DIMENSIONS (W) (H) (L) 21.63"(W) 19.13"(H) 17.5"(L)
MOUNTING PATTERN (M) (N)  11.44"(M) 10"(N)
BASE (X) (Y)  13.38"(X) 16"(Y)

;
