Motorized Hose Reel - 3000 PSI - Less Hose - 1125 Series
Motorized Hose Reel - 3000 PSI - Less Hose - 1125 Series
Motorized Hose Reel - 3000 PSI - Less Hose - 1125 Series
Motorized Hose Reel - 3000 PSI - Less Hose - 1125 Series
Motorized Hose Reel - 3000 PSI - Less Hose - 1125 Series
Motorized Hose Reel - 3000 PSI - Less Hose - 1125 Series
Motorized Hose Reel - 3000 PSI - Less Hose - 1125 Series

Motorized Hose Reel - 3000 PSI - Less Hose - 1125 Series

Regular price
$1,102.00
Sale price
$1,102.00
Quantity must be 1 or more


12V DC 1/3 HP Reversible (1" Hose Dia. x 75')

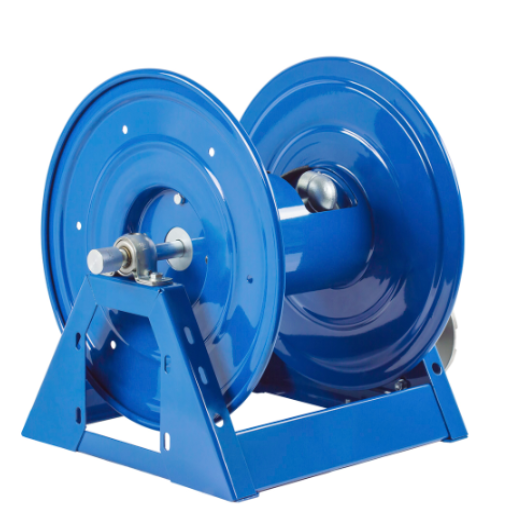

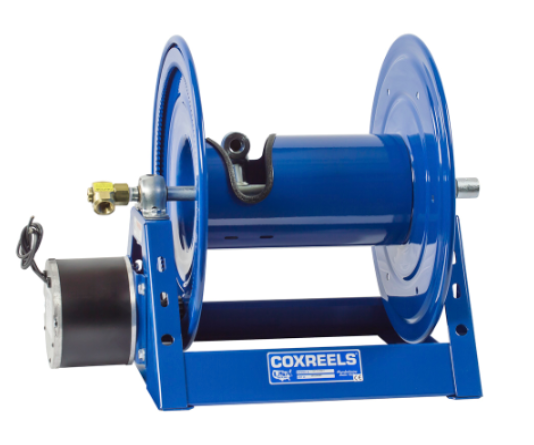

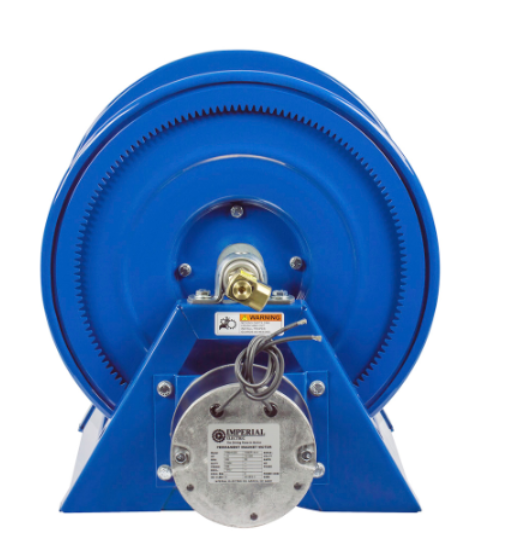

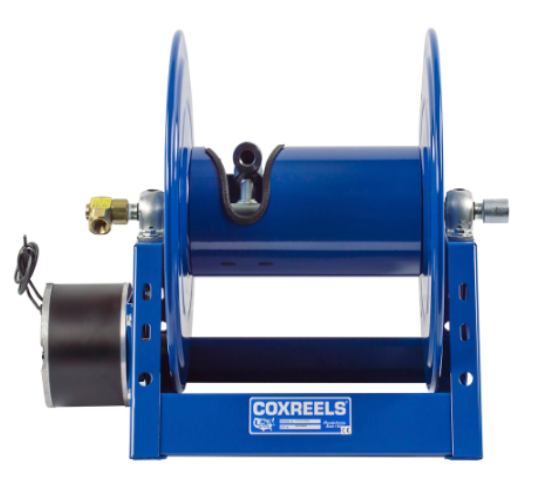

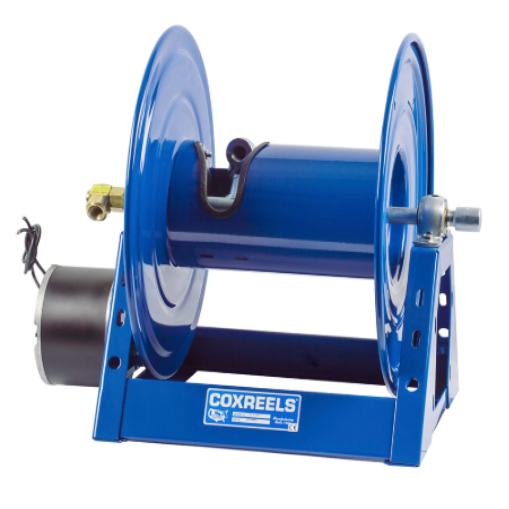

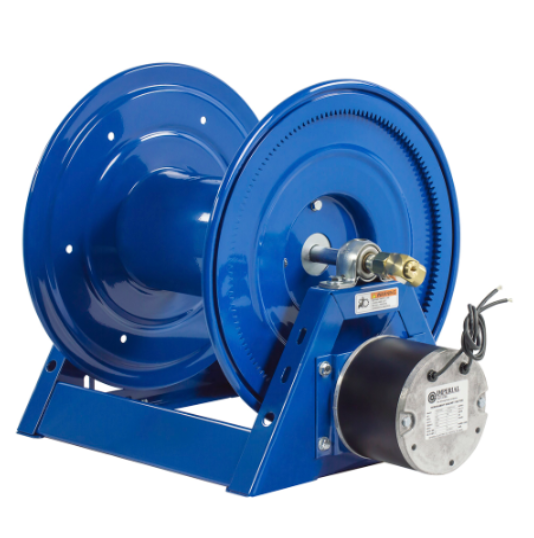

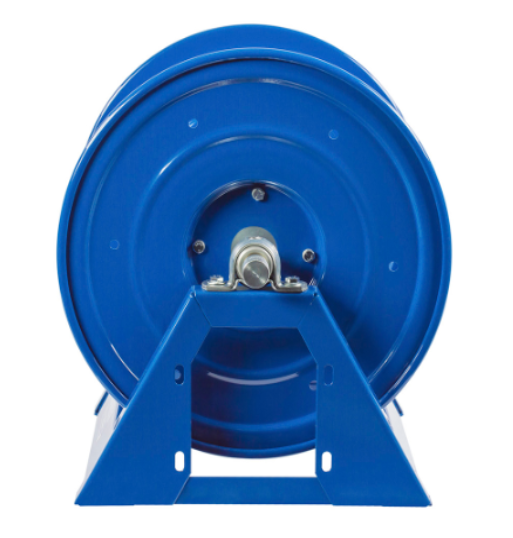

COXREELS® 1125 Series motorized hose reels have the features demanded by industry professionals. The industry preferred design features a sturdy one-piece all-welded "A" frame base, low profile outlet riser, and open drum slot design provides a non-crimping, flat smooth hose wrap.

SWIVEL

  • Machined solid brass 90º full-flow NPT swivel.
  • Nickel-plated steel swivel on 1" models
  • Swivel Seals: Nitrile
  • Swivel Seals: AFLAS on 1" models

DESIGN & STRUCTURE

  • All welded steel “A” frame construction for superior reel structure
  • Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap.
  • Permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation.
  • Long-handled locking pin to secure reel from rotation during transport or storage.
  • Adjustable tension brake to prevent “free-wheeling” during operation

RETRACT

  • Reliable direct gear drive on motor-driven models providing quiet & smooth retraction - No chain.
  • Solid steel direct hand crank with smooth round handle.
  • See Motor Options Chart.

SIGNATURE FEATURES

  • Professional grade heavy-duty steel construction.
  • Rolled edges & ribbed discs provide strength & safety.
  • Leading 2-year manufacturer's limited warranty.
  • Made in the U.S.A. - Sold & Supported Worldwide.
  • SWIVEL - Electroless nickel-plated steel 90 full-flow NPT swivel inlet.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
  • OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provide a non-crimping, flat smooth hose wrap.
  • "A" FRAME - Sturdy one-piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
  • PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
  • OTHER FEATURES INCLUDE - long-lasting, chip-resistant and rust inhibiting CPC powder coat finish, and reliable direct gear drive for smooth & quiet retraction - NO CHAIN. Motor options available in air, electric, and hydraulic.
I.D 1"
O.D 1 7/16"
LENGTH 75'
HOSE No
MAX PSI 3000
SHIP WEIGHT (LBS) 75
OVERALL DIMENSIONS (W) (H) (L) 26.38"(W) 19.13"(H) 17.63"(L)
MOUNTING PATTERN (M) (N)  27.38"(M) 10"(N)
BASE (X) (Y)  27.38"(X) 16"(Y)

;
