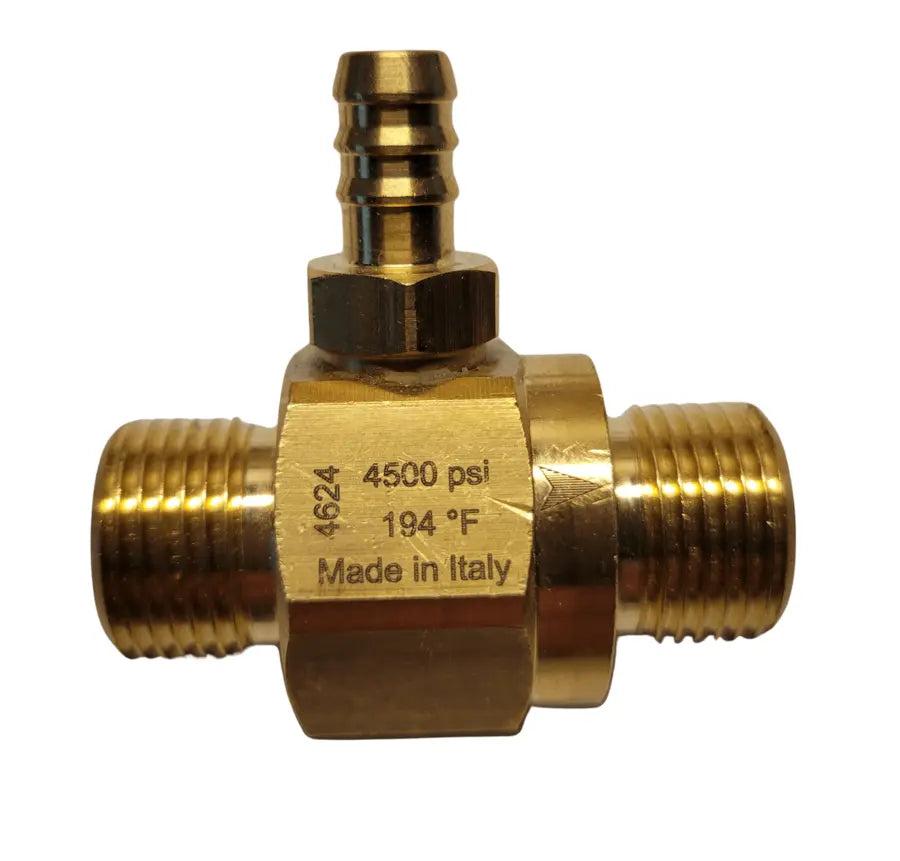

MTM 22.0351 Chem Inj 3/8, High Draw, Fixed 1.8mm

MTM 22.0351 Chem Inj 3/8, High Draw, Fixed 1.8mm

Regular price
$12.79
Sale price
$12.79
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Shipping times may vary contact us for more information
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

Fixed Chemical injectors have been developed to allow downstream injection of chemicals. Downstream refers to 'after the pump and unloader' where the injector creates a Venturi effect (vacuum through the chemical hose) when used in conjunction with a low-pressure nozzle. Our Italian made, High-draw commercial injectors allow up to a 20% draw rate.

You may size your chemical injector using the GPM chart below, but keep in mind that chemical draw will typically increase when using an injector with a smaller orifice. The tradeoff for using a smaller orifice is a reduction in PSI. Many “soft washers” use small orifice injectors to allow for stronger chemical percentages, as well as the ability to facilitate longer runs of hose.

  • 1.6 orifice: 2.1 to 3.2gpm
  • 1.8 orifice: 3.2 to 4.2gpm
  • 2.1 orifice: 4.2 to 5.5gpm
  • 2.3 orifice: 5.5 to 6.6gpm

This model is a Fixed version with Stainless Steel ball and seat.

3/8" Male NPT Inlet x 3/8" Male NPT Outlet

Max - 300° F
