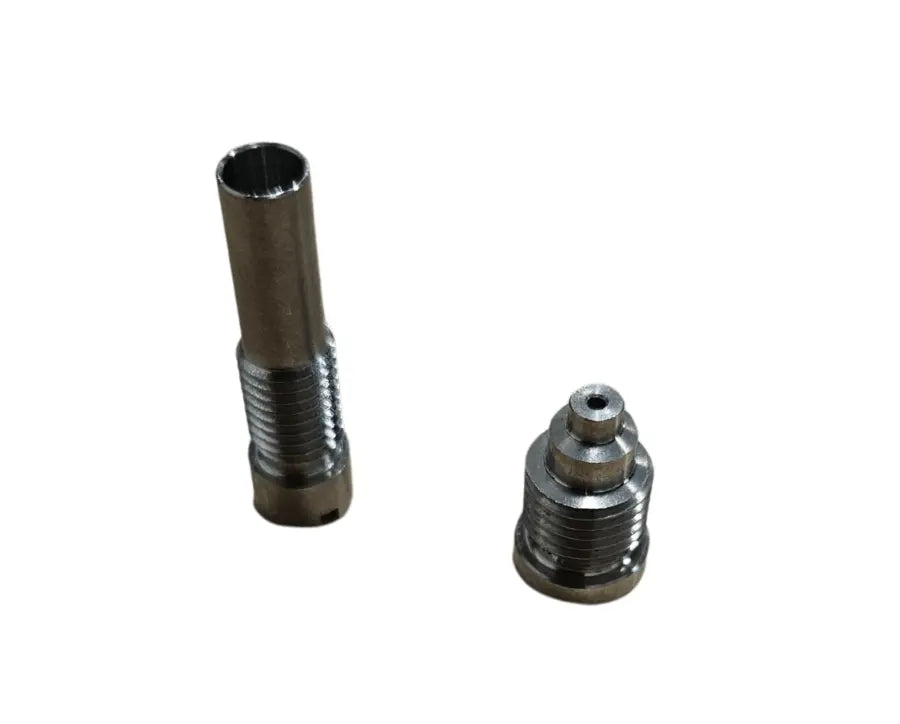

3.0 Orifice Kit for AIS35 Foam Injector, Stainless Steel, 1.8 to 4.25 GPM, Nozzle and Venturi Included

This orifice kit is to be used in conjunction with the AIS35 Injector(22.0330) 2.5mm orifice Suitable for 1.8 to 4.25 GPM Recommended FH Foam Head Nozzle Range: 5.0, 5.5, 6.0 Stainless Steel 4500PSI 320F Sizing - AIS35 INJECTOR Select orifice kit number based on current nozzle size. Nozzle A and Venturi B are both included in the Orifice Kit. Foam Head (FH) Nozzle sizes can be selected from the chart below Nozzle Size Orifice Kit # Recommended FH Range 2.5 16.4000 4.0/4.5/5.0 3.0 16.4001 4.0/5.5/6.0 3.5 16.4002 5.5/6.0/6.5 4.0 16.4015 6.5/7.0 4.5 16.4016 7.0/7.5/8.0 5.5 16.4017 7.5/8.0 6.0 16.4018 10.0/11.0/12.0/15.0 7.0 16.4019 10.0/11.0/12.0/15.0 8.0 16.4020 15.0/20.0 Move up one size if exact nozzle size is not shown in the above chart. Components required for AIS35 Injector assembly: AIS Adjustable Injector Body #22.0330 Orifice Kit (shown above) Foam Head #16.7049, #16.7050 Foam Head Nozzle #16.4003 through #16.4014 Foam Head Adaptor #24.5028

Part number: 16.4001. Questions about fit or sizing? Call (888) 714-1410.
