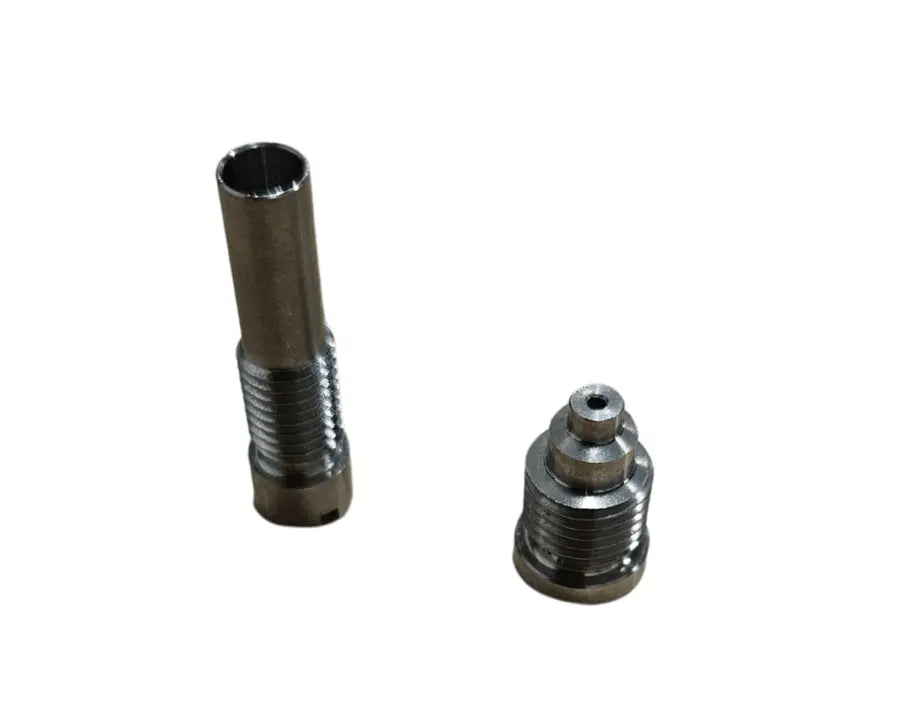

3.5 Orifice Kit for AIS35 Foam Injector, Stainless Steel, 2.1 to 5 GPM, Nozzle and Venturi Included

This orifice kit is to be used in conjunction with the AIS35 Injector(22.0330) 3.5 Orifice Suitable for 2.1 to 5 GPM Recommended FH Foam Head Nozzle Range: 5.5, 6.0, 6.5 Stainless Steel 4500PSI 320F Sizing - AIS35 INJECTOR Select orifice kit number based on current nozzle size. Nozzle A and Venturi B are both included in the Orifice Kit. Foam Head (FH) Nozzle sizes can be selected from the chart below Nozzle Size Orifice Kit # Recommended FH Range 2.5 16.4000 4.0/4.5/5.0 3.0 16.4001 4.0/5.5/6.0 3.5 16.4002 5.5/6.0/6.5 4.0 16.4015 6.5/7.0 4.5 16.4016 7.0/7.5/8.0 5.5 16.4017 7.5/8.0 6.0 16.4018 10.0/11.0/12.0/15.0 7.0 16.4019 10.0/11.0/12.0/15.0 8.0 16.4020 15.0/20.0 Move up one size if exact nozzle size is not shown in the above chart. Components required for AIS35 Injector assembly: AIS Adjustable Injector Body #22.0330 Orifice Kit (shown above) Foam Head #16.7049, #16.7050 Foam Head Nozzle #16.4003 through #16.4014 Foam Head Adaptor #24.5028

Part number: 16.4002. Questions about fit or sizing? Call (888) 714-1410.
