PIG® Frameless Storm Drain Filter for Small Drains
PIG® Frameless Storm Drain Filter for Small Drains
PIG® Frameless Storm Drain Filter for Small Drains
PIG® Frameless Storm Drain Filter for Small Drains
PIG® Frameless Storm Drain Filter for Small Drains
PIG® Frameless Storm Drain Filter for Small Drains
PIG® Frameless Storm Drain Filter for Small Drains
PIG® Frameless Storm Drain Filter for Small Drains

PIG® Frameless Storm Drain Filter for Small Drains

Regular price
$84.16
Sale price
$84.16
Quantity must be 1 or more

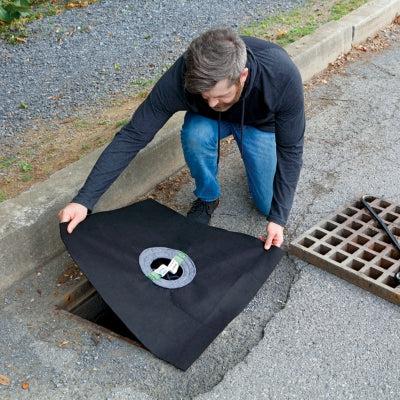

Catch basin insert protects small drains in high-traffic areas while filtering oil, sediment, debris and trash from stormwater runoff.

  • Designed for superior filtration and easy handling
  • Frameless design is ideal for small drains of any shape that don't work with our Adjustable Frame Storm Drain Filter or Catch Basin Insert Filtration System
  • Heavy-duty, high-visibility strap allows easier handling and removal
  • Treats more water and removes more oil than basic storm drain filters; accumulation pocket fits shallow drains to hold sediment, debris and trash
  • Four-stage filtration: PET construction removes contaminants from stormwater at multiple stages, increasing the amount of pollutants captured
  • Stormwater flows through drain grate onto fabric shelf (Stage 1), passes over filter ring (Stage 2) into collection bag (Stage 3) and over four sets of filter strips (Stage 4)
  • Patented filter ring channels water to center of collection bag to prevent untreated water from escaping through overflow ports
  • Filter strips float freely like tentacles to remove hydrocarbons as water moves through collection bag
  • Overflow ports help prevent blockage during high water flow
  • Affordably priced so you can protect more drains at your facility; no need to pick and choose which ones you can afford to safeguard
  • Fits circular drain sizes 9" to 20" in diameter
  • Fits irregular, rectangular and square drain sizes 9" to 20" width to 9" to 20" length
  • Trim to allow 3" of material to extend above grate
  • Pore size is 0.074 mm, 74 microns, 0.0029 inches or 200 sieve
Get the stuff you use most, right when you need it, shipped automatically.
Style Inside the Drain
Use With Storm Drains 9" to 20" W & 9" to 20" L; Round Drains 9" to 20" Dia.
Dimensions 26" W x 26" L x 10" H
Absorbency Up to .5 gal.
Application Disposable
Color Black
Brand PIG
Drain Shape Round; Square; Rectangular
Max Flow Rate 200 gal./Minute
Opening Dimensions 10" Dia.
Special Feature Trim to Fit
Substance Filtered Oil; Fuels; Sediment; Floatables
UV Resistant Yes
Sold as 1 each
Weight .57 lbs.
Composition Insert Strips and Ring: PET
Straps: PET
UNSPSC 47101514
Pigalog® Page Number Page 171

;
