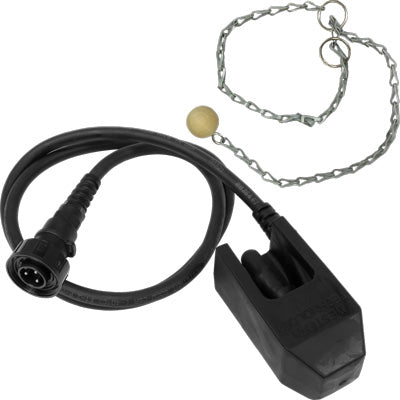

Pirate Brand 40-243 Electric Sealed Remote Control Switch W/ Ball & Chain, 3 Prong Sealed Waterproof Connector (Appropriate For Use With Steel Abrasives)

Pirate Brand 40-243 Electric Sealed Remote Control Switch W/ Ball & Chain, 3 Prong Sealed Waterproof Connector (Appropriate For Use With Steel Abrasives), an aftermarket replacement part made by Forecast Sales to fit Schmidt Manufacturing (Axxiom), Key abrasive blasting equipment.

Specifications

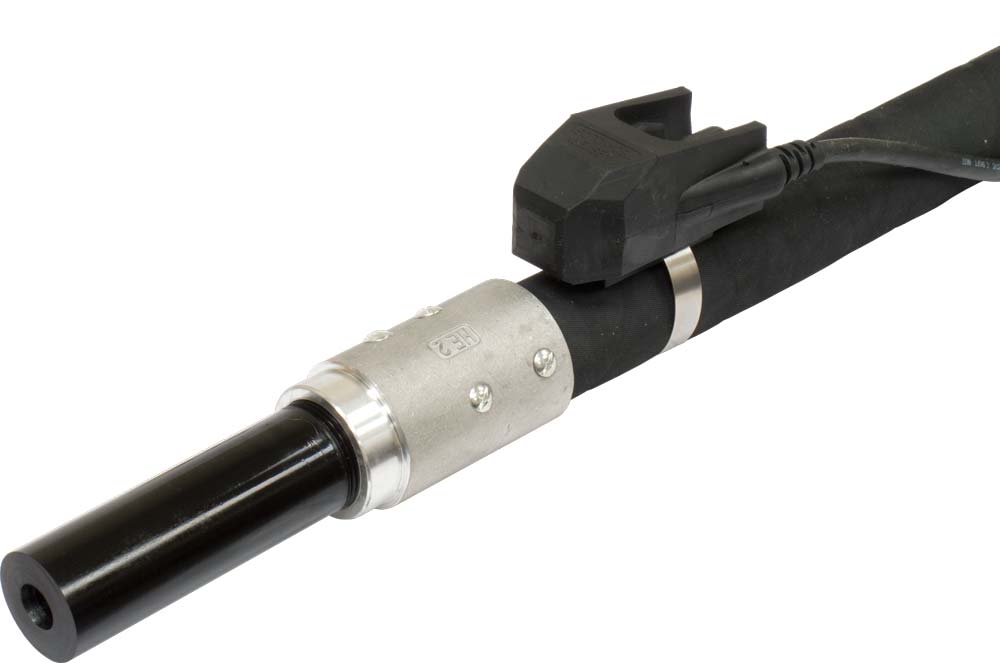

THIS PRODUCT FEATURES A BALL AND CHAIN DESIGN SO THAT IF THE OPERATOR DROPS THE BLAST HOSE, THE BALL THAT IS CHAINED TO THEIR WRIST DISENGAGES THE CONTROL HANDLE WARNING! WHEN USING THIS CONTROL HANDLE, THE CHAIN MUST BE SECURED AROUND THE OPERATORS WRIST. IT IS UNSAFE TO USE THIS CONTROL HANDLE WITHOUT THE BALL & CHAIN SEALED WATERPROOF CONNECTORS LINK TOGETHER TO PRODUCE A TIGHT SEAL PREVENTING ABRASIVES FROM INTERFERING/SHORTING CONNECTION. PROPER REMOTE CONTROL ATTACHMENT INSTRUCTIONS ATTACH THE REMOTE CONTROL HANDLE TO THE BLAST HOSE NEAR THE NOZZLE WITH HOSE CLAMPS OR HEAVY WIRE TIES. FORM A LOOP OF TWINLINE/CONTROL CORD THAT COMES 6" AWAY FROM THE BLAST HOSE, RUNS 6" PARALLEL TO THE BLAST HOSE, AND COMES 6" BACK TO THE BLAST HOSE. USING DUCT TAPE, ATTACH THE TWINLINE/CONTROL CORD TO THE BLAST HOSE WHERE THE LOOP ENDS BY WRAPPING THE TAPE AROUND THE TWINLINE/CONTROL CORD TWICE AND THEN AROUND THE BLAST HOSE. THIS CREATES A STRAIN-RELIEF ATTACHMENT AND IS ONLY NECESSARY ON THE FIRST CONNECTION NEAR THE CONTROL HANDLE. STARTING FROM THE NOZZLE END OF THE BLAST HOSE, ATTACH THE TWINLINE/CONTROL CORD TO THE BLAST HOSE BY WRAPPING DUCT TAPE AROUND BOTH EVERY 3 FEET.

Not sure it fits? Call 888-714-1410 with your machine model and the number on your old part and we'll confirm it.
