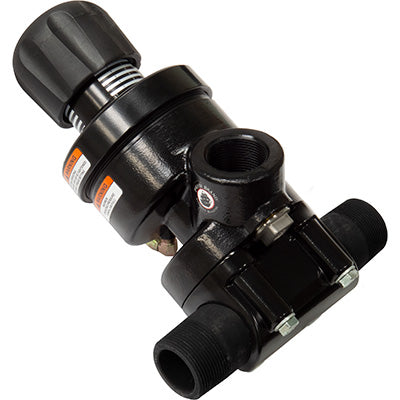

Pirate Brand 888-2148-008PB APV II Abrasive Metering Valve, 1-1/2", Solid Tungsten Carbide Sleeve, 1-1/4" NPT Blast Pot Connection, 1-1/2" Male NPT X 1-1/2" Male NPT Nipple, an aftermarket replacement part made by Forecast Sales to fit Schmidt Manufacturing (Axxiom) abrasive blasting equipment.
Replaces / cross-references
- Schmidt (Axxiom) 2152-008
Specifications
| Pirate Brand part number | 888-2148-008PB |
| Fits | Schmidt Manufacturing (Axxiom) |
| Used in | Plunger Valve II - Automatic (Apvii) |
| Weight | 13.4 lb. (6.078 kg.) |
ABRASIVE ADJUSTMENT INDICATOR (AAI) ALLOWS YOU A VISUAL METHOD OF ADJUSTMENT HEXAGON CAST INTO VALVE FOR EASE OF ASSEMBLY AND DISASSEMBLY BREATHER HOLE RELOCATED AND FILTER ADDED TO PREVENT ABRASIVE DUST FROM ENTERING CHAMBER INCREASED SPRING FORCE FOR QUICKER ACTUATION WHICH IMPROVES SEAL AND SEAT LIFE IMPROVED PISTON AND SEAL DESIGN TO INCREASE RELIABILITY AND ENSURE SMOOTH PISTON TRAVEL SOLID MACHINED TUNGSTEN CARBIDE/STAINLESS PLUNGER PROVIDES FAR SUPERIOR WEAR RATES 100% CONSISTENT TOLERANCES, AND CORROSION RESISTANCES CLEAN OUT PORT 1" NPT W/ STAINLESS PLUG QUADRUPLE URETHANE PLUNGER SEAL ARRANGEMENT SOLVES THE AIR & ABRASIVE CARRY OVER PROBLEM AS WELL AS THE PLUNGER AND SLEEVE JAMMING PROBLEM NORMALLY ASSOCIATED WITH REGULATED LOW PRESSURE BLASTING APPLICATIONS AND/OR THE USE OF STEEL ABRASIVE SOLID MACHINED TUNGSTEN CARBIDE SLEEVE PROVIDES FAR SUPERIOR WEAR RATES AND 100% CONSISTENT TOLERANCES PLUNGER SEAL DESIGN IMPROVED FOR BETTER SEALING AND LONGER LIFE ALL PIPE NIPPLES ARE HARDENED TO 55 HRC FOR EXTENDED SERVICE LIFE DIE CAST ALUMINUM PARTS ARE ANODIZED AND POWDER COATED FOR A CORROSION RESISTANT AND DURABLE FINISH REQUIRES 90 PSI SIGNAL LINE PRESSURE FOR FULL OPEN OPERATION ! APVII COMPONENTS ARE NOT INTERCHANGEABLE WITH SCHMIDT® THOMPSON VALVE II WITH THE EXCEPTION OF THE 2014-300 VENT AND 2148-000-04 PISTON SEAL.
Manufacturer documents
Not sure it fits? Call 888-714-1410 with your machine model and the number on your old part and we'll confirm it.
