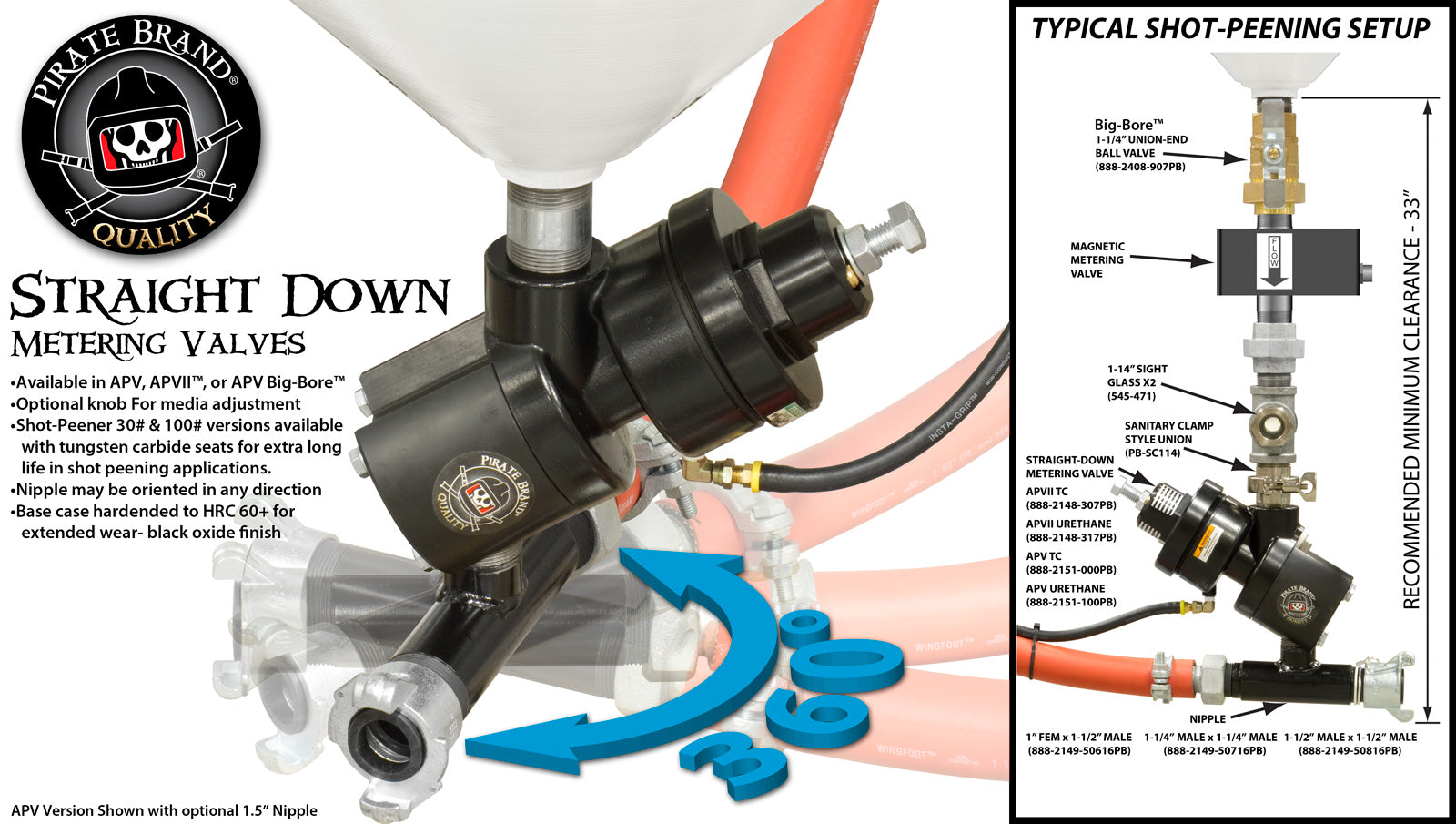

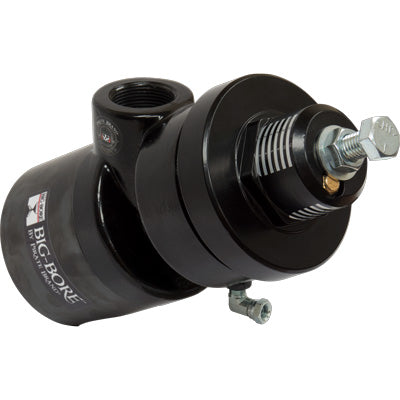

Pirate Brand 888-2151-200PB APV Big-Bore™ Straight-Down Metering Valve W/ Tungsten Carbide Sleeve (Pipe Nipple Not Included), an aftermarket replacement part made by Forecast Sales to fit Schmidt Manufacturing (Axxiom) abrasive blasting equipment.
Replaces / cross-references
- Schmidt (Axxiom) 2151-200
Specifications
| Pirate Brand part number | 888-2151-200PB |
| Fits | Schmidt Manufacturing (Axxiom) |
| Used in | Big-Bore™ Straight-Down & Shot-Peener 100# Metering Valves |
| Weight | 18 lb. (8.165 kg.) |
A MUST FOR BLASTING WITH #8, #10 & #12 NOZZLES OR SPIN BLASTERS WITH 5/16" AND LARGER NOZZLES IF YOU ARE UPGRADING YOUR BLAST POT WITH THE BIG-BORE™ METERING VALVE, YOU SHOULD ALSO UPGRADE YOUR AUTOMATIC AIR VALVE TO A BIG-GUN™ FULL FLOW VERSION AND BIG-BORE™ UNION END BALL VALVE (SEE COMMONLY PURCHASED WITH COMPONENTS BELOW) STRAIGHT-DOWN BASE CASE HARDENED TO HRC 60+ FOR LONG LIFE STRAIGHT-DOWN BASE FEATURES A BLACK OXIDE FINISH USES A BOLT-STOP FOR SEMI-TAMPER PROOF METERING SETTING NIPPLE (PURCHASED SEPARATELY) CAN BE ANGLED IN ANY DIRECTION FOR TIGHT FITS OR CUSTOM APPLICATIONS
Manufacturer documents
Not sure it fits? Call 888-714-1410 with your machine model and the number on your old part and we'll confirm it.
