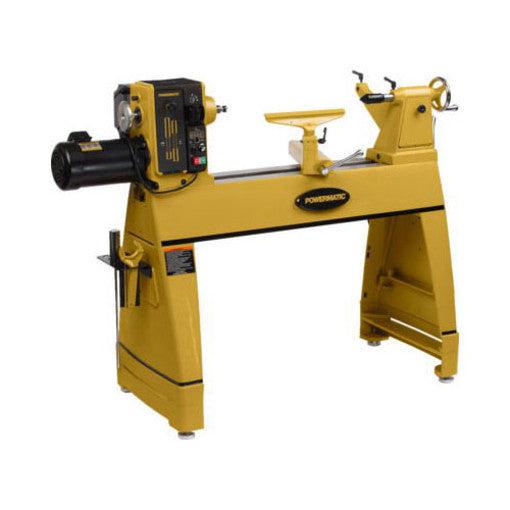

Powermatic - 3520C Lathe, 2 HP 230V

Powermatic - 3520C Lathe, 2 HP 230V

Regular price
$5,299.99

See Lower Price in Cart

Quantity must be 1 or more


Details

    Powermatic 1353001 Description

    The Powermatic® 3520C is the fourth evolution of the time honored lathe with many new and improved features. The 3520C has retained all the features of the prior models such as the sliding headstock, electronic variable speed with low and high speed ranges, the spindle lock, digital RPM readout, and a laser etched quill that is self-ejecting.  The enhanced features include a movable control box for maximum versatility, adjustable riser blocks for 6 inches or more of height adjustment, and an increased weight of 705 LBS (786 LBS with the bed extension).

    Additional features include a new ergonomic spindle lock design, a digital indexing readout, an Anti-rotation tailstock key for smoother operation, a set of dead centers which hold a spindle for visual comparison, a two position mount for the optional bed extension, and a sliding hammer knockout rod with brass tip.

    Powermatic 1353001 Features

    • Moveable control box for customizable versatility
    • Main power disconnect switch located on rear of headstock
    • Self-locating ergonomic spindle lock design for easy, one handed operation
    • Upgraded banjo features a non-marring, pinch style clamp for solid tool rest placement
    • Extended spindle nose increased access to the work piece
    • Adjustable Risers Blocks for 6-inches of height adjustment allowing maximum comfort when turning
    • Tailstock incorporates Anti-rotation key and Acme threads for smoother operation and increased longevity
    • Digital Indexing Readout simplifies the indexing process for added precision
    • Fully enclosed VFD for increased user protection
    • Able to maintain speeds as low as 15 RPM

    Powermatic 1353001 Specifications

    Motor Phase 3
    Speed Range 15-3200
    Spindle Threads 1-1/4 x 8 (In. x TPI)
    Centerline of Spindle to Floor 40-5/8" without risers
    Spindle Bore 5/8"
    Headstock Movement Full Length of Bed
    Wiring Remarks Single Phase ONLY
    Prewired Voltage 230 Only
    Spindle Taper MT-2
    Number of Indexing Positions 48
    Swing Over Tool Rest Base 15-3/4"
    Motor Power 2 HP
    Outboard Turning Yes
    Distance Between Centers 36" with dual bearing center
    Motor Current 6.2 Amps
    Spindle Speeds Low 15-1200 / High 40-3200
    Ram Travel Quill Travel 4-1/2"
    Bed Construction Cast Iron
    Recommended Circuit Size 20 Amps
    Tailstock Bore 3/8"
    Swing Over Bed 20"
    Bed Gap 2-1/2"

    ;
