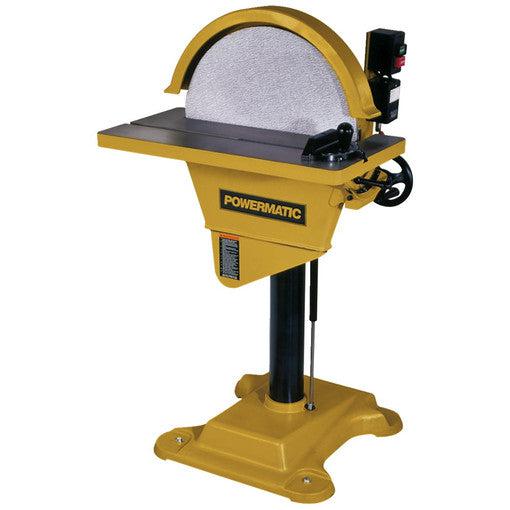

Powermatic - DS-20, 20" Disc Sander, 3HP 3PH 230/460V

Powermatic - DS-20, 20" Disc Sander, 3HP 3PH 230/460V

Regular price
$3,399.99

See Lower Price in Cart

Quantity must be 1 or more


Details

    Powermatic 1791264 Description

    The DS20 20" Disc Sander is ideal for the professional or serious home woodworking shop. It has direct drive from motor to disc for maximum efficiency, with a hand activated brake for quick stoppage of disc. The DS20 sander has an extra large sanding surface, adjustable tilting work table, and sturdy cast iron base. The swing away guard makes changing abrasive discs quick and easy.

    Powermatic 1791264 Features

    • Forward/reverse switch
    • Direct drive from motor to disc for maximum efficiency
    • Tilting table allows bevel sanding
    • Miter gauge for angle sanding
    • 20" sanding disc for larger workpieces
    • 4" port for connection to any dust collection system

    Powermatic 1791264 Specifications

    Disc Diameter (In.) 20
    Dust Collection Minimum CFM Required (CFM) 600
    Style (Type) Disc
    Dust Port Outside Diameter (In.) 4
    Disc Table Size (L x W) (In.) 10-1/2 x 27-1/2
    Motor Phase 3
    Motor Power (HP) 3
    Motor Voltage (V.) 230/460
    Recommended Circuit Size (Amps.) 20/15
    Motor Current (Amps) 9.8/4.9
    Disc Speed (RPM) 1,720
    Prewired Voltage (V.) 230
    Disc Table Tilt (Deg.) 30 Up, 45 Down

    ;
