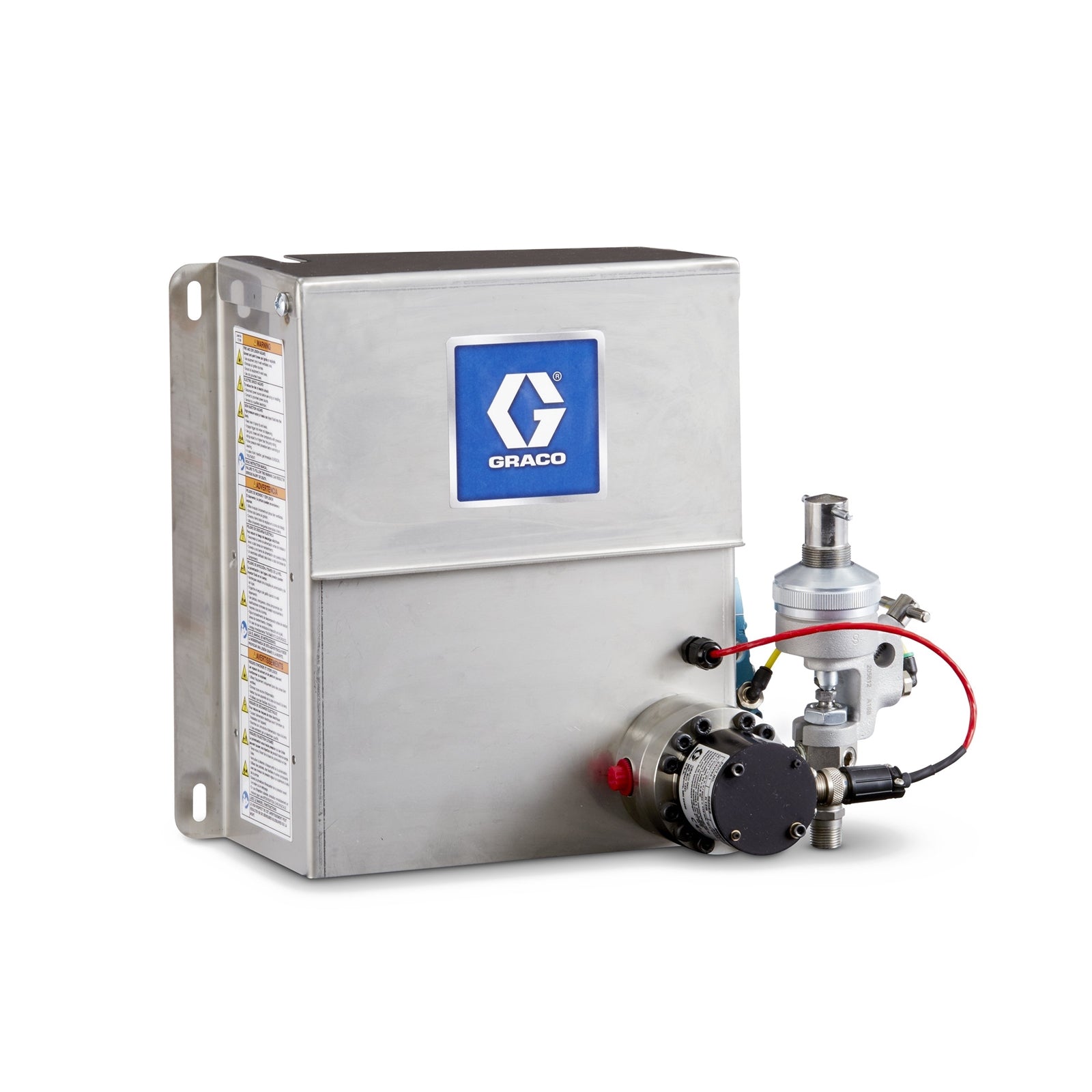

ProDispense Fluid Panel Kit, Grease/ Paint Meter, wide viscosity, high accuracy
ProDispense Fluid Panel Kit, Grease/ Paint Meter, wide viscosity, high accuracy

ProDispense Fluid Panel Kit, Grease/ Paint Meter, wide viscosity, high accuracy

Regular price
$12,100.00
Sale price
$12,100.00
Quantity must be 1 or more
Request a Quote / More Information

Our sales team typically responds within 1 business day.



Feel free to call or chat with us for recommendations.

📦 Ships in 2-3 weeks, shipping times may vary
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

This fluid panel kit for the ProDispense Electronic Preset Dispense System is ideal for grease and paint applications.

For grease and paint applications

    UPC Product: 00755652369738
    Family Code: FAMPDS
    Unit of Measure: EA
    Height: 17.5 IN   |  44.45 CM
    Length: 19.25 IN   |  48.895 CM
    Width: 38.735 CM   |  15.25 IN
    Volume: 2.973 FT3   |  .084 M3
    Chargeable Weight: 30.948 LBS  | 14.031 KG

    Technical Specifications

    For Use With G3000 流量计, G3000 メーター, G3000 meter, Medidor G3000, G3000 유량계
    Type Fluid Panel
    Weight (kg) 8.4
    Weight (lb) 18.5
    Air Inlet Size (in) 5/32
    Air Inlet Thread Gender Female
    Air Inlet Thread Type Push
    Fluid Inlet Size (in) 1/4
    Fluid Inlet Thread Gender Female
    Fluid Inlet Thread Type NPT
    Fluid Outlet Size (in) 3/8
    Fluid Outlet Thread Gender Male
    Fluid Outlet Thread Type NPT
    Maximum Air Pressure (bar) 7.03
    Maximum Air Pressure (kPa) 703
    Maximum Air Pressure (psi) 102
    Maximum Flow Rate (cc/min) 3800
    Maximum Flow Rate (GPM) 1
    Maximum Flow Rate (L/min) 3.8
    Minimum Flow Rate (GPM) 0.02
    Maximum Working Pressure (psi) 3000
    Maximum Working Pressure (bar) 207
    Model ProDispense
