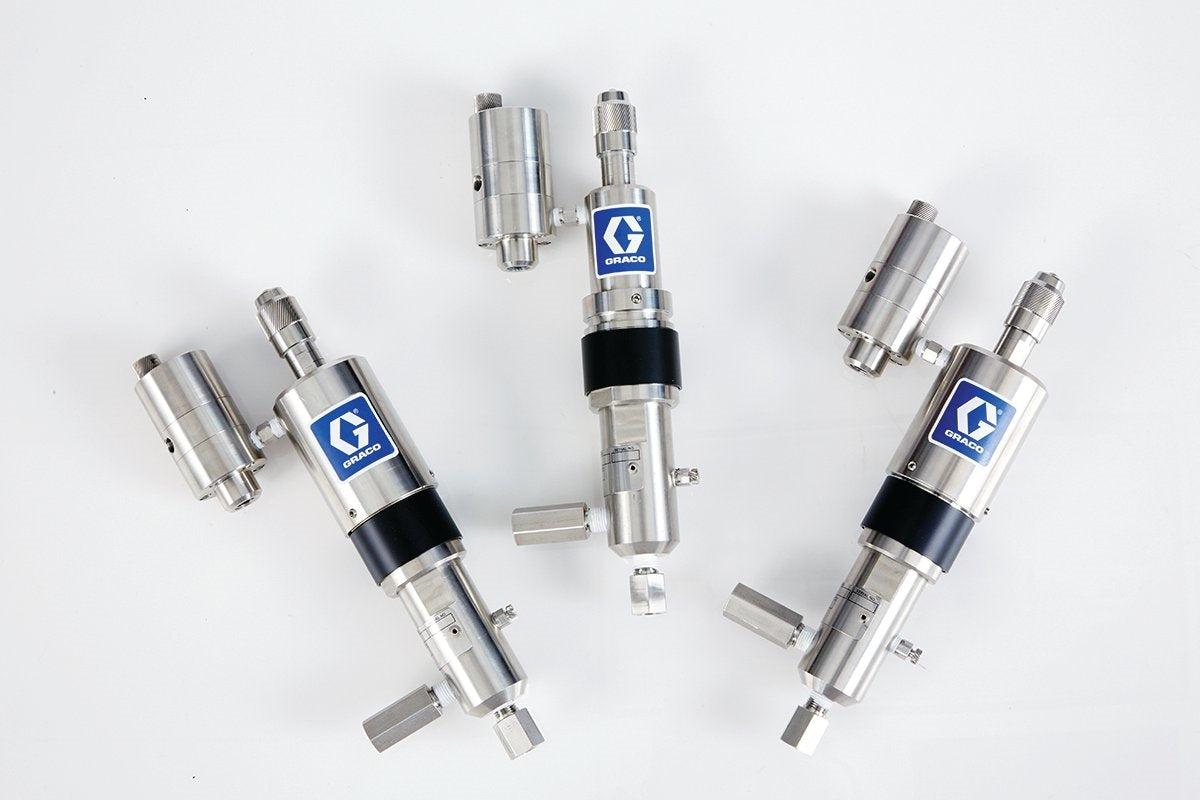

Python pumps are ideal for applications that require a pump to operate in hazardous locations and can run off regulated natural gas or compressed air. These pumps have the lowest out-of-pocket cost, are easy to operate and can use half the air consumption of many other pumps on the market. Plus, the Python’s extreme duty plungers, seals and timing valve are designed for years of operation before replacement.
-
Ease of serviceability
- Easy access to the pump plunger and packings
- Cartridge style seal in the timing valve for quick and easy repair
- Plunger packings can be replaced in 10 minutes or less
-
Highest technology timing valve on the market
- Low air/gas consumption for increased efficiency
- Pump cycle rate remains constant regardless of system back pressure
-
Standards
- CE and ATEX approved.
-
Robust and simple design
- Adjustable fluid packing can last up to 25 times longer than non-adjustable seals
- Pythons are offered with Chromex and Ceramic coated plungers
- 316 SST fluid section/wetted parts
- HNBR, FKM, FKM ETP, TFEP and FFKM plunger packings and check valve seals
- Proprietary poppet style check valve eliminates valve from sticking
UPC Product: 00755652283515
Family Code: FAMOPP
Unit of Measure: EA
Height:
5.5 IN
| 13.97 CM
Length:
17.25 IN
| 43.815 CM
Width:
7.25 IN
| 18.415 CM
Volume:
.398 FT3
| .011 M3
Chargeable Weight:
9 LBS
| 4.08 KG
Technical Specifications
| Type | Pneumatic Chemical Pump |
|---|---|
| Air Inlet Size (in) | 0.125 |
| Air Inlet Size (mm) | 3.175 |
| Compatible Material | Corrosion Inhibitors, Methanol, Scavengers |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (bar) | 13.79 |
| Maximum Air Inlet Pressure (kPa) | 1379 |
| Maximum Air Inlet Pressure (psi) | 200 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (GPD) | 73 |
| Maximum Working Pressure (bar) | 138 |
| Maximum Working Pressure (kPa) | 13800 |
| Maximum Working Pressure (psi) | 2000 |
| Model | Python |
| Seal Material | FKM |
| Wetted Material | Stainless Steel |
| Maximum Working Pressure (MPa) | 13.8 |
| Plunger Rod Coating | Chromex |
| Plunger Size (in) | 1/2 |
| Air Motor Size (in) | 1-1/4 |
| Approvals | CE |
