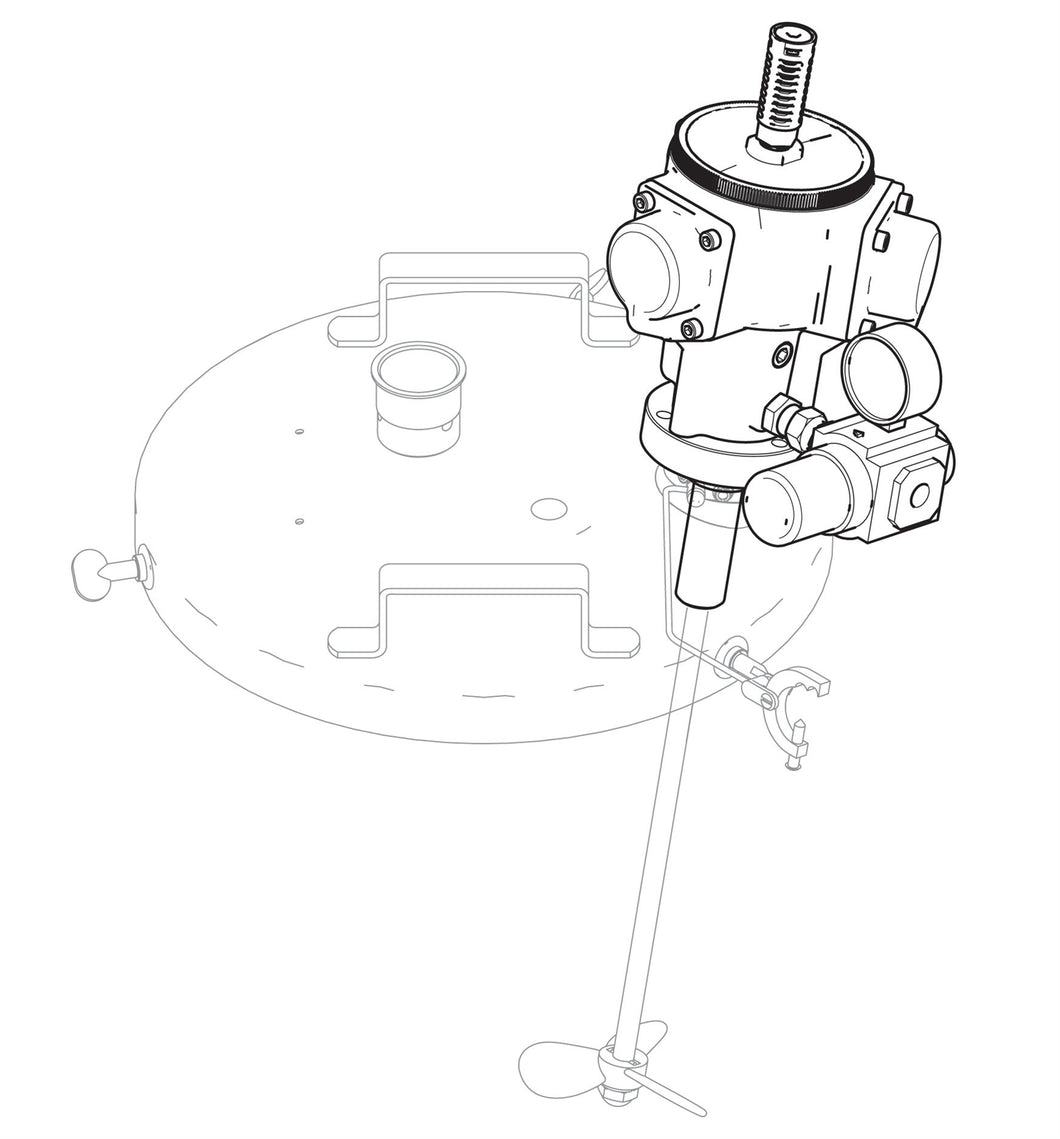

Radial Piston Air Motor Retrofit Kit for 5 gallon (18 L) or 10 gallon (38 L) pail agitators. Pail cover, agitator shaft and blade not included.

Radial Piston Air Motor Retrofit Kit for 5 gallon (18 L) or 10 gallon (38 L) pail agitators. Pail cover, agitator shaft and blade not included.

Regular price
$1,479.00
Sale price
$1,479.00
Quantity must be 1 or more


This kit makes it easy to replace an existing rotary vane motor on a 5 gallon (18 liter) or 10 gallon (38 L) pail agitator with a radial piston air motor.

For wood (top coat, primer) and general finishing applications

  • Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.
  • Air line lubrication not required
  • Easy to maintain and service
  • Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
  • Pail cover, agitator shaft and blade sold separately
UPC Product: 00769946032208
Family Code: FAMCNV
Unit of Measure: EA
Height: 8 IN   |  20.32 CM
Length: 14 IN   |  35.56 CM
Width: 28.575 CM   |  11.25 IN
Volume: .729 FT3   |  .021 M3
Chargeable Weight: 9 LBS  | 4.08 KG

Technical Specifications

Air Inlet Size (cm) 0.635
Air Inlet Size (in) 1/4
Air Inlet Size (mm) 6.35
Air Inlet Thread Type NPT
Maximum Air Inlet Pressure (bar) 5
Maximum Air Inlet Pressure (kPa) 500
Maximum Air Inlet Pressure (psi) 70
Maximum Speed (RPM) 150
Maximum Working Pressure (bar) 5
Maximum Working Pressure (kPa) 500
Maximum Working Pressure (psi) 70
Motor Type Pneumatic - Radial Piston
Type Conversion Kit

;
