Everyday Wheel Balancing for Cars and Light Trucks

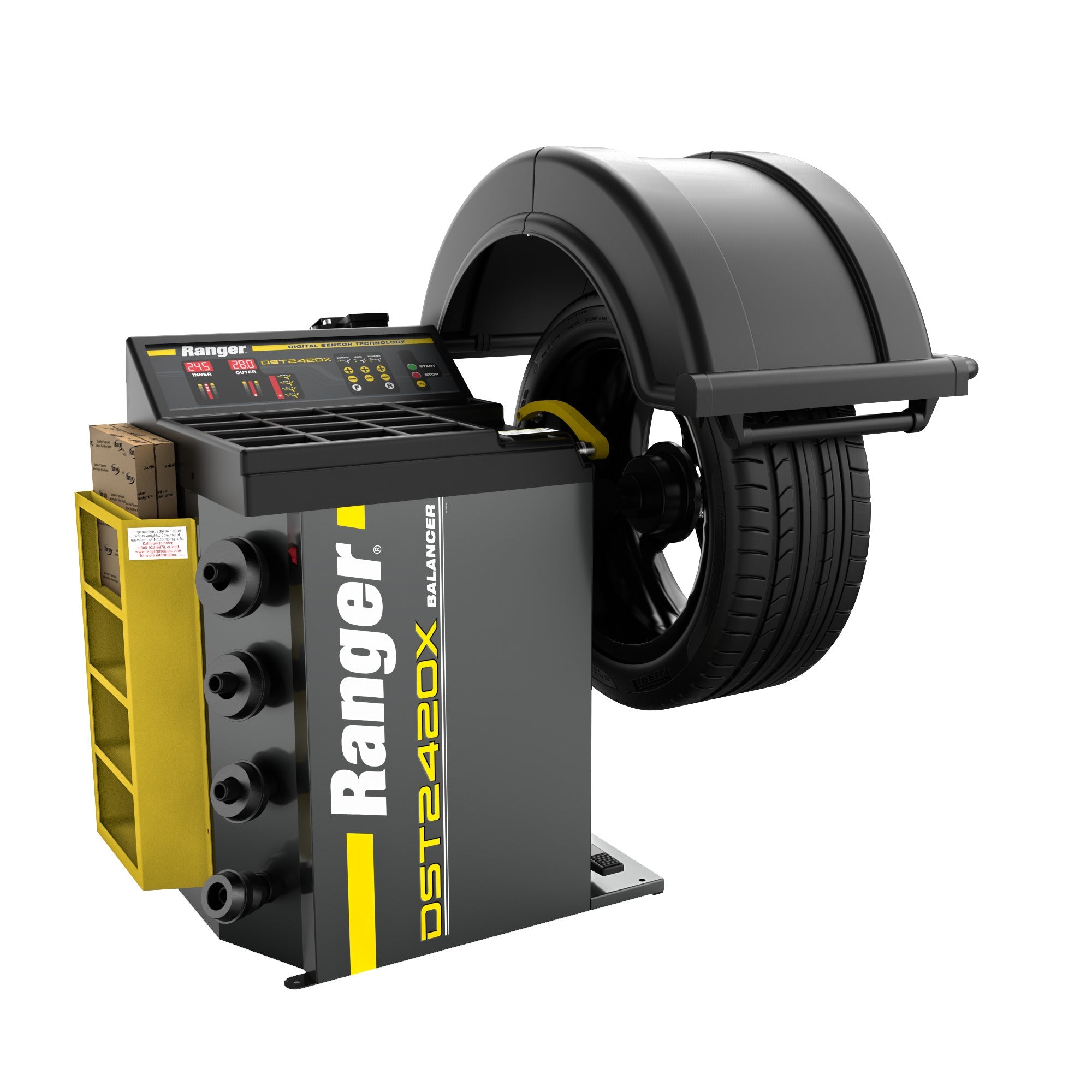

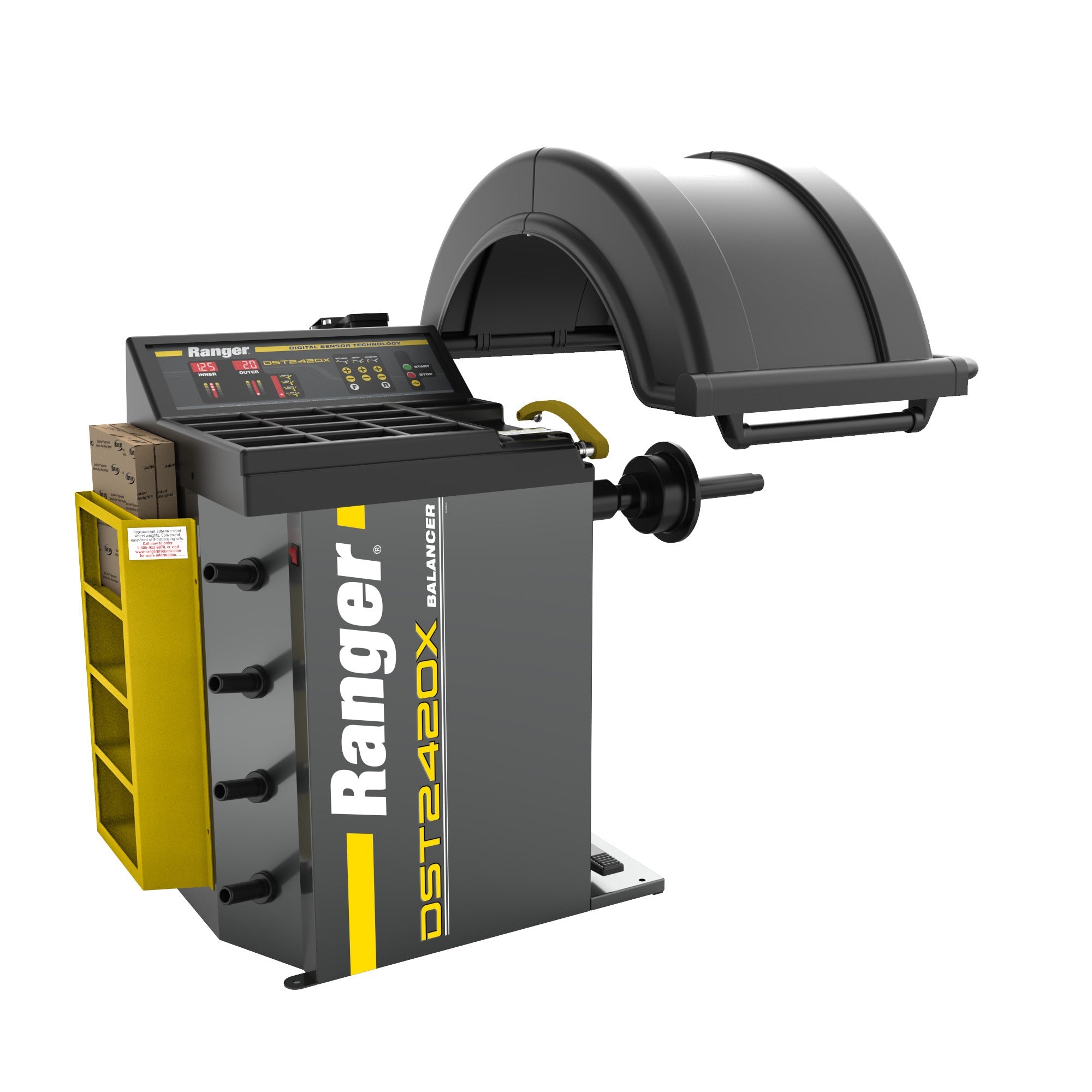

The Ranger DST2420X Passenger Car Wheel Balancer is built for shops that need reliable, accurate wheel balancing without unnecessary complexity. Based on the proven DST-2420 platform, this no-nonsense balancer handles wheels up to 30 inches in diameter and gives one-bay garages, tire shops, and high-volume service centers a dependable way to turn out smooth, vibration-free wheel assemblies day after day.
Its Digital Sensor Technology, Direct-Axis drive system, and 40 mm precision-machined shaft work together to deliver repeatable balancing accuracy measured in hundredths of an ounce. For shops that want solid daily performance, fast cycle times, and a practical footprint, the DST2420X is the straightforward choice in the Ranger wheel balancer lineup.
Digital Sensor Technology for Repeatable Accuracy
Ranger Digital Sensor Technology uses a 16-digit digital signal processor and single-chip circuit architecture to improve speed, accuracy, and consistency during wheel balancing. This system supports the more precise weight placement techniques required by modern OEM wheels, aftermarket wheels, and performance alloy configurations.
Multi-directional quartz piezoelectric load sensors measure longitudinal, transversal, and shear effects to detect wheel imbalance from multiple directions. Combined with the digital rotation encoder, this gives the DST2420X the sensitivity needed to help identify the exact amount and location of correction weight with confidence.
Fast Six-Second Cycles and Multiple Balancing Modes
The DST2420X automatically calculates the weight needed to achieve an optimal balance and uses bright LED indicators to show technicians where that weight should be placed. Dynamic, Static, and Performance Alloy settings help support a wide range of steel, OEM, and performance wheel applications with minimal setup time.
A rapid six-second balancing cycle, low-RPM operation, automatic braking, and manual or automatic start when the hood is lowered all help improve floor-to-floor speed. Multi-user presets, gram/ounce selection, millimeter/inch selection, and automatic round-off give shops more control without making the process feel complicated.
Shop-Friendly Storage, Setup, and Weight Placement
The DST2420X is designed to keep balancing tools, weights, and accessories close at hand. A high-volume top weight tray, side shelf storage, side cone storage pegs, and an open-top shelf for Ranger Quick-Peel adhesive tape weight rolls help technicians stay organized during repetitive balancing work.
A quick-release hub nut reduces setup time, while the side-position brake holds wheels at precisely 12 o'clock for accurate weight placement. For shops balancing truck and SUV tires, Ranger recommends the Truck Cone Kit 5150032 for expanded service capability.
Digital Sensor Technology
A 16-digit digital signal processor and single-chip architecture help improve balancing speed, accuracy, and repeatability. This gives shops reliable readings for everyday and performance wheel applications.
Six-Second Cycle Time
Low-RPM operation and a rapid six-second balancing cycle help move more wheels through the bay. It is built for shops that value speed without giving up precision.
Multiple Balance Modes
Dynamic, Static, and Performance Alloy settings support a wide range of OEM and aftermarket wheel configurations. Technicians can quickly select the right mode for the wheel in front of them.
40 mm Hardened Shaft
The precision-machined, hardened-steel 40 mm shaft supports repeatable clamping and stable balancing performance. It is a durable foundation for daily wheel service.

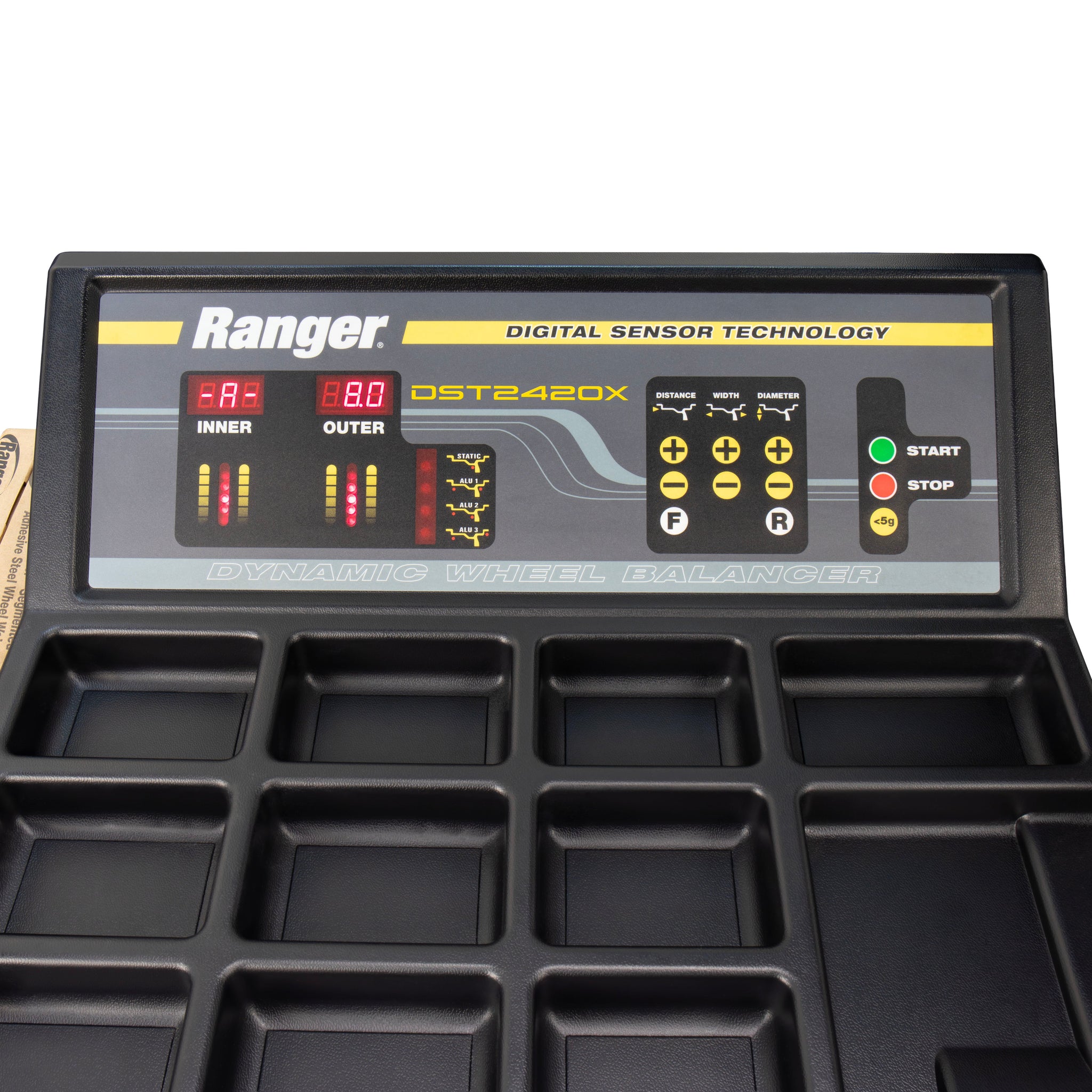

LED Weight Guidance
Bright visual indicators show the amount and placement location for wheel weights. Tiered indicators also help with hidden or behind-the-spoke weight placement.
Organized Work Area
A top weight tray, side shelf, cone storage pegs, and open-top adhesive weight roll storage help keep balancing accessories close. Less searching means faster wheel service.
Recommended Add-ons
Features
- Handles wheels up to 30 inches in diameter
- Digital Sensor Technology for accurate, repeatable readings
- 16-digit digital signal processor with single-chip architecture
- Multi-directional quartz piezoelectric load sensors
- Dynamic, Static, and Performance Alloy balancing settings
- Low-RPM balancing with rapid six-second cycle time
- Automatic braking for controlled weight placement
- Manual or automatic start when hood is lowered
- Gram/ounce and millimeter/inch selection
- Automatic round-off with top-dead-center weight position indicator
- Tiered indicators for split-weight and hidden behind-the-spoke placement
- Precision-machined, hardened-steel 40 mm shaft
- Quick-release hub nut for reduced setup time
- High-volume top tray and side shelf storage
- Truck Cone Kit 5150032 recommended for truck and SUV tires
Specifications
| Maximum Tire Diameter | 43 in |
| Maximum Wheel Weight | 145 lb |
| Wheel Diameter | 8 - 30 in |
| Wheel Width | 2 - 18 in |
| Balancing Modes | Dynamic / Static / Alloy / 1 Hidden |
| Balancing Increments | 0.25 oz (5 grams) |
| Accuracy | ± 0.035 oz (1 gram) |
| Resolution | 0.25 oz (5 grams) |
| Balancing Speed | 180 RPM |
| Wheel Braking | Automatic / Electronic Resistor |
| Average Cycle Time | 7 seconds |
| Shaft Size | 1.5 in |
| Voltage | 208-240V / 50/60 Hz / 1-Phase |
| Drive System | Belt Drive |
| Working Temperature | 23°F to 104°F (-5°C to 40°C) |
| Height, Guard Up | 65 in |
| Height, Guard Down | 52 in |
| Width | 52.5 in |
| Depth | 41 in |
| Shipping Dimensions | 30 x 38 x 46 in |
| Shipping Weight | 356 lb |
| Shipping Method | LTL |
| Offload Requirement | Liftgate |
Manuals & Downloads
- Ranger DST2420X Wheel Balancer 5140335 Sales Sheet
- Ranger DST2420X Wheel Balancer 5140334 Installation Operation Manual
- Ranger Limited Warranty All Products
