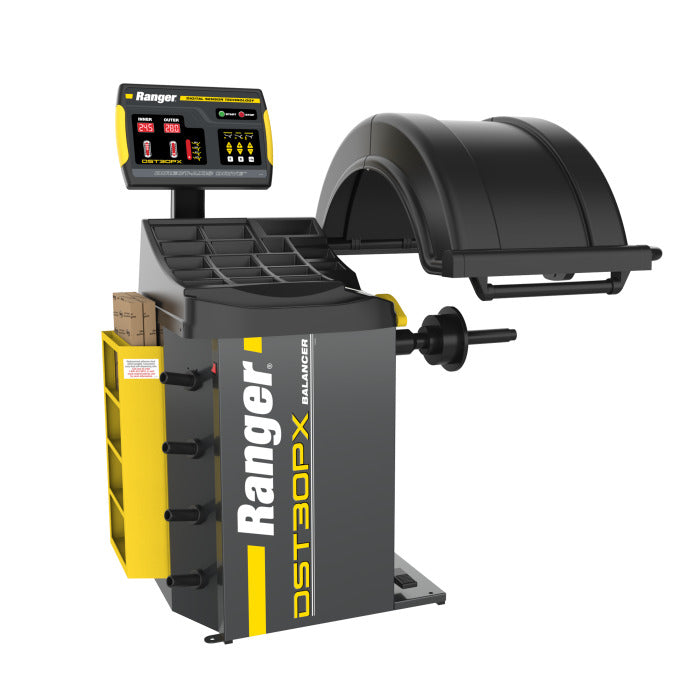

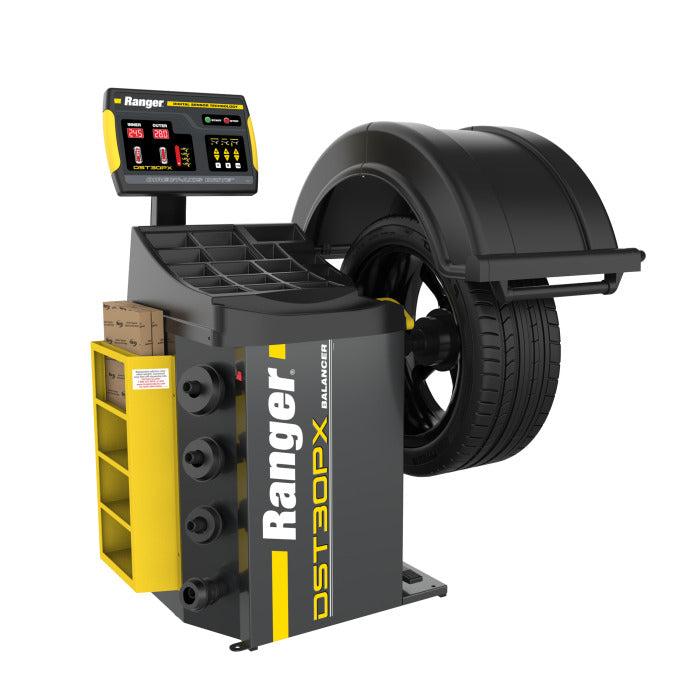

Ranger DST30PX Professional Wheel Balancer (5140334)

One-Spin Wheel Balancing with Professional Precision

The Ranger DST30PX Professional Wheel Balancer is the step-up choice for shops that want higher precision, faster workflow, and a more advanced measuring system without moving into a larger premium machine. Like the DST2420X, it supports wheels up to 30 inches in diameter, but adds a 64-tooth magnetic transducer encoder for finer rotary position sensing and more precise weight placement.

That makes the DST30PX a strong fit for tire shops, repair garages, and performance-focused service bays that regularly balance modern OEM wheels, aftermarket wheels, and larger tire assemblies. If the DST2420X is the dependable daily workhorse, the DST30PX is the smarter upgrade for shops that want more measuring resolution and more technician confidence with each spin.

64-Tooth Encoder for More Accurate Weight Placement

The defining advantage of the DST30PX is its 64-tooth magnetic transducer encoder. The larger encoder uses precision-cut square teeth to convert rotary position into a digital electronic signal, helping the machine achieve accurate profile readings and top-dead-center positioning for minimal, precise wheel weight placement.

This extra encoder resolution gives the DST30PX a clear advantage when balancing modern wheels that demand cleaner correction, smaller weight changes, and better placement accuracy. It is especially valuable for shops working with performance wheels, larger tires, and customers who will notice even minor vibration issues.

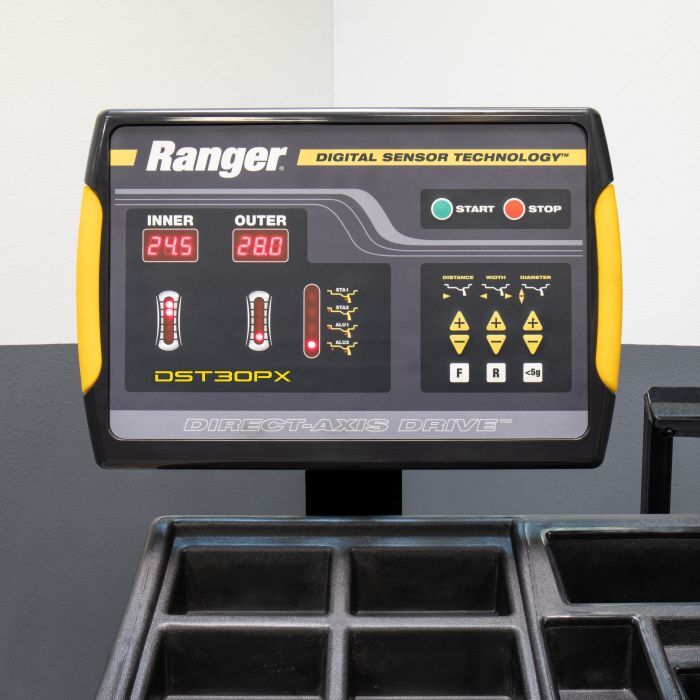

Digital Sensor Technology Built for Modern Wheels

The DST30PX uses Ranger Digital Sensor Technology with a 16-digit digital sensor processor, single-chip circuit architecture, and sophisticated balancing modes for OEM and performance wheel service. Dynamic, Static, and ALU balancing modes support dual-plane calibration and give technicians the flexibility to handle a wide variety of steel and alloy wheel designs.

Multi-directional quartz piezoelectric sensors detect longitudinal, transversal, and shear imbalance forces, while the Direct-Axis drive system helps keep operation smooth over years of service. The result is a compact professional wheel balancer that combines speed, precision, and long-term reliability in one shop-friendly package.

Fast Operation for High-Volume Tire Service

The DST30PX is built to reduce wasted motion during repetitive wheel service. Simple wheel data entry, precise rolling weight readings, automatic braking, manual or automatic hood-start operation, and a rapid cycle time help technicians balance more wheels with fewer errors and less guesswork.

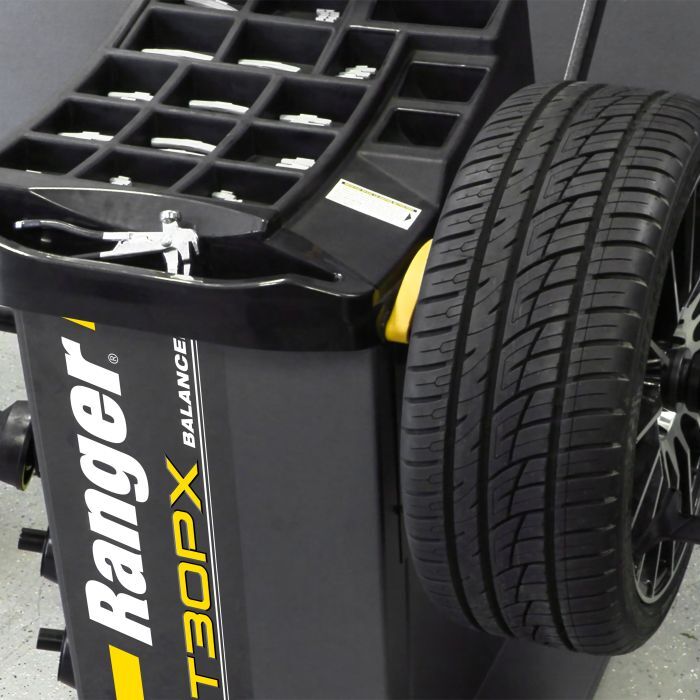

A rugged 40 mm shaft, quick-release hub nut, side-position brake, top-dead-center weight indicator, and tiered placement indicators all help speed up setup and correction. Onboard storage includes a high-volume top tray, side shelf, side cone pegs, and space for Ranger Quick-Peel adhesive tape weight rolls, keeping the workflow organized when the bay is busy.

64-Tooth Encoder

The magnetic transducer encoder gives the DST30PX finer position sensing than simpler balancers. That helps technicians place smaller, more accurate correction weights with confidence.

30-Inch Wheel Capacity

Handles wheels up to 30 inches in diameter for a wide range of passenger car, light truck, and performance applications. It is a practical size for busy mixed-service shops.

Fast Cycle Times

Rapid balancing cycles and automatic braking help reduce floor-to-floor time. The DST30PX is built for shops that need speed and repeatability during daily wheel service.

Digital Sensor Accuracy

A 16-digit processor and multi-directional quartz piezoelectric sensors help detect imbalance across multiple force directions. That means more useful readings and cleaner corrections.

40 mm Shaft Design

The rugged 40 mm shaft improves stiffness and supports modern heavier wheels with industry-standard cones and accessories. It is built for repeatable clamping and long service life.

Organized Technician Workflow

A top tray, side shelf, cone pegs, and adhesive tape weight roll storage keep tools and weights close. Faster setup matters when every wheel in the queue is waiting.

Recommended Add-ons

Features

• Handles wheels up to 30 inches in diameter
• 64-tooth magnetic transducer encoder for precise wheel position sensing
• Dynamic, Static, and Performance Alloy balancing settings

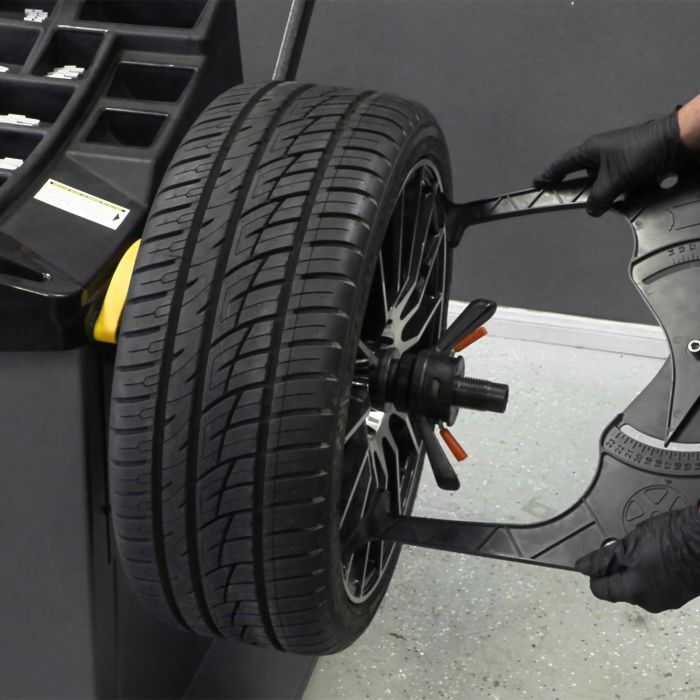

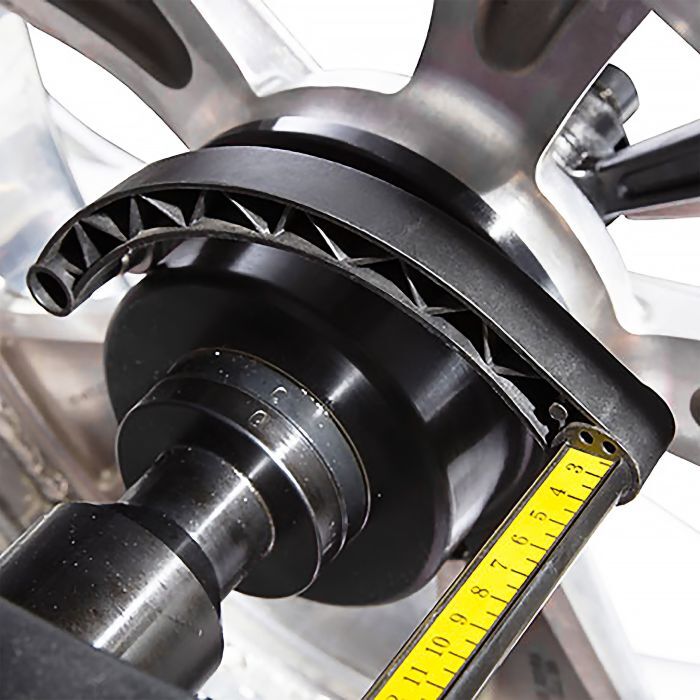

• Simple wheel data entry for distance, diameter, and width measurements
• Precise rolling wheel weight readings
• Low-RPM balancing with rapid cycle time
• Balancing speeds up to 320 RPM
• Automatic braking for controlled placement
• Finer accuracy resolution to ±1 gram
• Automatic round-off with top-dead-center weight position indicator
• Tiered indicators for split-weight and hidden behind-the-spoke placement
• Manual or automatic start when hood is lowered
• Self-calibration function
• Rugged 40 mm shaft for heavier modern wheels
• Truck Cone Kit 5150032 recommended for truck and SUV tires

Specifications

Manuals & Downloads

• Ranger DST30PX Wheel Balancer 5140334 Brochure
• Ranger DST30PX Wheel Balancer 5140334 Installation Operation Manual
• Ranger Limited Warranty All Products
