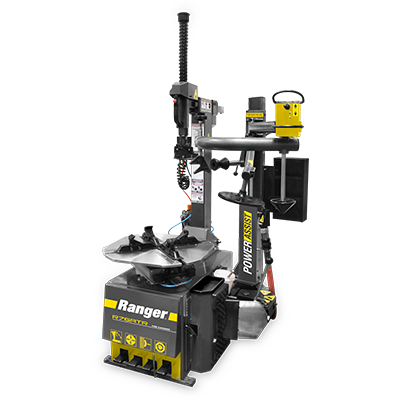

bendpRanger 5140140 R76ATR Tilt Back Tire Changer / Single-Tower / 208-240V, 1-Ph., 50/60hz / GRAY-YELLOW

The R76ATR is a brilliant time saver. Its tilt-back tower allows you to operate different tire-and-wheel combos without adjusting the duck head, and the swing-arm design with tower assist ensure stiff sidewalls are never a problem. RimGuard™ clamps extend 10" – 30" for maximum versatility.

Features

  • 4 Clamps (Internal / External)
  • Dual Pneumatic Cylinders
  • Adjustable Pneumatic Blade
  • Tilt-Back Tower Design
  • Vertical Shaft / Tool Head Positioning
  • Inflation System
  • Inflation Gauge & Integrated Air Dump Valve
  • Inflation Pressure Regulator/Limiter
  • Water Filter
  • Oiler / Lubricator
  • Air Regulator
  • Bead Tool/Tire Iron
  • Alloy-Steel Mount-Demount Head
  • Nylon Mount-Demount Head
  • Large Soap Bucket
  • Soap Brush
  • TurboBlast™ Bead Seating System
  • Tool Tray / Bin Storage
  • Motorcycle Turntable Clamps (optional)

WARNING: California Prop 65

Style
Style: Tilt-Back Tower Design
Assist
Assist Type: Single-Tower Assist
Speed
Speed: Standard
Motor 3 HP (220 VAC 50-60 HZ)
Drive System Type Electric / Hydraulic
Air Requirement 110-175 PSI (8-12 BAR)
Wheel Clamping Method 4 Clamps - Internal / External
Table Clamping System Dual Pneumatic Cylinders
Bead Breaking System Adjustable Pneumatic Blade
Tower Design Tilt-Back
Power Assist Tower(s) Single / Right-Side
Bead Lifting Roller(s) Single / Right-Side
Upper Bead Assist Roller Single / Right-Side
Vertical Shaft / Tool Head Pneumatic / Locking
Powerful Bead Seating System TurboBlast™
Internal Rim Clamping Capacity 10” – 30” (254 mm - 762 mm)
External Rim Clamping Capacity 9” – 28” (229 mm - 711 mm)
Turntable Tire Width Capacity (Mounting) 4” – 18” (102 mm – 457 mm)
Bead Breaker Tire Width Capacity (Demounting) 1.5” – 16” (38 mm – 406 mm)
Maximum Tire Diameter 43” (1,092 mm)
Shipping Weight 908 lbs. (412 kg)
Shipping Dimensions
51'' x 45'' x 73'' (1,295 mm x 1,143 mm x 1,854 mm)

;
