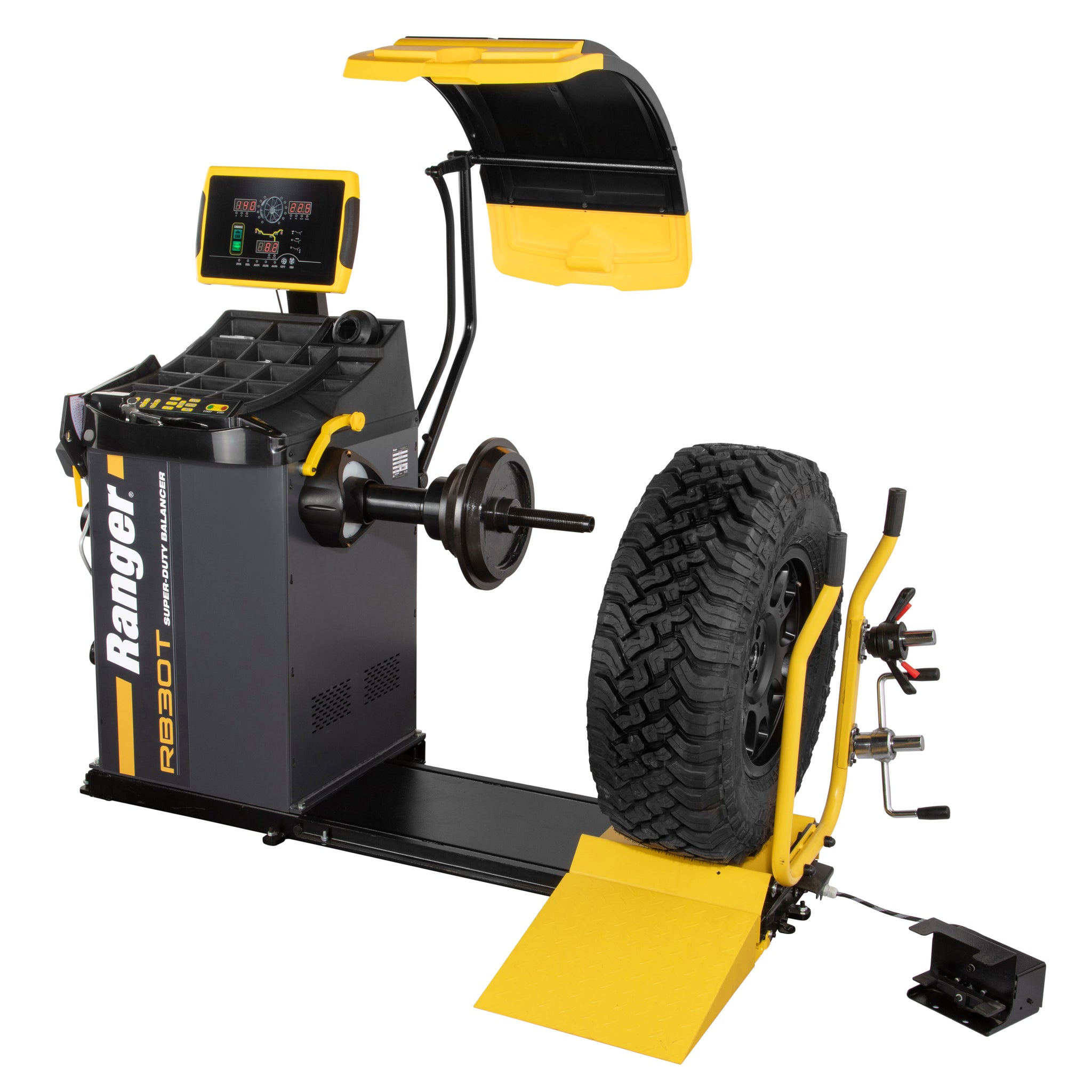

Ranger RB30T Heavy-Duty Truck and Passenger Car Wheel Balancer (5140179)

Heavy-Duty Wheel Balancing for Trucks and Passenger Cars

The Ranger RB30T Heavy-Duty Truck and Passenger Car Wheel Balancer is built for commercial truck fleets, high-volume tire shops, and service operations where big wheel assemblies are part of the daily grind. Designed for buses, semis, OTR applications, light-duty trucks, and passenger car wheels, the RB30T gives shops the power, speed, and accuracy needed to balance larger assemblies without treating them like oversized exceptions.

With support for wheels up to 49.25 inches in diameter, 20 inches wide, and 330 lbs. in weight, the RB30T is the serious heavy-duty option in this wheel balancer group. It also moves quickly, with 7 to 10 second cycles for car wheels and approximately 20 second cycles for truck wheels, helping shops handle both commercial volume and mixed-service workflow from one purpose-built machine.

Drive-Check Technology and Multi-Axis Sensor Precision

At the center of the RB30T is Ranger Drive-Check technology, which helps simulate real-world conditions and identify subtle vibrations before they become road complaints. This is not basic spin-and-guess balancing. The system uses high-sensitivity detection backed by 64-bit digital architecture and multi-directional quartz piezoelectric sensors that measure longitudinal, transverse, and shear imbalance forces.

Once imbalance is detected, the RB30T helps recommend efficient correction, supporting better tire wear, reduced wasted weight, and more consistent customer results. Five balancing modes, including Dynamic, Static, ALU1, ALU2, and ALUS, give technicians the flexibility to balance both steel and aluminum wheels across truck and passenger applications.

Built to Handle Heavy Wheels Without Beating Up Technicians

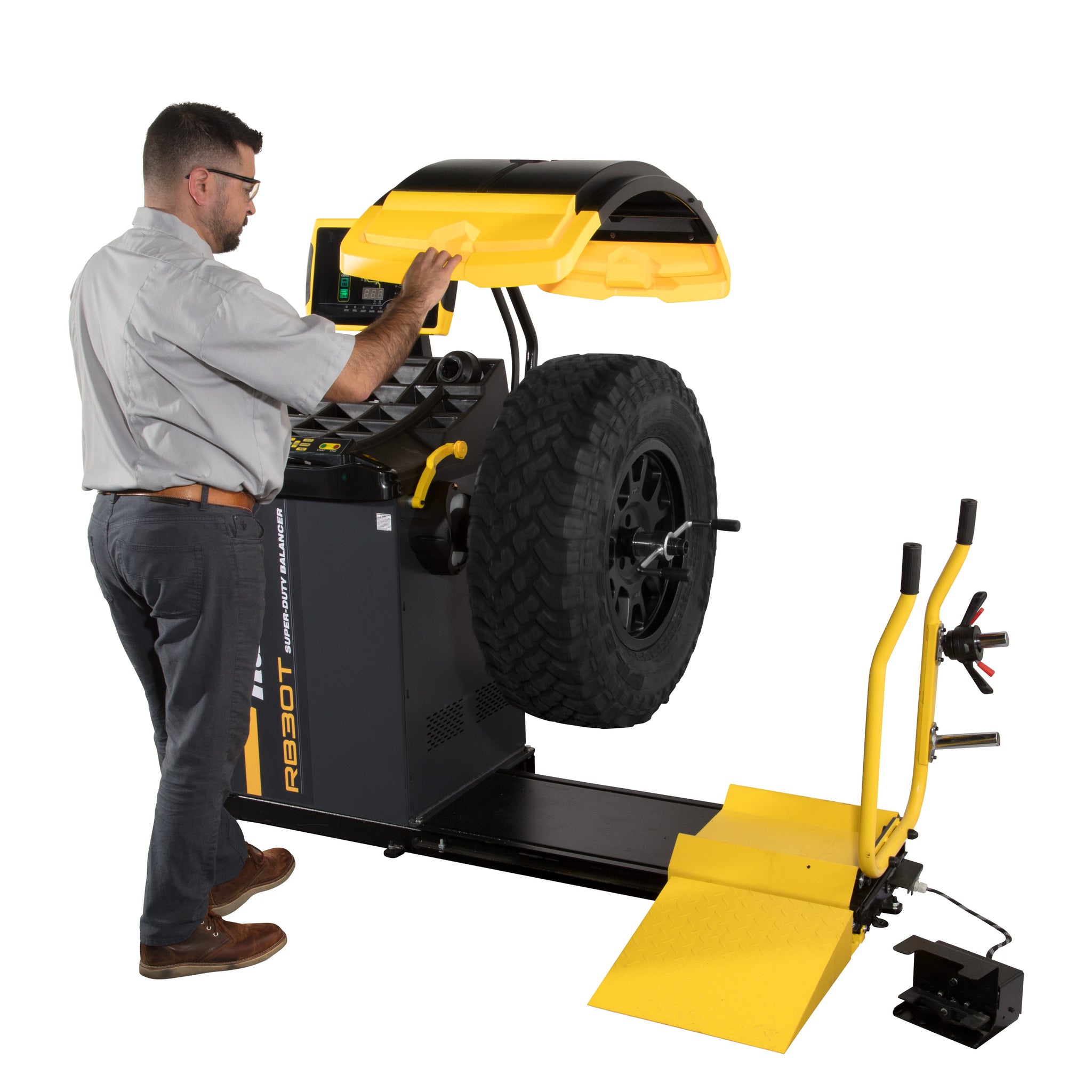

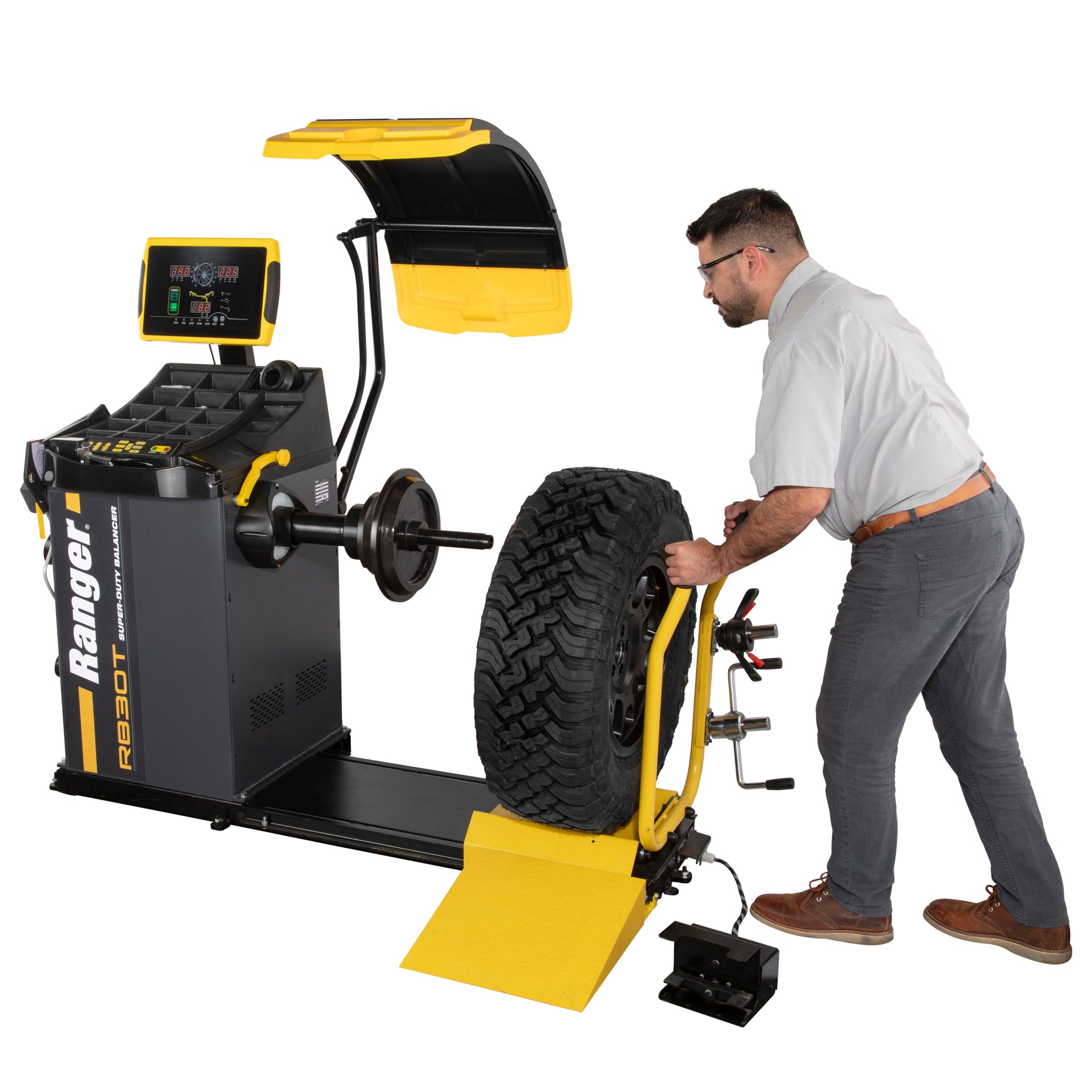

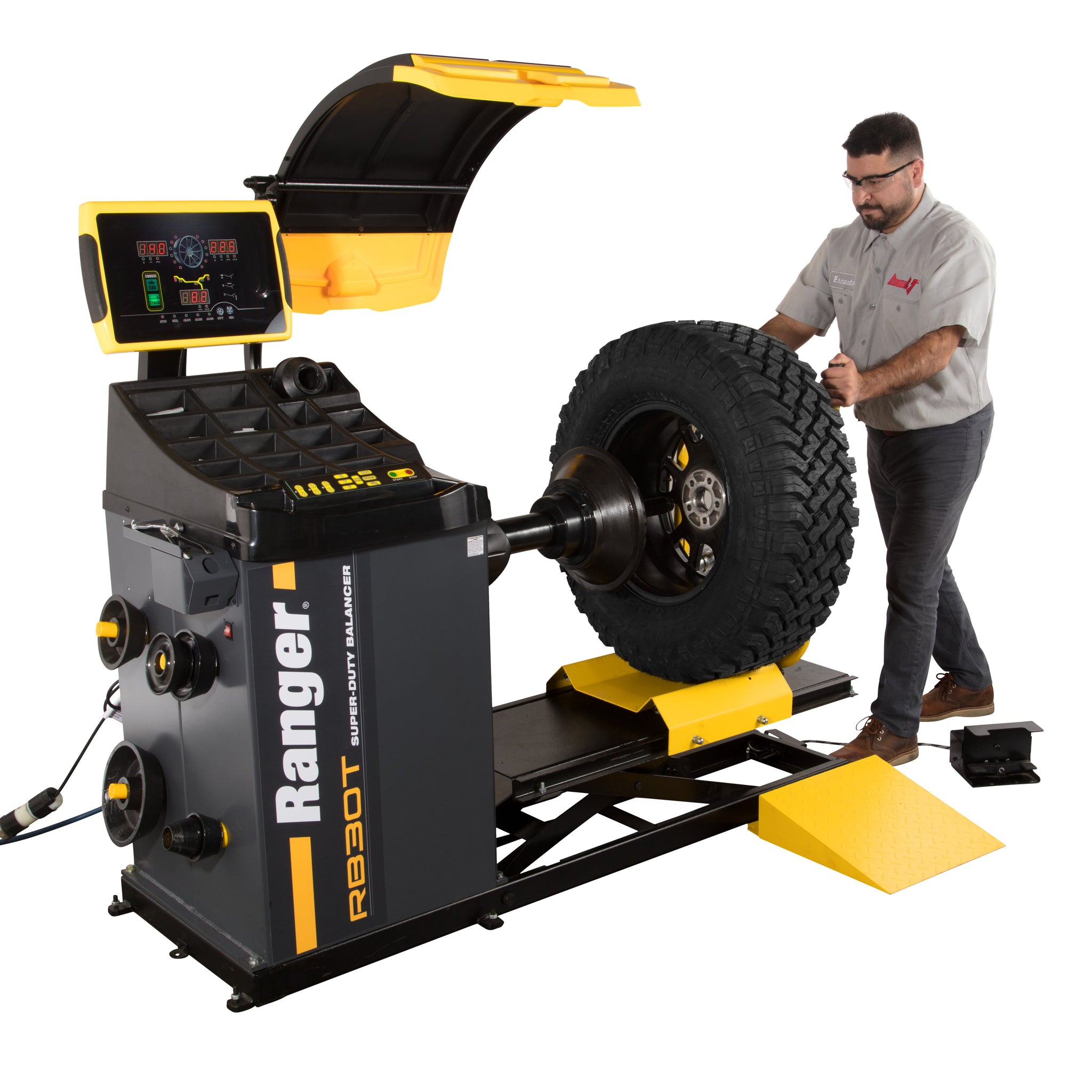

The RB30T is designed around the reality of heavy wheel service. An integrated pneumatic wheel lift helps position wheel assemblies up to 330 lbs., reducing technician strain and making mounting safer and more manageable. The self-centering quick-chuck system speeds setup and helps improve centering accuracy during high-volume work.

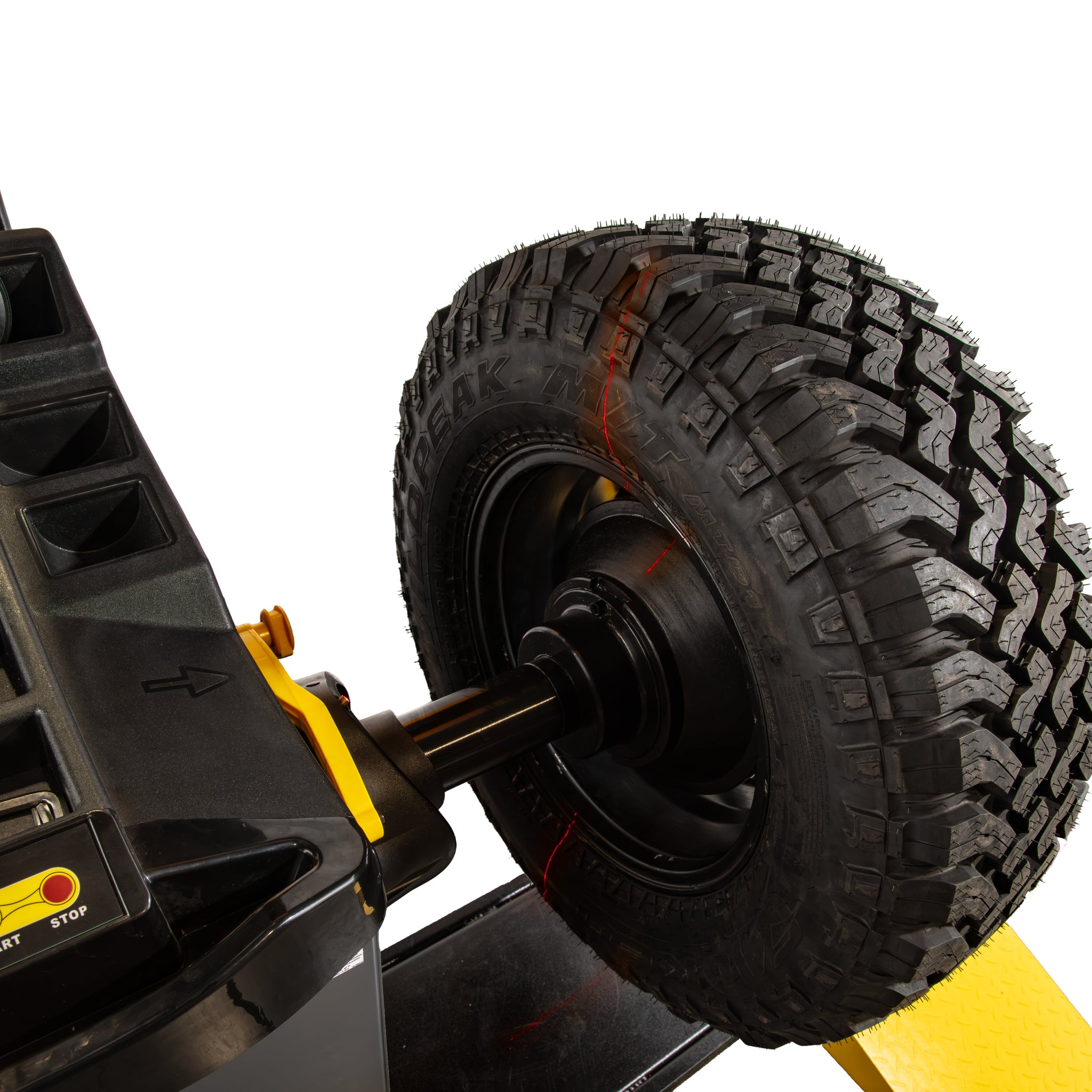

An electro-pneumatic braking system locks wheels for pinpoint weight placement at top or bottom dead center. LED placement indicators guide clip-on weights, while optional lower laser guidance supports 6 o'clock adhesive weight placement in ALU modes. Truck or car mode is available at the push of a button, so technicians can switch between wheel types without a long reset routine.

Commercial Construction, Adapter Kit, and Shop Workflow

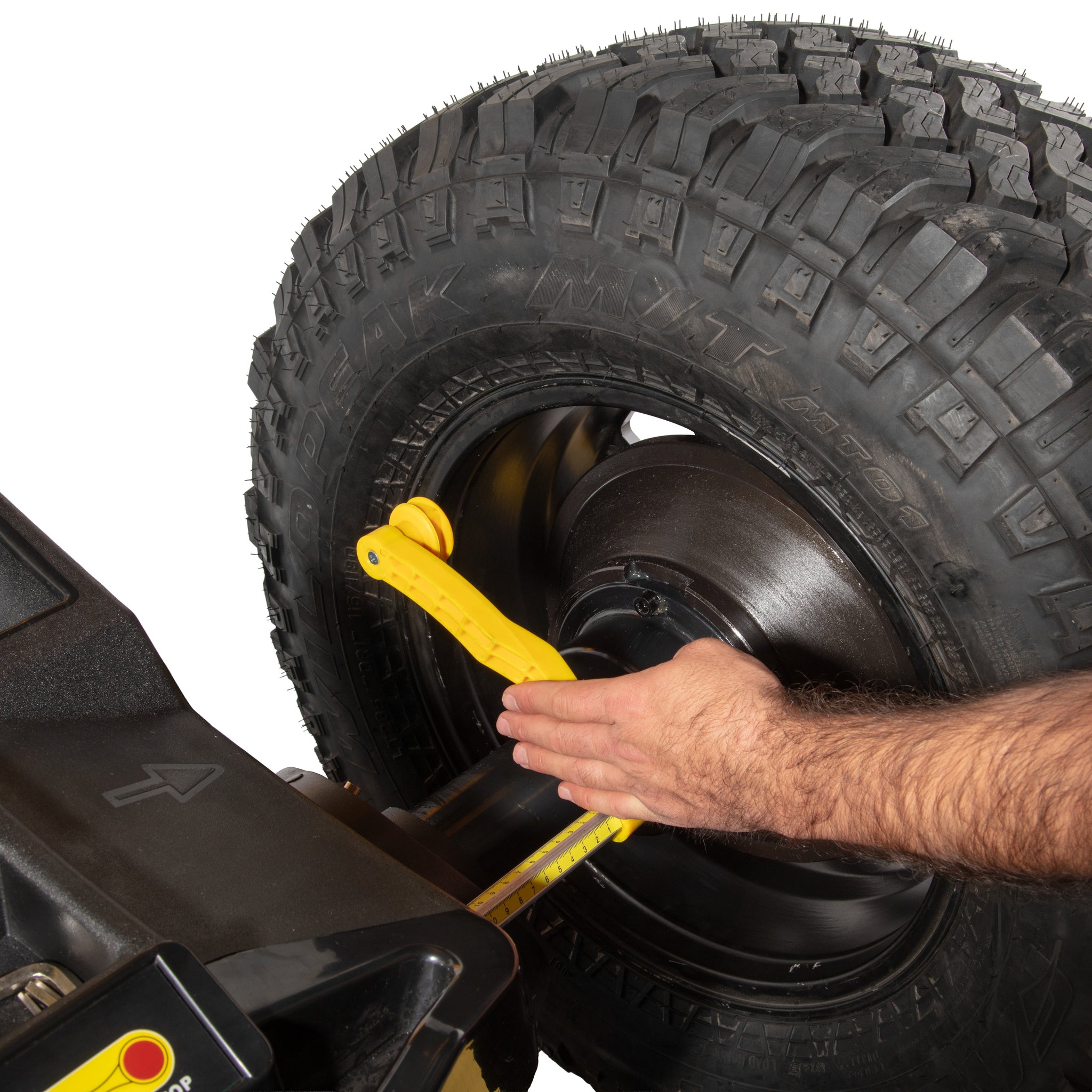

The RB30T is built for daily abuse with a hardened 40 mm steel shaft, rugged ribbed nylon-fiber reinforced serpentine belt, counter-weighted flywheel system, three-phase motor, and solid-state phase converter for consistent torque under load. Self-calibration and inner-arm calibration functions help maintain long-term measurement accuracy, while error-code diagnostics streamline troubleshooting and service.

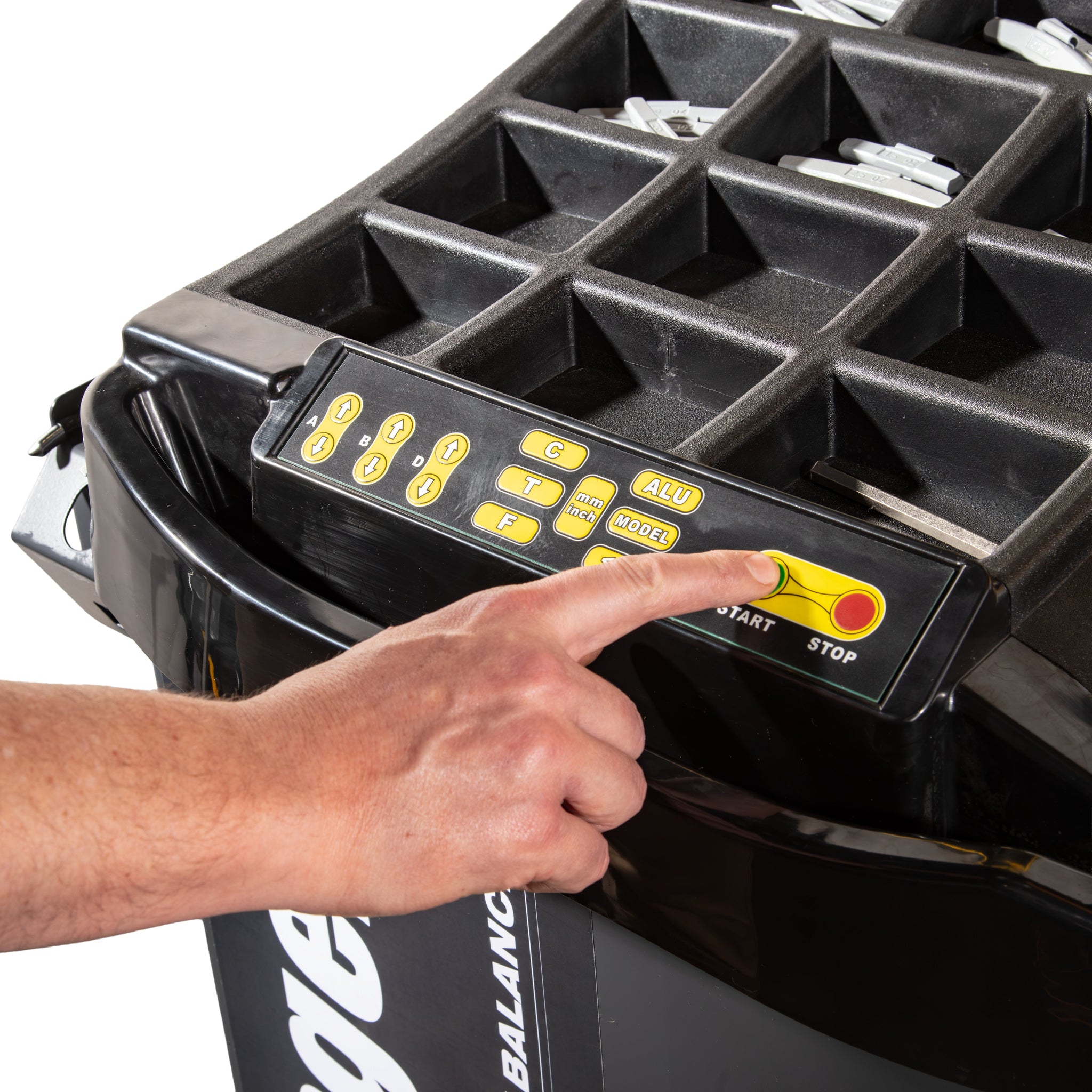

The machine also keeps the work area organized with a top weight tray, side shelving, and cone pegs for weights, cones, and tools. A full heavy-duty cone and commercial adapter kit comes included, giving shops the mounting equipment needed to start handling truck and passenger car balancing without a pile of day-one add-ons.

330-lb. Wheel Capacity

The integrated pneumatic lift helps handle wheel assemblies up to 330 lbs. That reduces technician strain during heavy truck, bus, OTR, and commercial wheel service.

Drive-Check Technology

Drive-Check helps simulate real-world conditions and detect subtle vibration issues before they leave the shop. It supports more confident balancing and better customer results.

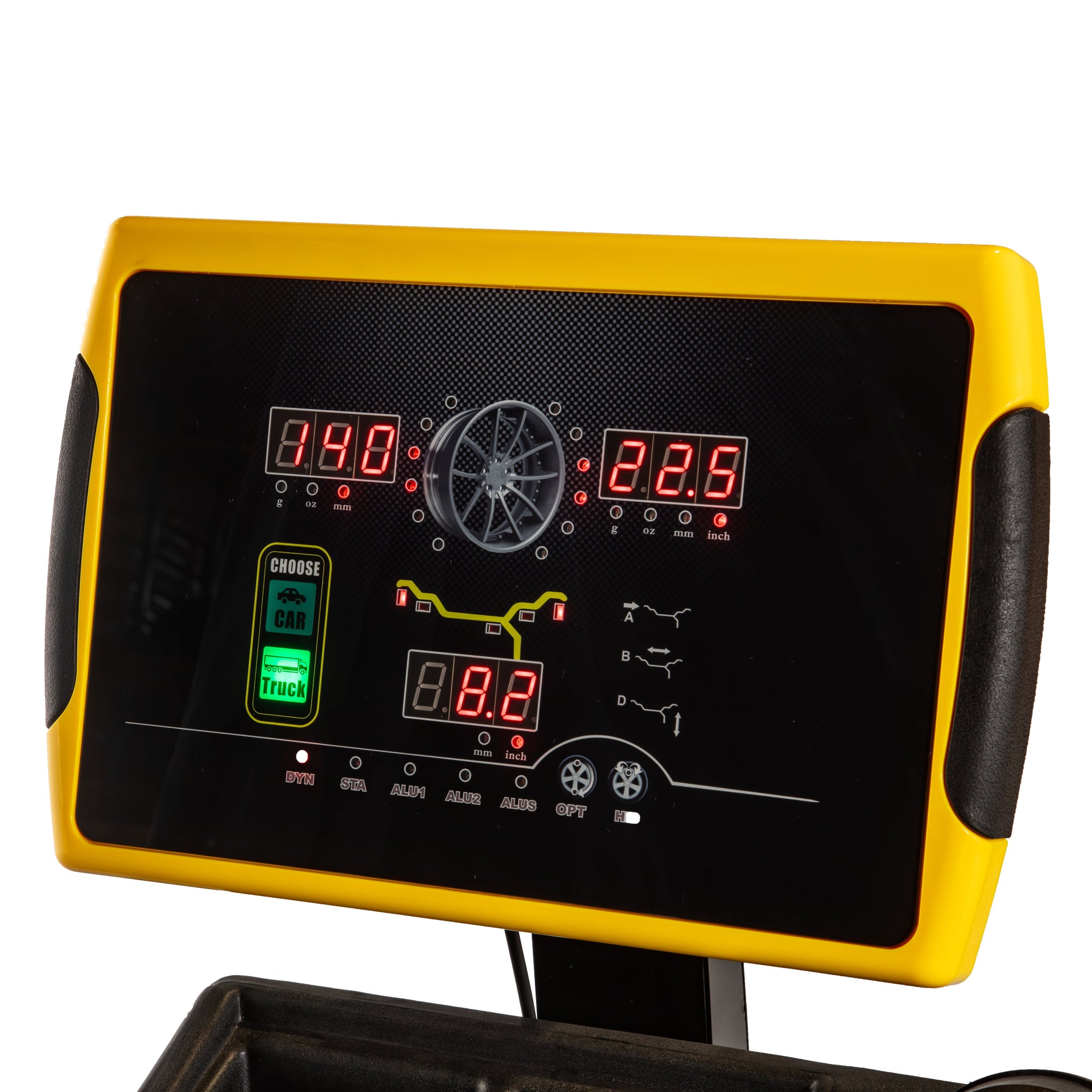

Truck and Car Modes

Switch between truck and passenger car operation with the push of a button. The RB30T is built for mixed-service shops that need one machine to handle very different wheel assemblies.

Five Balancing Modes

Dynamic, Static, ALU1, ALU2, and ALUS modes support steel and aluminum wheels across commercial and passenger applications. More modes mean fewer limitations in the bay.

Commercial Adapter Kit

The RB30T includes a full heavy-duty cone and commercial adapter kit. Shops get the mounting hardware needed for serious truck balancing right out of the box.

Electro-Pneumatic Braking

The braking system locks wheels in position for accurate weight placement at top or bottom dead center. LED indicators and optional lower laser guidance help speed correction.

Recommended Add-ons

Features

• Supports wheels up to 49.25 inches in diameter
• Supports wheel widths up to 20 inches
• Handles wheel assemblies up to 330 lbs.
• Integrated pneumatic wheel lift for heavy wheel mounting
• Drive-Check technology helps detect real-world vibration issues
• 64-bit digital architecture with single-chip control system
• Dynamic, Static, ALU1, ALU2, and ALUS balancing modes
• Multi-directional quartz piezoelectric sensors
• Self-centering quick-chuck system
• Electro-pneumatic braking for precise weight placement
• Top-dead-center LED weight placement indicators
• Optional lower laser for 6 o'clock adhesive weight placement
• Rapid cycle times for car and truck wheels
• Precision-machined, hardened-steel 40 mm shaft
• Includes full heavy-duty cone and commercial adapter kit

Specifications
