10L Bead Seating for SUVs and Light Pickups

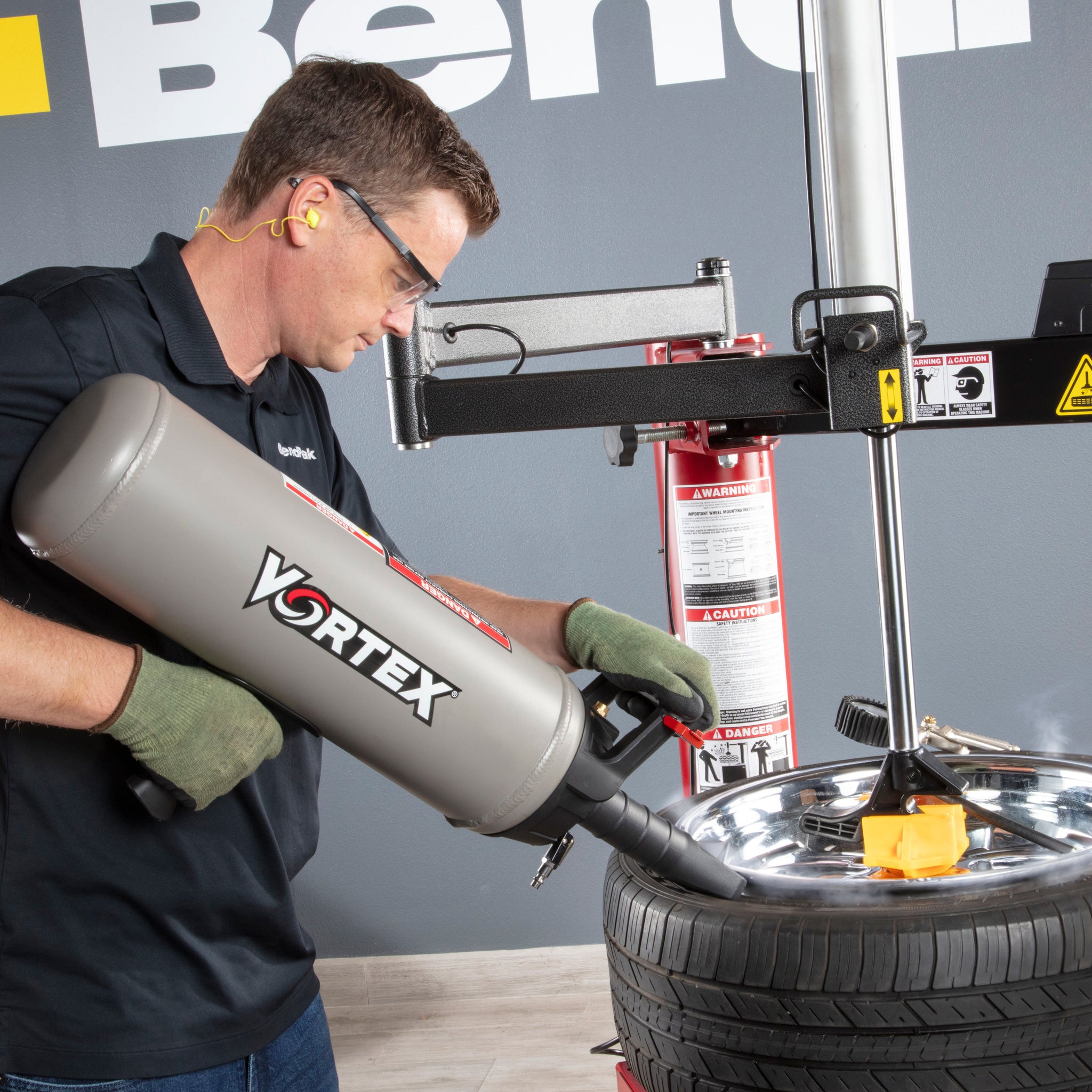

When air escapes around an unseated bead, conventional inflation may not establish a seal. The Ranger Vortex RB10L delivers a rapid burst of compressed air into the gap between the tire and wheel to help get the bead seated. Its 10L tank is designed for SUV and light pickup tire service, giving shops a portable bead seater matched to those applications.
More Tank Capacity with Little Added Weight
The RB10L holds 4L more than the RB6L while adding just 1.1 lbs. of weight. Its 2.6-gallon aluminum-alloy tank keeps the complete bead seater at 9.5 lbs., making the step up in capacity easy to carry between bays. It is the middle-size Vortex model for shops servicing SUVs and light pickups; the 12L RB12L covers the full-size and heavy-duty pickup applications in the range.
Rapid Air Release at the Push of a Button

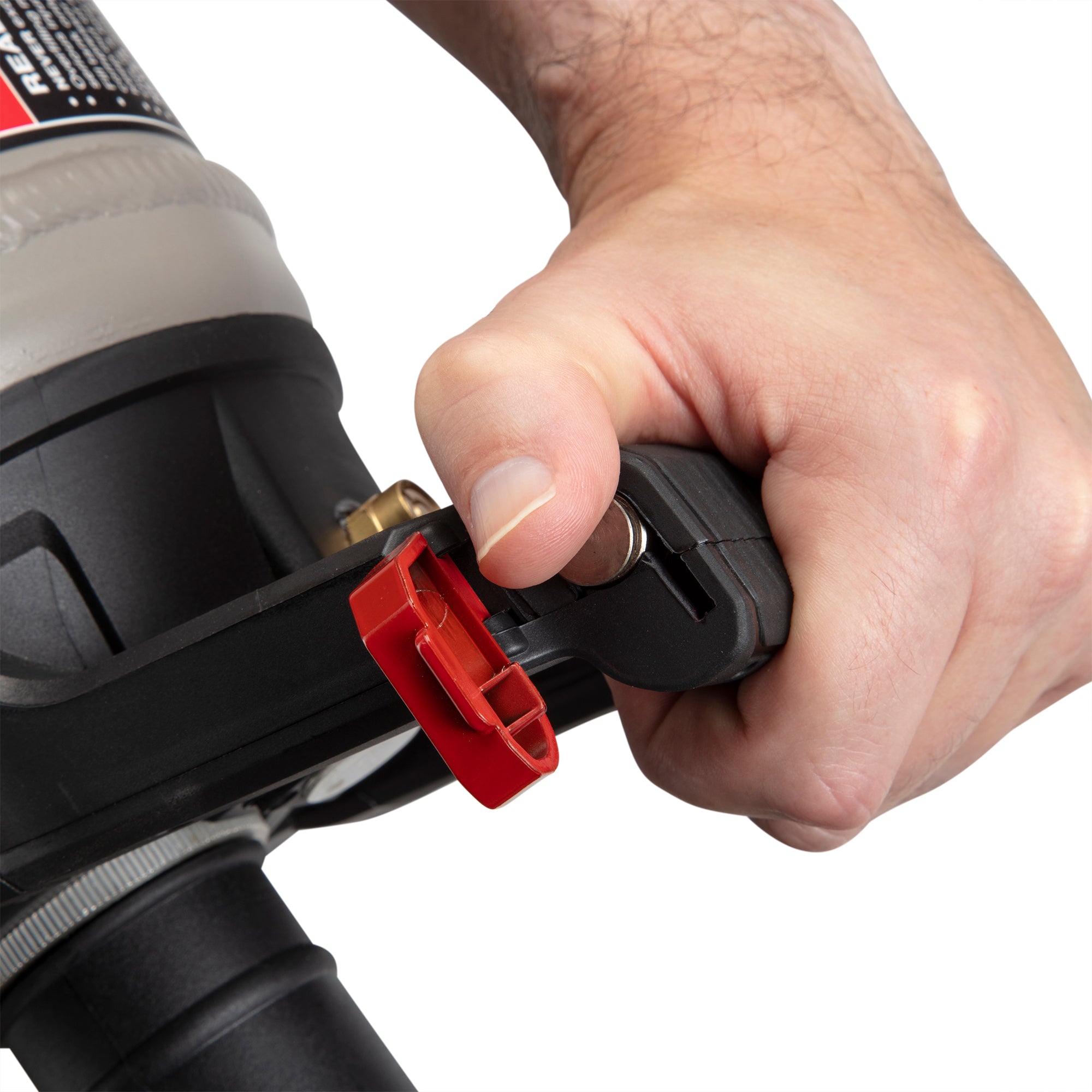

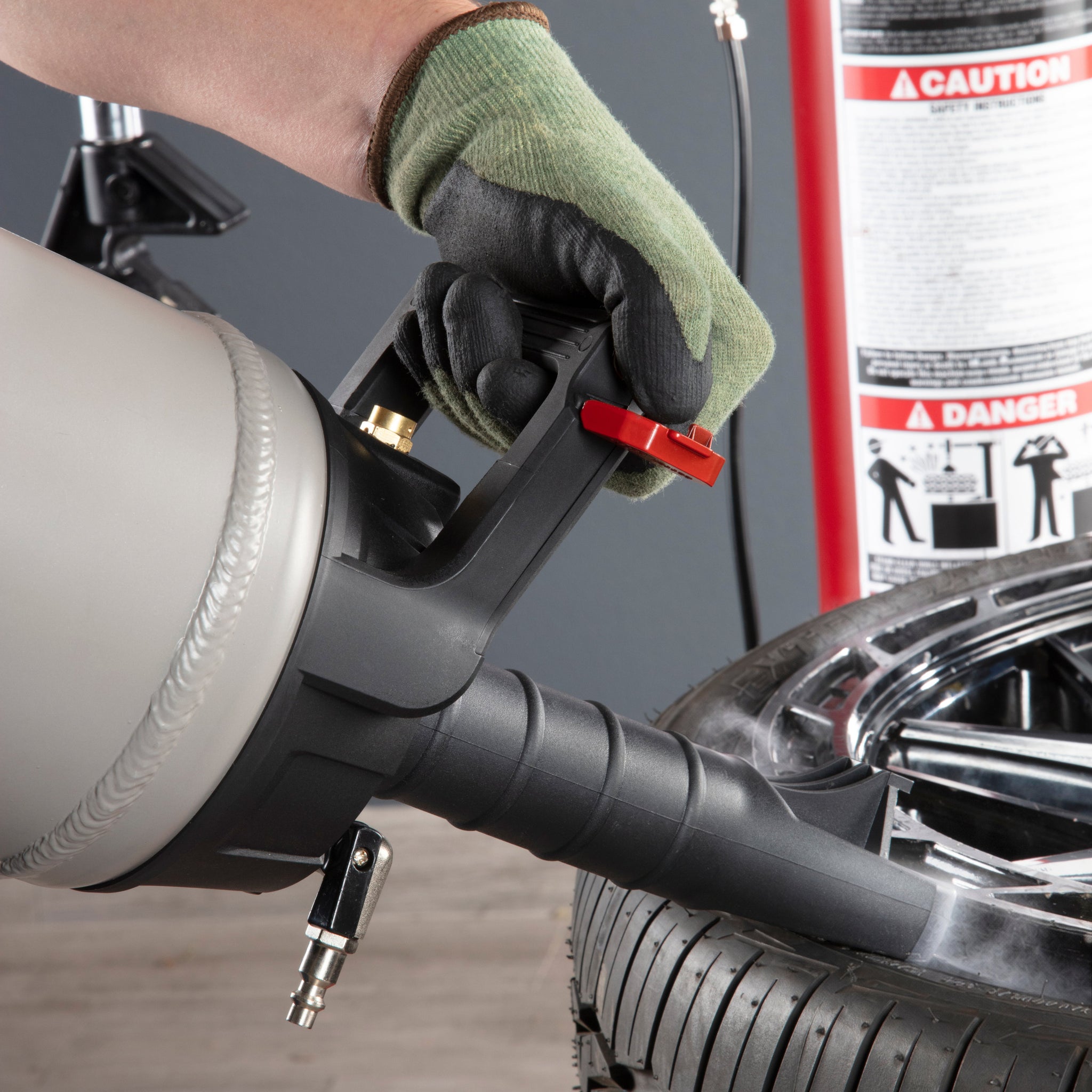

A push-button switch releases the tank’s compressed air through a 1.75-inch (44 mm) high-flow exhaust valve. The tapered nozzle directs the burst toward the bead gap, while the nozzle brace rests against the wheel rim for positioning. Front and rear handles provide a two-handed grip during discharge. A protective cover sits over the release switch.
Connect to Shop Air. Read Pressure at the Tank.
The RB10L’s quick-connect air coupler and inlet valve make filling from your shop’s compressed-air supply straightforward. An onboard gauge lets you monitor tank pressure, while an integrated pressure relief valve provides overpressure protection. After seating the bead, use a separate tire inflation hose as needed to reach the tire manufacturer’s recommended pressure. Follow the Vortex user guide for preparation and operation.
10L / 2.6-Gallon Tank
Portable bead-seating capacity for SUV and light pickup tire service.
4L More than RB6L
Step up from the 6L model with just 1.1 lbs. of additional weight.
Push-Button Air Release
Activate the concentrated burst of air that helps establish the seal between a tubeless tire bead and wheel.
1.75-Inch High-Flow Valve
A 44 mm exhaust valve channels the rapid air discharge through a tapered nozzle.
Carry It Between Bays
Aluminum tank construction keeps the RB10L at 9.5 lbs. Front and rear handles provide a two-handed grip during use.

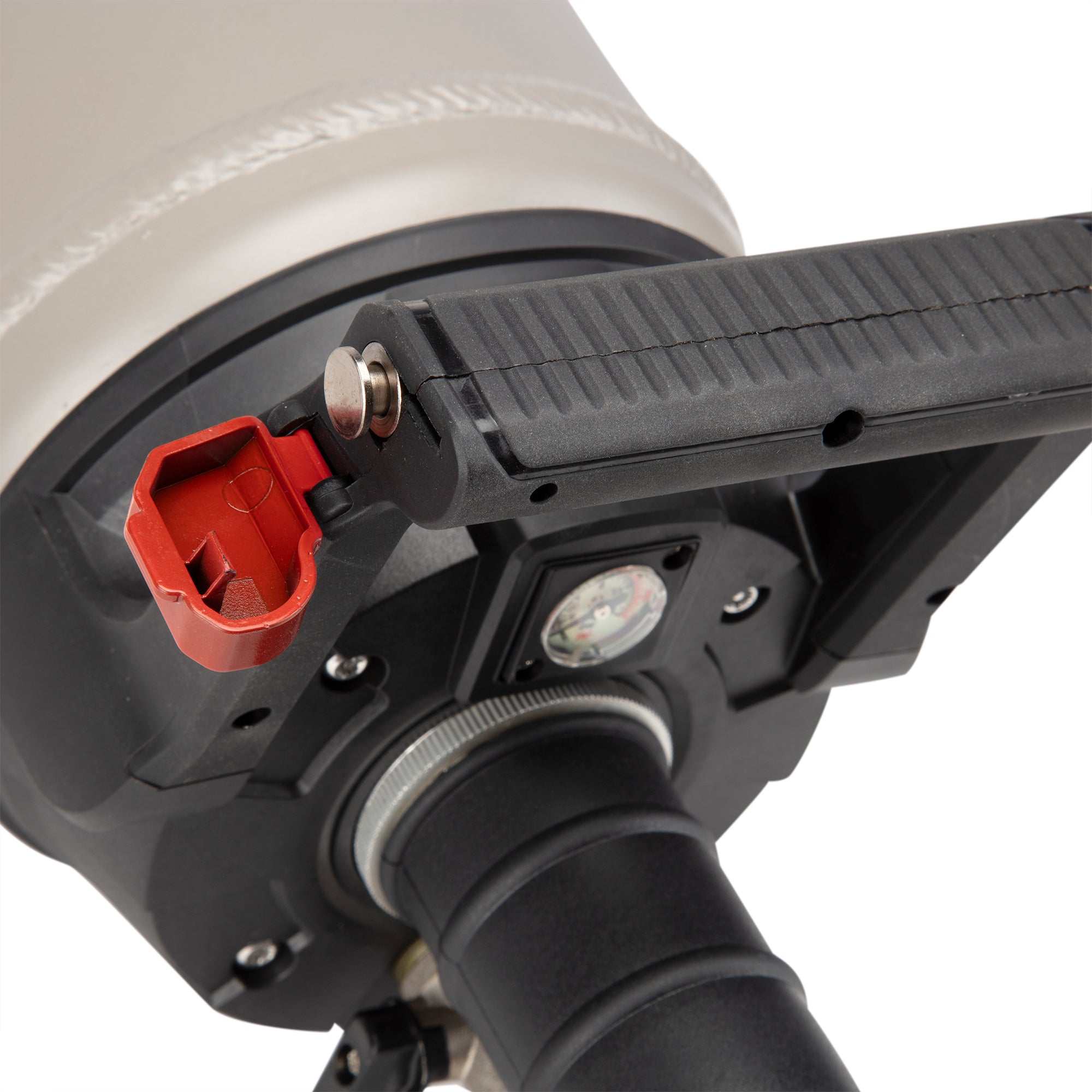

Onboard Pressure Gauge
View tank pressure directly at the bead seater. The air system includes an inlet valve and pressure relief valve.
Features
- 10L (2.6-gallon) air tank capacity
- Trigger-operated automatic rapid air release
- Push-button air release switch with protective cover
- 1.75-inch (44 mm) high-flow exhaust valve
- Tapered exhaust tip directs air into the tire bead gap
- Nozzle brace for positioning against the wheel rim
- Aluminum-alloy tank construction
- 9.5-lb. unit weight
- Front and rear handles for a two-handed grip
- Onboard tank pressure gauge
- Quick-connect air coupler and air inlet valve
- Integrated pressure relief valve
- Normal working pressure: 87-116 psi
- Designed to help seat tubeless tire beads
- Overall dimensions (L x W x H): 26 x 8.7 x 11 in.
Specifications
| Tank Size | 10 L |
| Tank Material | Aluminum alloy |
| Air Release | Trigger-operated rapid air release |
| Exhaust Valve Diameter | 1.75 in |
| Working Pressure | 87–116 psi |
| Air Supply | Quick-connect coupler with inlet valve |
| Tank Pressure Gauge | Included |
| Pressure Relief Valve | Included |
| Length | 26 in |
| Width | 8.7 in |
| Height | 11 in |
| Unit Weight | 9.5 lb |
| Handles | Front and rear |
| Shipping Weight | 12 lb |
| Shipping Method | Parcel |
