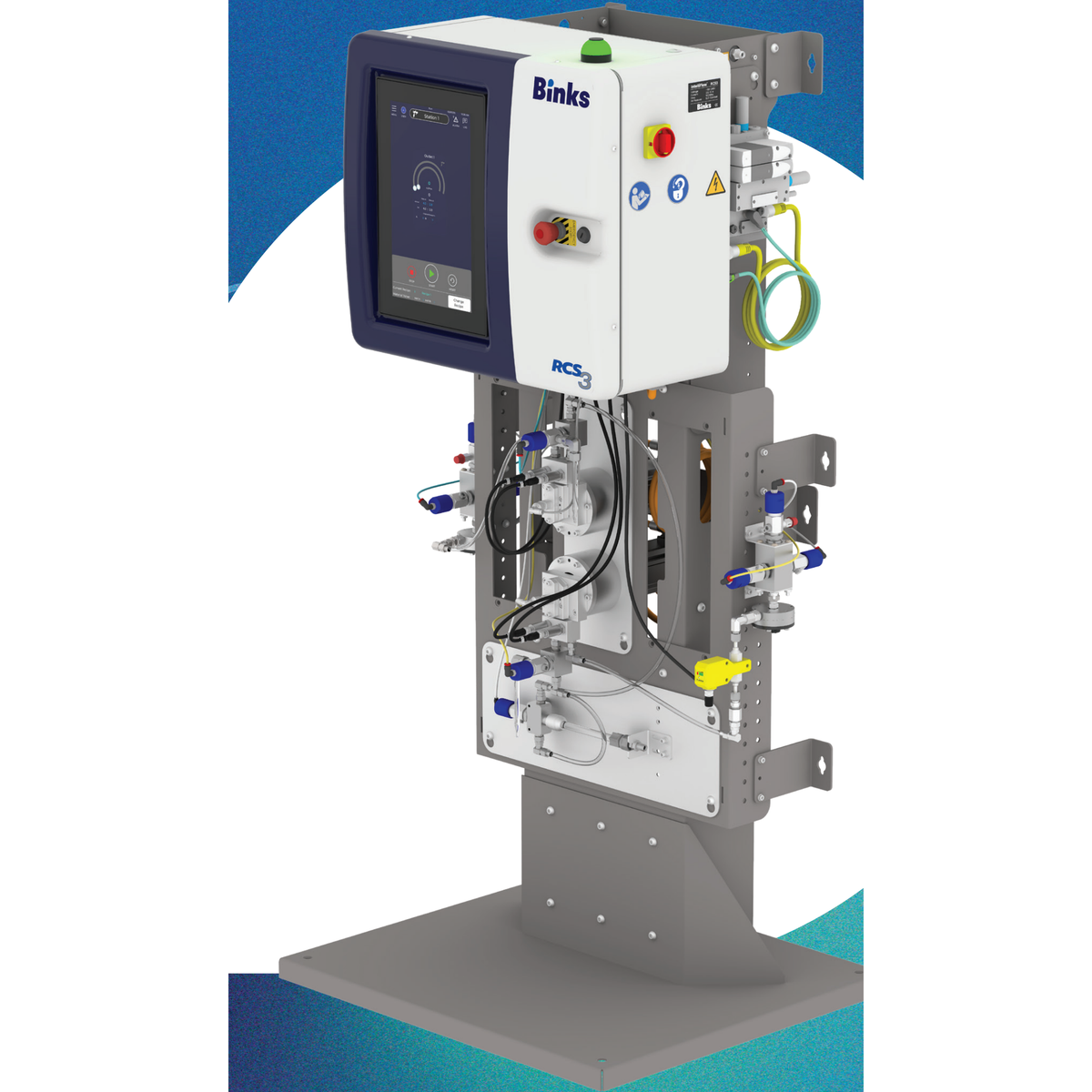

The Binks IntelliFlow RCS3 is an electronically controlled, gear pump driven plural component proportioner for 1K, 2K and 3K applications. It delivers instant trigger response and a uniform finish, with a 15-inch touchscreen and built-in cloud connectivity for remote monitoring and diagnostics.
Configurations offered
| Part number | Configuration |
|---|---|
| RCS3-11-4702-01C1 | 2K, 1 color, 1 catalyst, A-side 6 cc/rev, 60-1200 cc/min, B-side 1.2 cc/rev, 12-240 cc/min |
| RCS3-11-4702-04C1 | 2K, 4 colors, 1 catalyst, A-side 6 cc/rev, 60-1200 cc/min, B-side 1.2 cc/rev, 12-240 cc/min |
| RCS3-11-4702-07C2 | 2K, 7 colors, 2 catalysts, A-side 6 cc/rev, 60-1200 cc/min, B-side 1.2 cc/rev, 12-240 cc/min |
| RCS3-11-4702-12C4 | 2K, 12 colors, 4 catalysts, A-side 6 cc/rev, 60-1200 cc/min, B-side 1.2 cc/rev, 12-240 cc/min |
What is included
- Preconfigured automatic 2K package with Ethernet/IP communication included
- A-side gear pump 6 cc/rev, 60-1200 cc/min
- B-side gear pump 1.2 cc/rev, 12-240 cc/min
- Build-your-own systems and custom configurations are also available
Key features
- 1K, 2K and 3K capability; up to 100 colors plus hardeners; up to 250 recipes
- Flushable gear pumps on both color and catalyst sides (A and B side gear pump sizes 0.3, 1.2, 3, 6 and 10 cc/rev, all DLC coated)
- 300 cc/min and 600 cc/min positive displacement pump available on the C side
- 50 millisecond ratio response time
- Modular color changer with air/solvent purge; compatible with rotary atomizers, bells, disks and electrostatic or non-electrostatic spray guns
- Stand-alone two-channel unit or expandable to eight fluid channels through one main controller
- Cloud remote operation and monitoring
Specifications
| Ratio range / tolerance | 1:1 to 100:1, +/- 1% |
|---|---|
| Capability | 1K, 2K and 3K (3K with positive displacement pump) |
| Fluid viscosity range | 1 cPs - 3,000 cPs |
| Fluid pressure | 250 psi (145 psi with flow sensor) |
| Resin / catalyst flow rate | 3-2,000 cc/min each; total 6-4,000 cc/min |
| Flow tolerance | +/- 1% |
| Trigger response rate | 50 ms (material and flow rate dependent) |
| Wetted parts | Stainless steel, PTFE, perfluoro elastomer, UHMW polyethylene |
| Isocyanate catalyst compatible | Yes |
| Communication | Discrete, Ethernet/IP, PROFINET, DeviceNet, CC-Link, EtherCAT, Modbus |
| Recipes / jobs | 250 |
| Weight / dimensions | Approx. 300 lb; 32 in W x 28 in D x 74.65 in H |
Manuals and literature
- IntelliFlow RCS3 Brochure - EN
- IntelliFlow RCS3 Installation Manual 77-3168-1
- IntelliFlow RCS3 Operation Manual 77-3168-2 EN
- IntelliFlow RCS3 Service Guide 77-3168-3 EN
- IntelliFlow RCS3 Kits and Spare Parts Manual 77-3168-4 EN
- IntelliFlow RCS3 Programming Manual 77-3168-5
