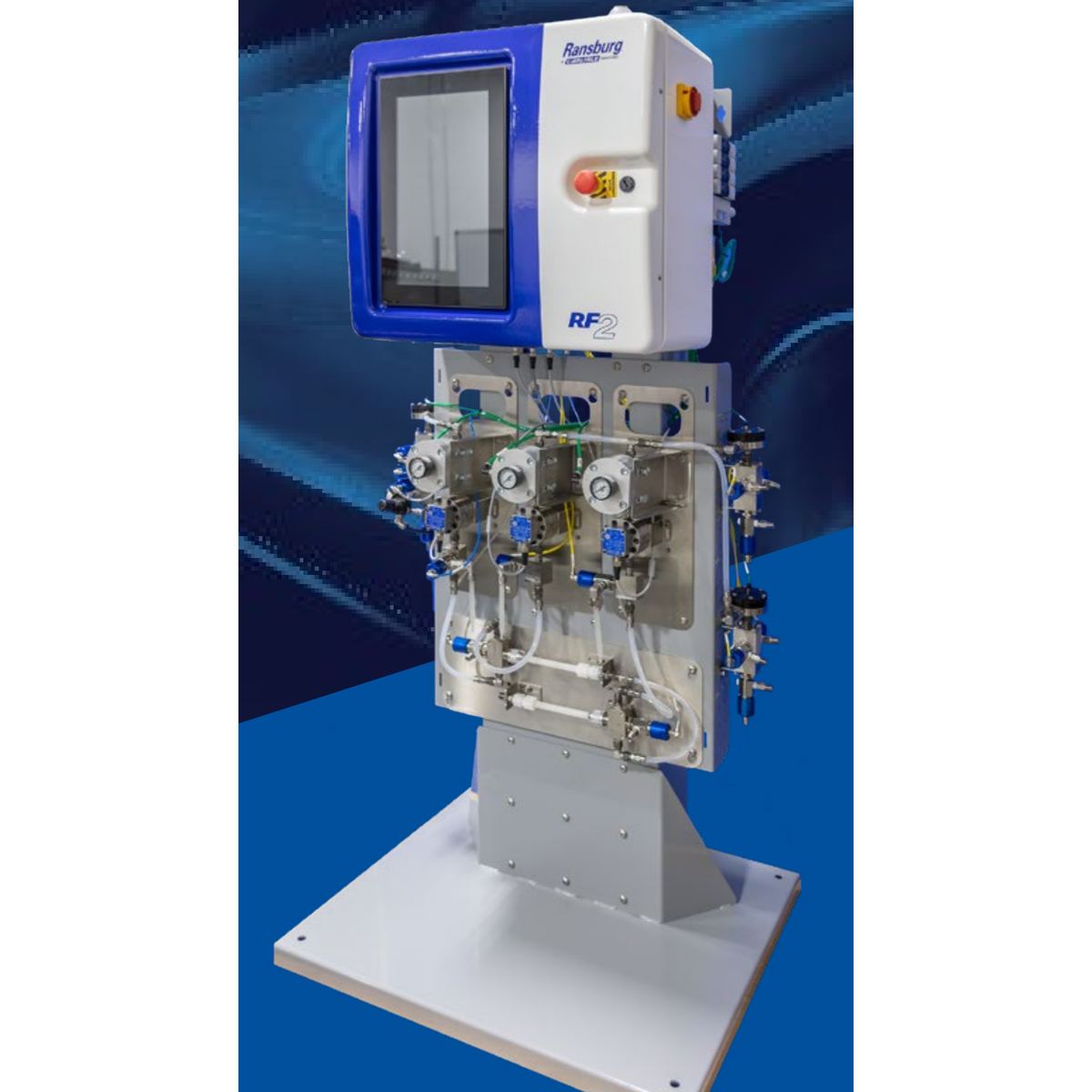

The Ransburg IntelliFlow RF2 is a one-, two- and three-component metering, mixing and flow control proportioner built for automatic, robot and hand spray systems. It pairs closed-loop flow and ratio control with a 15-inch color touchscreen, standard EtherNet/IP communication and cloud-based remote monitoring.
Configurations offered
| Part number | Configuration |
|---|---|
| RF2-HA2-01-01-A | 1 color, 1 catalyst, Acid-catalyst materials |
| RF2-HA2-01-01-S | 1 color, 1 catalyst, Standard materials |
What is included
- 15" full-color touchscreen with EtherNet/IP communication
- Solenoids for up to 12 colors and 4 catalysts
- Inlet pressure regulation
- Solvent and air chop valves on the color stack (except 1-color configurations)
- Solvent valves on the catalyst stack (except 1-catalyst configurations)
- 2 high-resolution gear flowmeters
- 2 closed-loop flow control regulators
- Flushable dynamic mix block
- Wall mounting hardware
Key features
- True closed-loop flow and ratio control keeps the coating mixed and metered correctly every time
- Dynamic mixing reduces paint and solvent waste during color changes
- Standard air-solvent chop reduces solvent use by up to 65%
- Large 15-inch color touchscreen with automated processes and on-screen alarm fixes
- Standard EtherNet/IP; PROFINET, DeviceNet, CC-Link and EtherCAT available
- Cloud-based remote monitoring, data tracking and export for process improvement and VOC reporting
- Capable of up to 100 colors and catalysts and 3K operation; modular design grows with your process
Specifications
| Dimensions | 32" x 28" x 69" (81 x 71 x 175 cm) |
|---|---|
| Weight | 300 lbs (136 kg) |
| Power | 100-240 VAC 50/60 Hz, single phase, 2.8/1.4 A |
| Working air pressure | 75-105 psi (5-7 bar), 5 micron filtration |
| Fluid compatibility | Solventborne, waterborne, electrostatic, polyurethane, epoxy, isocyanate, acid-catalyst |
| Resin flow rate | 10-3,500 cc/min |
| Hardener / catalyst flow rate | 10-3,500 cc/min |
| Ratio range / accuracy | 1:1 to 50:1, +/- 1% |
| Fluid viscosity | 10 to 3,000 cPs |
| Fluid pressure | 300 psi (20 bar) or 3,000 psi (205 bar) |
| Hazardous area rating | Class 1, Division 1, Group D, T6; Zone 1, Ex II 2 G ib IIA T6 |
Manuals and literature
Request a quote or more information — configured systems are quoted to your application (colors, catalysts, materials, accessories). Call (888) 714-1410 or use the Request a Quote button.
