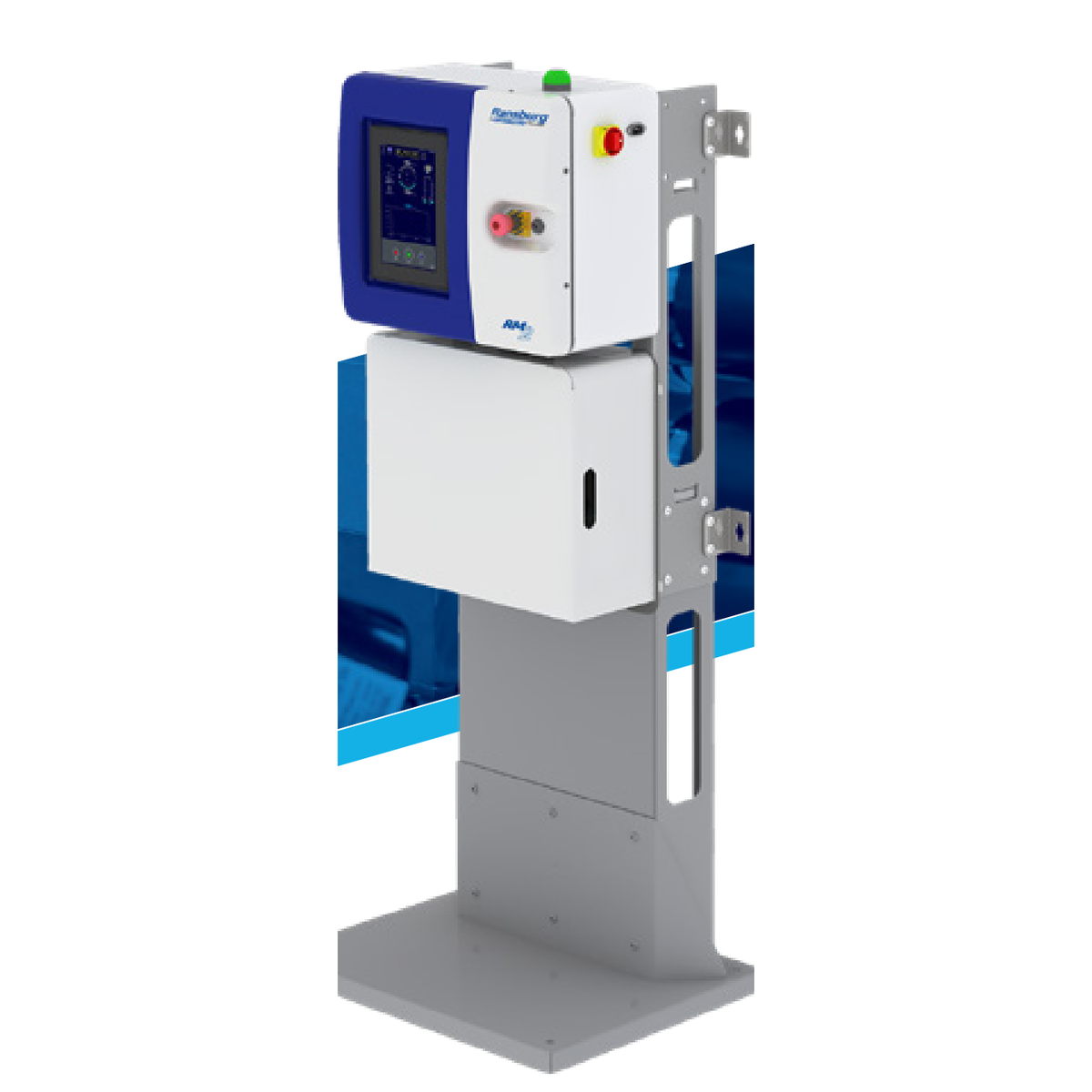

The Ransburg IntelliFlow RM2 is an entry-level electronic plural component proportioner for hand spray applications. It manages up to 7 colors with mix ratios from 1:1 to 100:1, dynamic mixing and a 10-inch color touchscreen, with no integrator needed.
Configurations offered
| Part number | Configuration |
|---|---|
| RM2-21151 | Medium Pressure, 3,000 psi, Standard Materials, Gear Flow Meter, pulse valve dispensing, 1 color |
| RM2-21153 | Medium Pressure, 3,000 psi, Standard Materials, Gear Flow Meter, pulse valve dispensing, 3 colors |
| RM2-21157 | Medium Pressure, 3,000 psi, Standard Materials, Gear Flow Meter, pulse valve dispensing, 7 colors |
| RM2-21158 | Medium Pressure, 3,000 psi, Standard Materials, Gear Flow Meter, pulse valve dispensing, color/catalyst code 8 (not in the numbering key of manual 77-3153-1; confirm exact count when quoting) |
| RM2-21159 | Medium Pressure, 3,000 psi, Standard Materials, Gear Flow Meter, pulse valve dispensing, 7 colors, 2 catalysts |
What is included
- 10" full-color touchscreen
- 2 gun capability
- Solvent and air chop valves on the color stack
- High-resolution gear flowmeter
- Catalyst metering pump
- Dynamic mix block
- Air connection bulkheads
- Wall mounting hardware
Key features
- Precision 1:1 to 100:1 material ratio control
- Up to 7 colors with customizable flush sequences per color
- Dynamic mixing reduces paint and solvent waste; no integrator needed
- Standard air-solvent chop reduces solvent use by up to 65%
- 10-inch color touchscreen; common operations in three presses or less
- Cloud-based connectivity: Ethernet, Wi-Fi, cellular or USB
- Two-gun capability on the turn-key configurations
Specifications
| Dimensions (W x H x L) | 28" x 22" x 69" (71 x 56 x 175 cm) |
|---|---|
| Weight | 250 lbs (113 kg) |
| Power | 100-240 VAC 50/60 Hz, single phase, 2.45/1.55 A |
| Working air pressure | 75-105 psi (5.2-7.2 bar), 5 micron filtration |
| Fluid compatibility | Solventborne, waterborne, polyurethane, epoxy, isocyanate |
| Resin flow rate | 20-1,900 cc/min |
| Hardener / catalyst flow rate | 2-600 cc/min |
| Ratio range / accuracy | 1:1 to 100:1, up to +/- 1% |
| Fluid viscosity | 10 to 3,000 cPs |
| Max colors / recipes | 7 colors, 250 recipes |
Manuals and literature
- IntelliFlow RM2 Literature EN
- IntelliFlow RM2 Manual 77-3153-1 EN
- IntelliFlow RM2 Spare Parts 77-3153-4 EN
Request a quote or more information — configured systems are quoted to your application (colors, catalysts, materials, accessories). Call (888) 714-1410 or use the Request a Quote button.
