NOTE: THIS IS A NON-CANCELLABLE ITEM - SUBJECT TO A $50.00 CANCELLATION CHARGE

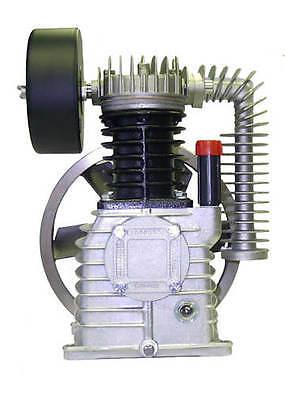

Ideal replacement on portable compressors. Aluminum head and crankcase gives good heat dissipation while cast iron cylinder sleeves provide long pump life.
-
Cylinders: Two
-
Stage: One
-
Shipping: 40 lbs.
-
Oil Capacity: 36 oz.
-
Flow: 13.42 CFM max.
-
Pressure: 150 PSI max.
-
Power Required: 3 HP max.
-
Speed: 1100 RPM max.
-
Rotation: CCW
-
Flywheel: 11.5" dia.
-
Port: 1/2" NPT
-
Bore/Stroke: 2.61" x 2/1.97"
-
Mount Base: 5.19" x 7.08" centers
-
Size: 11-1/2" x 10-1/4" x 13-3/4"
