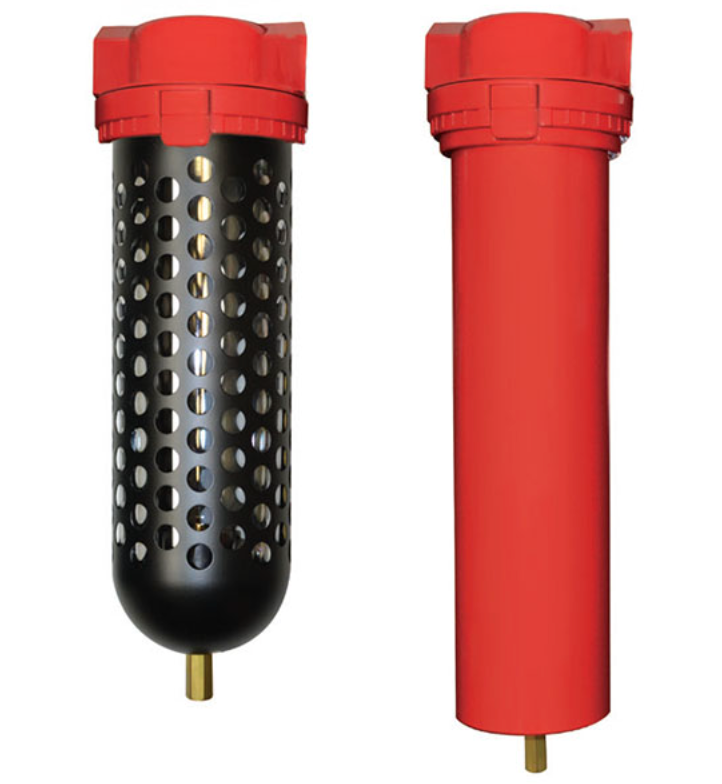

RTi 3C-250-M04-P 250 CFM Air Filter

RTi 3C-250-M04-P 250 CFM Air Filter

Regular price
$479.40
Sale price
$479.40
Quantity must be 1 or more


High efficiency coalescer, 99.99998 % efficient at 0.01 micron, with anti-re-entrainment layer for low oil carryover. ISO Class 1 for Particulate/Oil.

Specifications

  • Port Size: 1/2 in

  • Thread Styles: BSPP, BSPT, NPT

  • Flow Capacity (at 100 PSI): 250 SCFM

  • Filter Capacity: 0.01 µm and up

  • Differential Pressure at Rated Flow: < 1.5 psid

  • Maximum Temperature: 175 ºF

  • Maximum Pressure: 200 psig

  • Approximate Weight: 6.0 lb

  • ISO Class: 1 (Particulate/Oil)


Construction

  • Element Material: Dual Stage – Stainless Steel, Cotton/Polyester

  • Coalescer Grade: Grade 2 Standard

  • Bowl Material: Aluminum

  • Drain Option: Manual Drain

  • Filtration Removes: Dirt, Oil


Dimensions

  • Height: 17.4 in

  • Width: 4.6 in

  • Depth: 4.8 in


Applications

Generally used in mainlines or point-of-use installations where oil and/or fine particulate capture is required.


Note

For higher pressure applications, consult the factory.
Units equipped with a differential pressure indicator have a maximum rating of:

  • 125 ºF

  • 150 PSIG

(regardless of bowl material)


Replacement Parts & Accessories

  • 3C-250 – Replacement Element

  • N32-W1-DPi – Differential Pressure Indicator

  • N32-95-020 – Blanking Cap (Cover for Indicator)

  • N34-15-180 – Bowl Assembly (Metal Bowl, Manual Petcock Drain & O-Ring)

  • PC-03 – Manual Petcock Drain (Metal Bowl)

  • N32-95-256 – Bowl O-Ring
