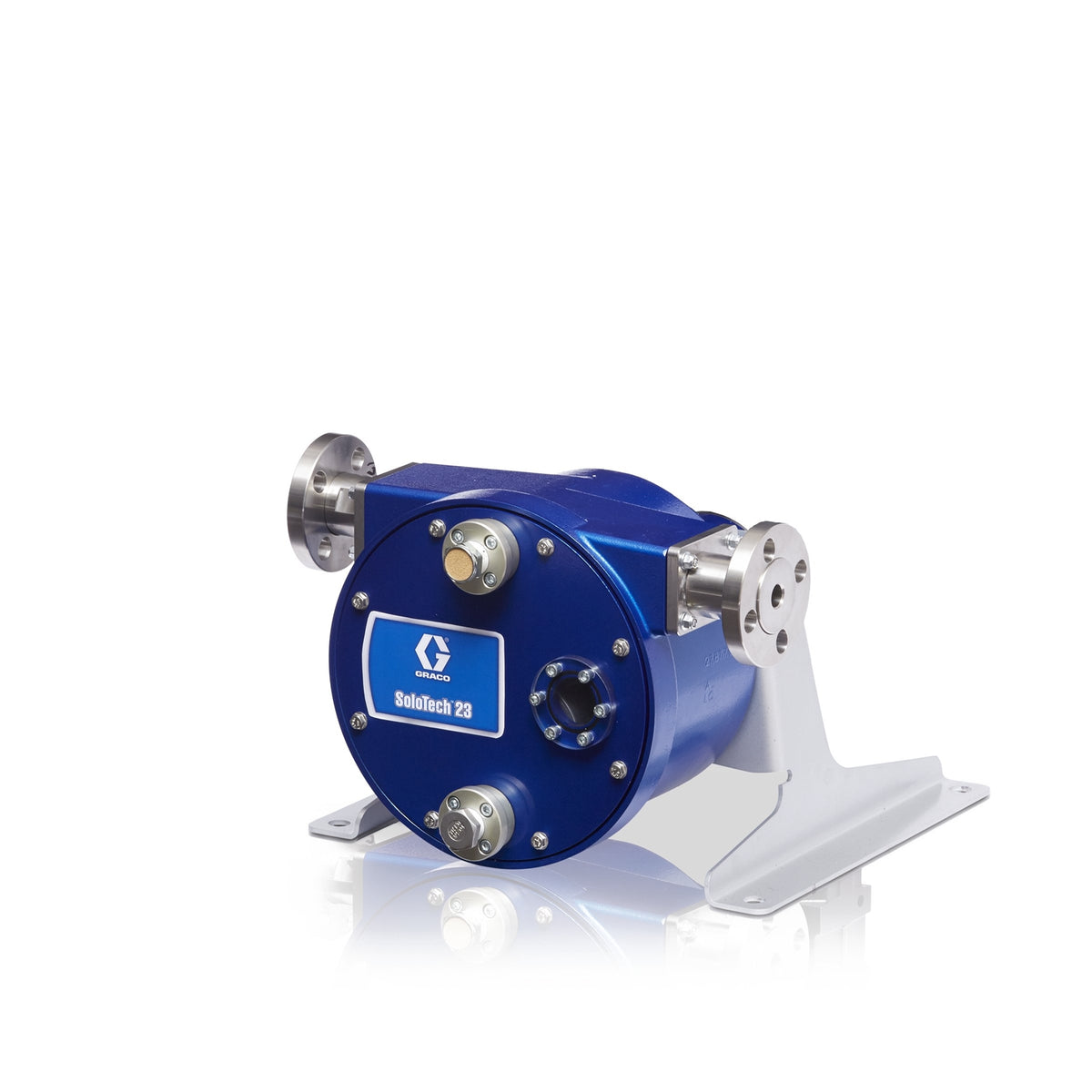

SoloTech™ 23 Mid Speed Hypalon Peristaltic Hose Pump with CSM Hose, Hastelloy-C Barb & IEC Connection

SoloTech™ 23 Mid Speed Hypalon Peristaltic Hose Pump with CSM Hose, Hastelloy-C Barb & IEC Connection

Regular price
$6,720.00
Sale price
$6,720.00
Quantity must be 1 or more


Graco’s SoloTech 23 Hose pump design utilises a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer

  • More flow per revolution than conventional designs
  • Inexpensive to maintain - no valves, seals or glands
  • Extended hose life - only one hose compression per revolution
  • Pumps are reversible and can be used to empty lines or clear blockages
UPC Product: 00755652325710
Family Code: FAMPPP
Unit of Measure: EA
Height: 0 IN   |  0 CM
Length: 0 IN   |  0 CM
Width: 0 IN   |  0 CM
Volume: 0 FT3   |  0 M3
Chargeable Weight: 0 LBS  | 0 KG

Technical Specifications

Type Electric Peristaltic Pump
Application Industrial
Barb Material Hastelloy
Flow Rate (GPM) 1.875
Gear Ratio 51:1
Hose Diameter (cm) 2.3
Hose Diameter (in) 0.91
Hose Diameter (mm) 23
Hose Material CSM
Inlet Size (cm) 2.5
Inlet Size (in) 1
Inlet Size (mm) 25
Inlet Thread Type Flange
Maximum Flow Rate (GPM) 4.5
Maximum Flow Rate (L/min) 17
Maximum Fluid Pressure (bar) 9
Maximum Fluid Pressure (kPa) 900
Maximum Fluid Pressure (psi) 125
Maximum Storage Temperature (°C) 40
Maximum Storage Temperature (°F) 104
Minimum Flow Rate (GPM) 0.313
Minimum Storage Temperature (°C) -10
Minimum Storage Temperature (°F) 14
Model SoloTech
Motor Type Mid Speed, IEC Gearbox Only
Outlet Size (cm) 10.8
Outlet Size (in) 4.25
Outlet Size (mm) 108
Overall Width (cm) 44
Overall Width (in) 17.2
Overall Width (mm) 437
Pump Speed (RPM) 2-94
Series i23
Standards Met ATEX, CE
Volume Per Cycle (gal) 0.054
Volume Per Cycle (L) 0.204
Housing Material Powder Coated Aluminum

;
