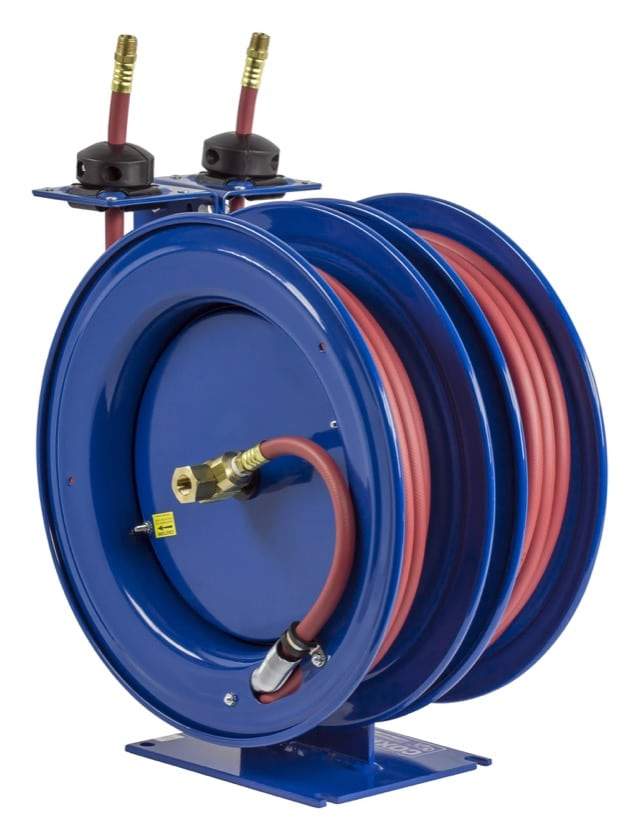

Spring Driven C Series "Combination" Hose Reel : 3/8" Low Pressure (300PSI) w/ Hose
Spring Driven C Series "Combination" Hose Reel : 3/8" Low Pressure (300PSI) w/ Hose
Spring Driven C Series "Combination" Hose Reel : 3/8" Low Pressure (300PSI) w/ Hose
Spring Driven C Series "Combination" Hose Reel : 3/8" Low Pressure (300PSI) w/ Hose
Spring Driven C Series "Combination" Hose Reel : 3/8" Low Pressure (300PSI) w/ Hose
Spring Driven C Series "Combination" Hose Reel : 3/8" Low Pressure (300PSI) w/ Hose
Spring Driven C Series "Combination" Hose Reel : 3/8" Low Pressure (300PSI) w/ Hose

Spring Driven C Series "Combination" Hose Reel : 3/8" Low Pressure (300PSI) w/ Hose

Regular price
$476.34
Sale price
$476.34
Quantity must be 1 or more


COXREELS® C Series “Combination” spring driven hose reels are a combination of two hose reels in one compact assembly. They are perfect for applications in which two sources are needed to get the job done when space is a critical factor. The single mounting base creates stability and adds to the convenience of one mounting pattern. This series is also available in air hose/electrical cord combinations.

    SWIVEL:

    • Two external fluid paths with machined from solid brass 90° full-flow NPT swivel inlets (Zinc plated steel swivels on HP models)
    • Swivel Seals: NITRILE
    • Compact two reel assembly for dual hose applications, each reel operates independently
    • Guide arm adjusts to wall, floor & overhead positions
    • Single expanded, 1⁄4" steel mounting base for increased stability & space efficiency
    • One mounting pattern allow 1⁄2 the installation time required to install 2 reels at one station
    • 1" solid steel axle & lubricated precision bearings for smooth rotation
    • Enclosed factory tuned & matched cartridge-style spring motor
    • Non-corrosive stainless steel spring, pawl & zinc plated ratchet
    • Multi-position lock ratchet mechanism secures hose at desired length
    SIGNATURE FEATURES:
    • Professional grade heavy duty steel construction
    • Durable proprietary CPCTM powder coat process
    • Rolled edges & ribbed discs provide strength & safety
    • Leading 2-year manufacturer’s limited warranty
    • Made in the U.S.A. - Sold & Supported Worldwide
    POSSIBLE FIELDS OF APPLICATION:
    • Air/Water Services
    • Pneumatic Tools
    • Washdown
    • Lubrication
    • Chemical Fluid Transfer
    • General Industrial, Manufacturing Plants & Facilities
    • Maintenance, Repair & Operations
    • Automotive & Fleet Service Centers
    I.D 3/8"
    O.D 5/8"
    LENGTH 25'
    HOSE Yes
    MAX PSI 300
    SHIP WEIGHT (LBS) 67
    OVERALL DIMENSIONS (W) (H) (L) 10.5"(W) 18.63"(H) 17"(L)
    MOUNTING PATTERN (M) (N)  7"(M) 8"(N)
    BASE (X) (Y)  8"(X) 9"(Y)

    ;
