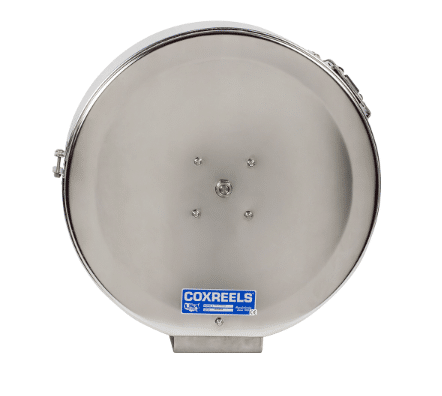

Spring Driven Hose Reel - 300 PSI - SS Series "Stainless Steel"
Spring Driven Hose Reel - 300 PSI - SS Series "Stainless Steel"
Spring Driven Hose Reel - 300 PSI - SS Series "Stainless Steel"
Spring Driven Hose Reel - 300 PSI - SS Series "Stainless Steel"
Spring Driven Hose Reel - 300 PSI - SS Series "Stainless Steel"
Spring Driven Hose Reel - 300 PSI - SS Series "Stainless Steel"

Spring Driven Hose Reel - 300 PSI - SS Series "Stainless Steel"

Regular price
$1,312.96
Sale price
$1,312.96
Quantity must be 1 or more


LESS HOSE - Fits for 3/8" x 5/8" x 35' Hose

COXREELS® SS Series "Stainless Steel" spring driven hose reels have similar features to their related series but are constructed of high quality electro-polished stainless steel with stainless steel fluid paths. They offer clean, non-corrosive performance in applications that require it, such as food and chemical processing, marinas, and anywhere that rust, corrosion, and contamination thrive.

SWIVEL

  • Non-corrosive external fluid path with machined from high quality stainless steel 90° full-flow NPT swivel inlet
  • Swivel Seals: NITRILE Non-Toxic Food Grade Grease

DESIGN & STRUCTURE

  • Sturdy enclosed reel for aesthetic purposes & greater hose protection
  • Heavy gauge steel 3-piece casing with adjustable hose roller guide

RETRACT

  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position lock ratchet mechanism secures hose at desired length

    SIGNATURE FEATURES:

    • Professional grade heavy duty steel construction
    • Rolled edges & ribbed discs provide strength & safety
    • Leading 2-year manufacturer's limited warranty
    • Made in the U.S.A. - Sold & Supported Worldwide

    SWIVEL - Non-corrosive external fluid path with machined from high quality stainless steel 90˚ full-flow NPT swivel inlet.
    CARTRIDGE MOTOR - Electro-polished stainless steel lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
    CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
    1/4" STEEL BASE - Sturdy single pedestal design with solid one piece stainless steel base and support post, no weld, for maximum stability.
    ENCLOSED DESIGN- Sturdy enclosed reel for aesthetic purposes and greater hose protection. Heavy gauge steel 3-piece casing with adjustable hose roller guide.
    OTHER FEATURES INCLUDE - Multi-position lock ratchet mechanism, and lubricated precision bearings.

    I.D 3/8"
    O.D 5/8"
    LENGTH 35'
    HOSE No
    MAX PSI 300
    SHIP WEIGHT (LBS) 46
    OVERALL DIMENSIONS (W) (H) (L) 6.88"(W) 18.88"(H) 19"(L)
    MOUNTING PATTERN (M) (N)  4"(M) 5"(N)
    BASE (X) (Y)  6"(X) 6"(Y)

    ;
