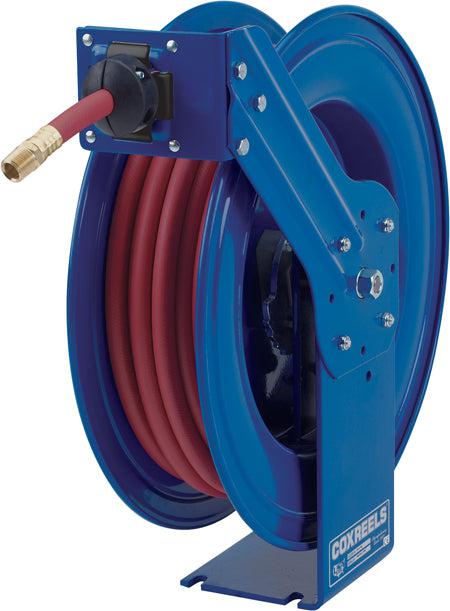

Spring Driven Hose Reels - 300PSI  - w/ Hose (1/2"Hose Dia. x 75')
Spring Driven Hose Reels - 300PSI  - w/ Hose (1/2"Hose Dia. x 75')
Spring Driven Hose Reels - 300PSI  - w/ Hose (1/2"Hose Dia. x 75')
Spring Driven Hose Reels - 300PSI  - w/ Hose (1/2"Hose Dia. x 75')
Spring Driven Hose Reels - 300PSI  - w/ Hose (1/2"Hose Dia. x 75')
Spring Driven Hose Reels - 300PSI  - w/ Hose (1/2"Hose Dia. x 75')

Spring Driven Hose Reels - 300PSI - w/ Hose (1/2"Hose Dia. x 75')

Regular price
$743.00
Sale price
$743.00
Quantity must be 1 or more


COXREELS® SH Series “Super Hub™” spring driven hose reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels’ original Super Hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.

Features

  • Professional grade heavy duty steel construction
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

SWIVEL

  • External fluid path with machined from solid brass 90º full-flow NPT swivel inlet
    (Zinc plated steel swivel on HP models)
  • Swivel Seals: NITRILE

DESIGN & STRUCTURE

  • Guide arm adjusts to wall, floor, vehicle & overhead positions.
  • Solid one piece, heavy gauge 1/4" steel base and support post for maximum stability.
  • 1" solid steel axle and lubricated precision bearings for smooth rotation.

RETRACT

  • Enclosed factory tuned and matched cartridge-style spring motor.
  • Non-corrosive stainless steel spring, pawl and zinc plated ratchet.
  • Multi-position lock ratchet mechanism secures hose at desired length.
I.D 1/2"
O.D 3/4"
LENGTH 75'
HOSE Yes
MAX PSI 300
SHIP WEIGHT (LBS) 68
OVERALL DIMENSIONS (W) (H) (L) 8.75"(W) 25.5"(H) 24"(L)
MOUNTING PATTERN (M) (N)  4"(M) 5"(N)
BASE (X) (Y)  6"(X) 6"(Y)

;
