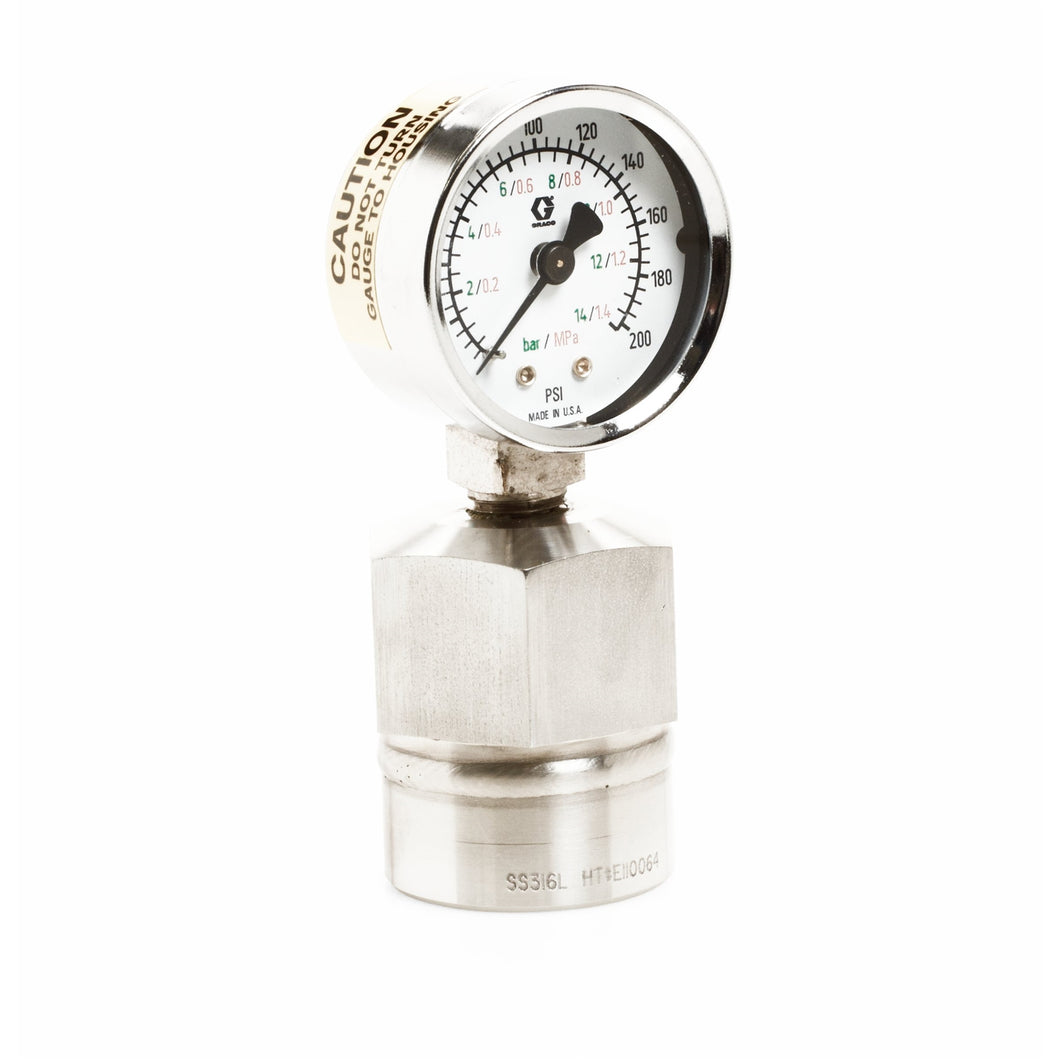

Stainless Steel Fluid Gauge with Dampener, 0-2000 psi (0-140 bar)

Stainless Steel Fluid Gauge with Dampener, 0-2000 psi (0-140 bar)

Regular price
$197.50
Sale price
$197.50
Quantity must be 1 or more


  • Dampener protects gauge from severe pressure pulsation
  • Corrosion Resistant
  • 2.5 in (63mm) diameter dial
  • 1/4 in NPT connections
UPC Product: 00633955580879
Family Code: FAMCNV
Unit of Measure: EA
Height: 2.3 IN   |  5.842 CM
Length: 5.5 IN   |  13.97 CM
Width: 4.4 IN   |  11.176 CM
Volume: .032 FT3   |  .001 M3
Chargeable Weight: 1.43 LBS  | .65 KG

Technical Specifications

Dial Diameter (cm) 5
Dial Diameter (in) 2
Dial Diameter (mm) 51
Inlet Size (cm) 0.635
Inlet Size (in) 1/4
Inlet Size (mm) 6.35
Inlet Thread Gender Male
Inlet Thread Type NPT
Maximum Working Pressure (bar) 14
Maximum Working Pressure (kPa) 1400
Maximum Working Pressure (psi) 200
Type Pressure Gauge
Maximum Working Pressure (MPa) 1.4

;
