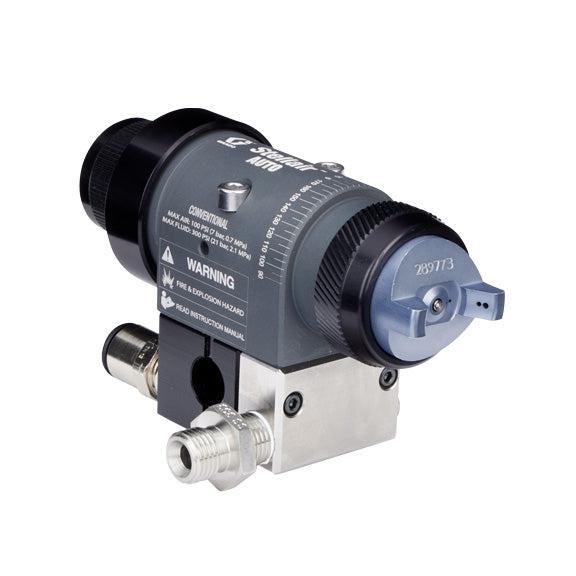

Stellair automatic air spray gun, conventional, 0.055 in (1.4 mm) nozzle for general applications, with a side inlet manifold (metric)

Stellair automatic air spray gun, conventional, 0.055 in (1.4 mm) nozzle for general applications, with a side inlet manifold (metric)

Regular price
$1,534.42
Sale price
$1,534.42
Quantity must be 1 or more


The conventional air spray gun produces stellar results for general industry applications using robots, reciprocators, flat line machines or other automated finishing technologies.

The automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.

  • Conventional is the most widely used air spray method, producing Class A, automotive finish quality.
  • General industry air caps and nozzles produce a uniform, high quality spray pattern with a low atomising pressure.
  • The two-screw manifold to gun connection makes installation easy.
  • The patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
  • The one piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
  • The direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.
UPC Product: 00769946741124
Family Code: FAMCAP
Unit of Measure: EA
Height: 4 IN   |  10.16 CM
Length: 8.5 IN   |  21.59 CM
Width: 6 IN   |  15.24 CM
Volume: .003 M3   |  .118 FT3
Chargeable Weight: 1 KG  | 2.2 LBS

Technical Specifications

Body Material Metal
Compatible Material Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stains, UV Coating, Waterborne
Fluid Orifice Size (in) 0.055
Fluid Orifice Size (mm) 1.4
Gun Type Conventional Gun
Gun Weight (g) 430
Gun Weight (lb) 1
Maximum Air Pressure (bar) 7
Maximum Air Pressure (psi) 100
Maximum Fluid Temperature (°C) 49
Maximum Fluid Temperature (°F) 120
Minimum Air Inlet Pressure (bar) 3.4
Minimum Air Inlet Pressure (psi) 50
Overall Height (in) 2.95
Overall Height (mm) 75
Overall Length (in) 5.10
Overall Length (mm) 129.5
Overall Width (in) 3.55
Overall Width (mm) 90.2
Application General
Type Auto Gun
Applicator Type Automatic
Needle Tip Material PEEK
Fluid Adjustment Knob N/A
Sound Power Level (dB(A)) 88.82
Sound Pressure Level (dB(A)) 78.91
Maximum Fluid Working Pressure (psi) 300
Maximum Fluid Working Pressure (MPa) 2.1
Maximum Fluid Working Pressure (bar) 21
Maximum Flow Rate (oz/min) 18
Maximum Air Pressure (MPa) 0.7
Minimum Air Inlet Pressure (MPa) 0.34
Gun Model Stellair
Manifold Type Side Inlet
Nozzle Size (in) 0.055
Nozzle Size (mm) 1.4
gun_series Automatic

;
