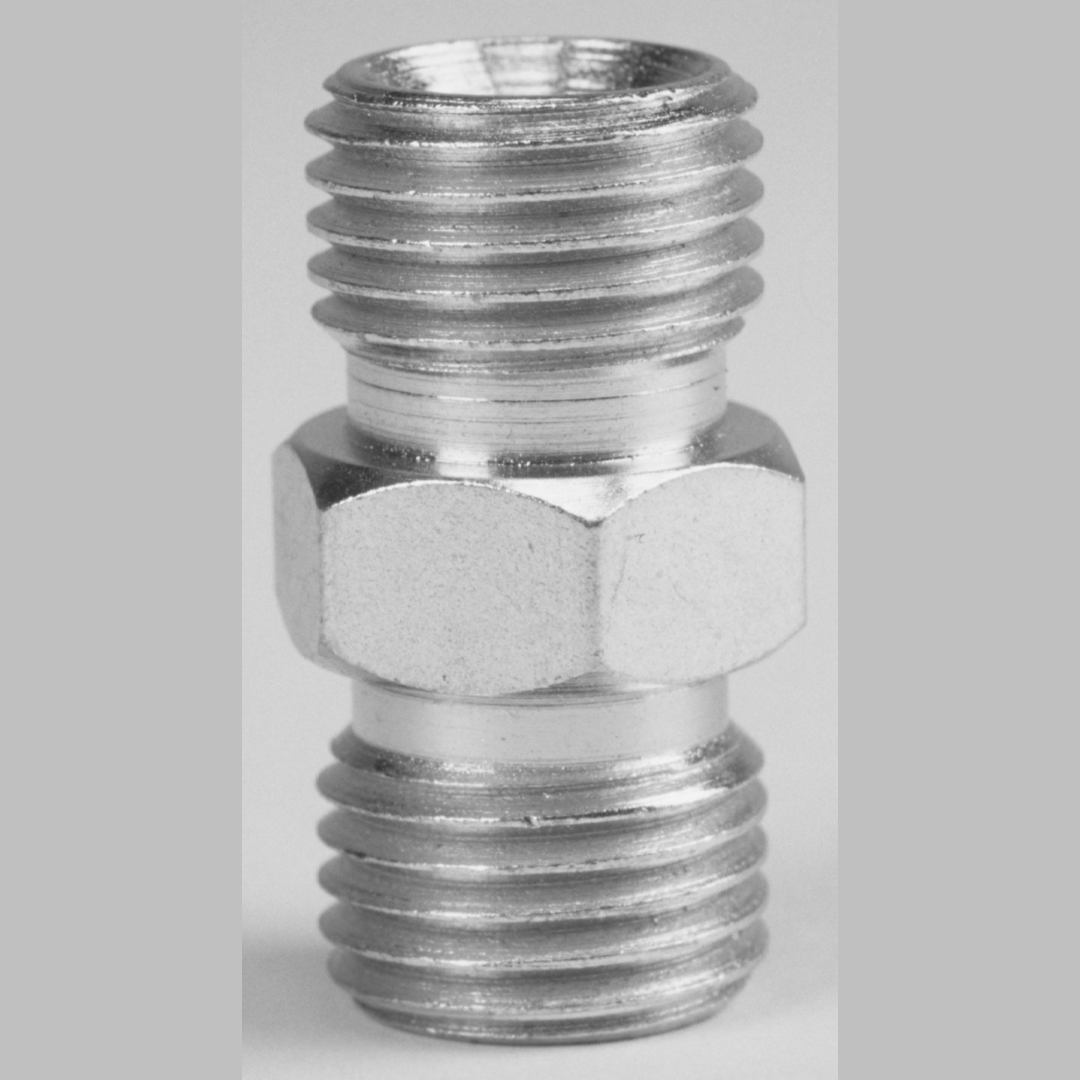

Titan 9885646 is a high-pressure hose-to-hose coupling (union) with a 3/8" NPTF male thread on one end and a 1/4" NPTF male thread on the other. Use it to join two airless hoses, extend hose length, or step between 3/8" and 1/4" connections on a Titan airless sprayer.
Specifications
| Part number | 9885646 |
|---|---|
| Titan description | HP union 3/8" M x 1/4" M |
| Thread ends | 3/8" NPTF (M) x 1/4" NPTF (M) |
| Material / finish | Carbon steel, plated for corrosion resistance |
| Maximum working pressure | 7,500 psi (51.7 MPa) |
| Fitting type | High pressure hose to hose coupling |
Where it is listed
Titan lists this coupling with its airless fittings and in the parts and accessories pages of the Hydra X service manual. Related sizes in the same coupling line: 9885642 (1/4" x 1/4"), 9885643 (3/8" x 3/8"), 9885644 (1/2" x 1/4"), 9885645 (3/4" x 1/2"), 9885647 (1/2" x 3/8") and 9885648 (1/2" x 1/2").
