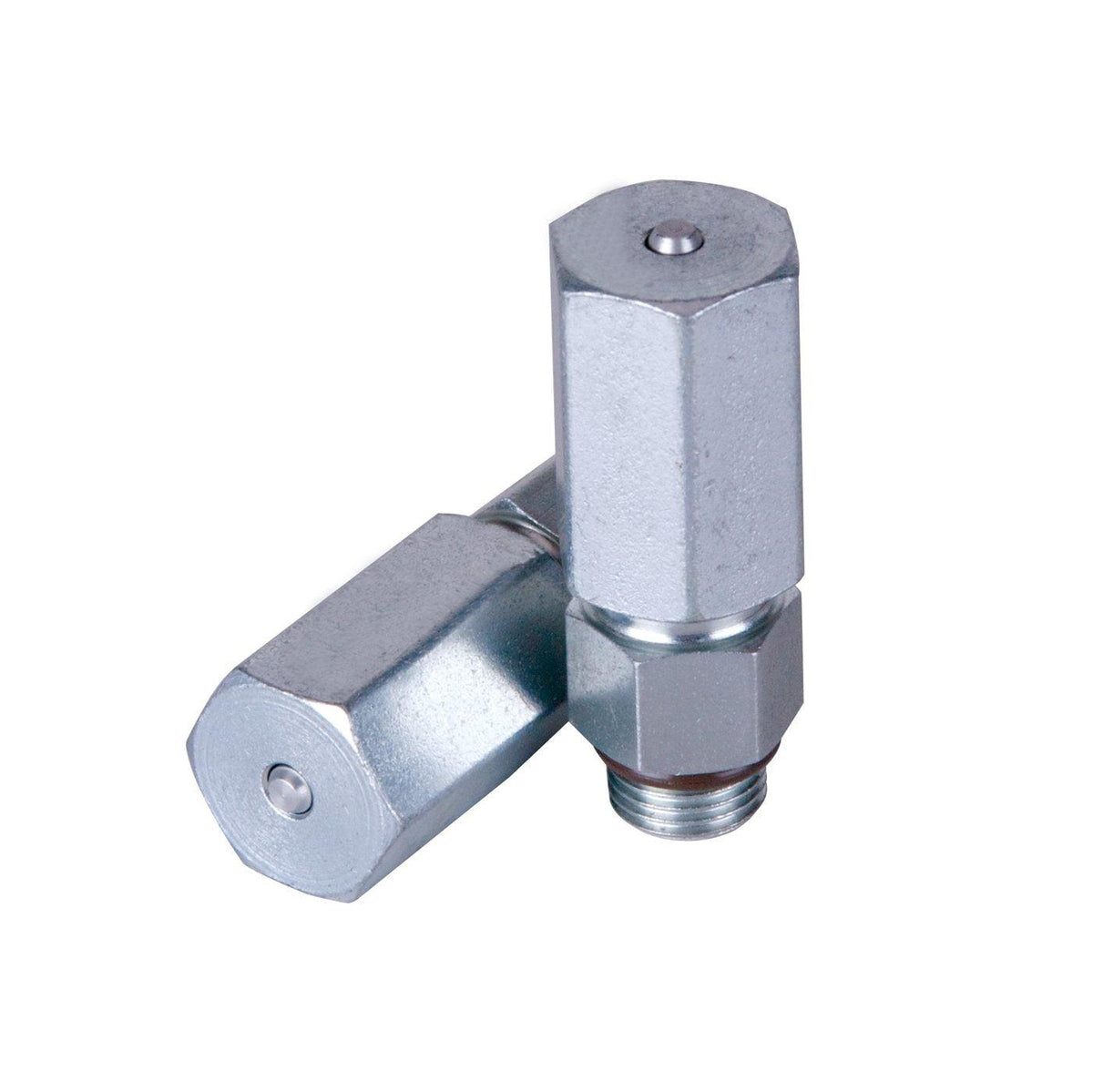

Used on MH divider valve applications where lube system pressures exceed 2,500 psi (172 bar).
Feel free to call or chat with us for recommendations.
📦
Ships in 2-3 weeks, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- High pressure from blockage causes a disc to rupture
- Lubricant forces an indicator pin to protrude, indicating the blockage
- High pressure backs up through the system and trips a switch to shut the system off
- When fault is corrected, disc must be replaced and pin reset
- Lubriquip part number 509-499-165
UPC Product: 00633955331556
Family Code: FAMCPT
Unit of Measure: EA
Height:
.6 IN
| 1.524 CM
Length:
.6 IN
| 1.524 CM
Width:
1.5 IN
| 3.81 CM
Volume:
0 FT3
| 0 M3
Chargeable Weight:
.09 LBS
| .04 KG
Technical Specifications
| Application | In-Plant Machinery, Compressor Equipment |
|---|---|
| Compatible Material | Oil |
| Connection Size (in) | 0.125 |
| Indicator Type | Rupture Indicator |
| Maximum Working Pressure (bar) | 441 |
| Maximum Working Pressure (kPa) | 44100 |
| Maximum Working Pressure (psi) | 6400 |
| Overall Width (mm) | 14.224 |
| Overall Length (cm) | 4 |
| Overall Length (in) | 1.77 |
| Overall Length (mm) | 45 |
| Overall Width (cm) | 1.4224 |
| Overall Width (in) | 0.56 |
| Thread Type | NPSF |
| Type | Relief Indicator |
| Maximum Working Pressure (MPa) | 44 |
| Model | Trabon |
