36”W x 24”D x 23”H

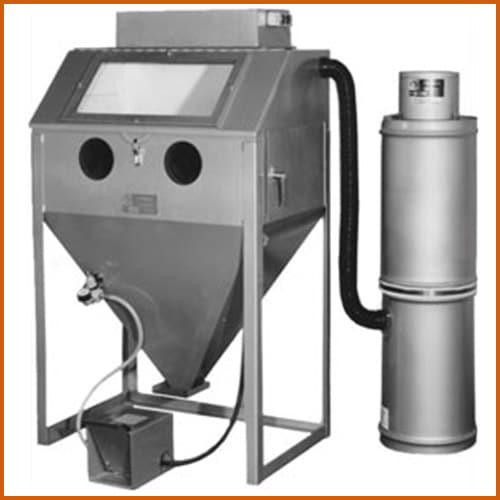

Designed for intermittent blasting operations. The TRINCO™ Model 36 with Dust Collector vacuums the dust and contamination from the cabinet. Media is recycled from the gun system to the hopper and back to the gun system.
TRINCO™ BP Dust Collectors vacuum air borne dust from the cabinet during blasting, providing good visibility for the operator and preventing dust from escaping the cabinet. TRINCO™ BP Dust Collectors are ideal for low to medium blasting requirements. Click System Upgrades button for information on the TRINCO™ 400PT Dust Collector for medium to high blasting requirements
-Bright white fluorescent lighting provides excellent illumination and eliminates shadows
-Large safety glass window with easy change window frame provides excellent visibility.
-TRINCO™ Air Pressure Regulator and gauge mounted at the front of the blast cabinet allows for easy adjustment of blast pressures
-Double floor – 1/8″ thick Expanded Steel Grate on top of a fine mesh steel carbon screen. The fine mesh screen traps contaminants preventing gun blockages
-1 Year TRINCO™ Warranty on non-consumable parts
-Very popular model, great for automotive repair shops
-Heavy duty 14 gauge welded steel construction
-Spring loaded hopper trap door for easy media changes
-Heavy duty blast gun with Tungsten Carbide nozzle, 25 CFM air jet, and safety enclosed foot pedal control
-Available with TRINCO™ Model 36 with BP Dust Collector (shown), TRINCO™ Abrasive Separator or TRINCO™ Deluxe line
-ALL 36×36 models available with roll out turntable & cartridge dust collectors
- ALL MODELS available in 36×30
- All Model available in 36×36
