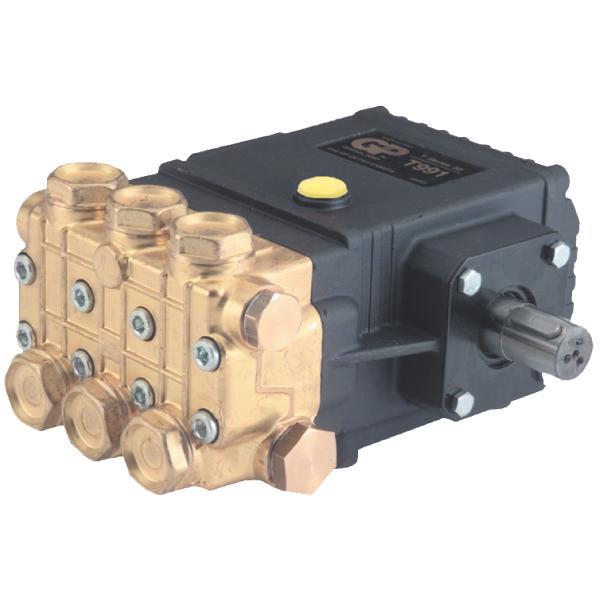

Solid shaft with pump rails 24mm shaft 1/2” BSP-F inlet, 3/8” BSP-F outlet
FEATURES:
- The preferred pump frame in the cleaning industry
- Forged brass manifold with an exdlusive lifetime warranty
- Large capacity, die cast, anodized aluminum oil bath crankcase
- Over sized connecting rods for maximum life
- Heavy duty tapered roller bearing
- Solid ceramic plungers with continuously lubricating packings
- Unitized stainless steel inlet and discharge valves
- Available in left handed "L" version
SPECIFICATIONS:
- Maximum Volume: 3.5/4.0 GPM
- Maximum Discharge Pressure: 2100/2000 PSI
- Maximum Pump Speed: 1450/1750 RPM
- Maximum Inlet Pressure: 125 PSI
- Bore: 20mm (.787")
- Stroke: 10mm (.394")
- Crankcase Oil Capacity: 33.8 oz.
- Maximum Fluid Temperature: 165 F
- Inlet Port Thread: 1/2" FPT
- Discharge Port Thread: 3/8" FPT
- Shaft Diameter: 24mm (.945")
- Weight: 32 lbs.
- Dimensions: 12.2" x 9.2" x6.9"
