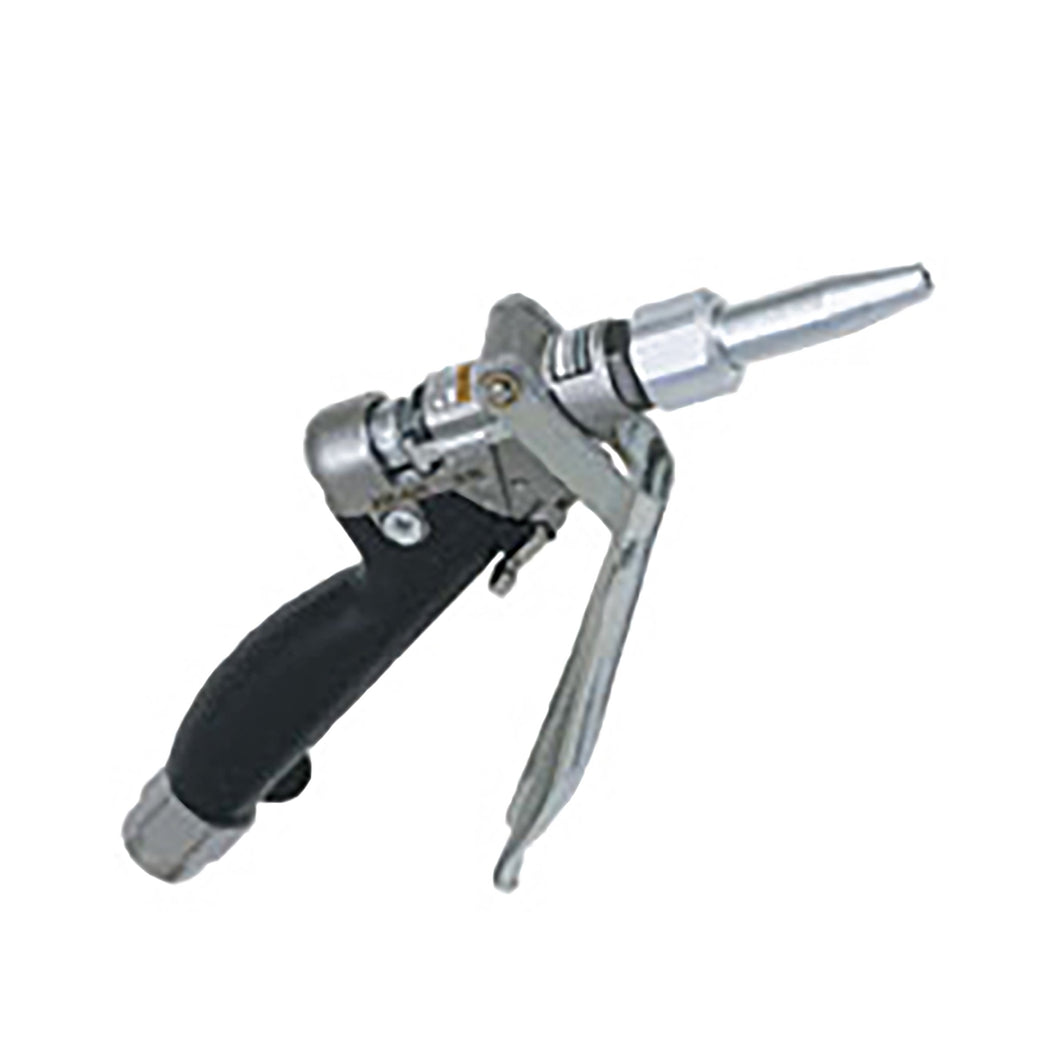

The operator-friendly Ultra-Lite 6000 combines ergonomic design with high-operating pressure for dispensing low-to-medium viscosity industrial and automotive sealants and adhesives.
For precise control of low-to-medium viscosity materials
Feel free to call or chat with us for recommendations.
📦
Ships in 6-10 days, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Operating pressures to 6000 psi (414 bar; 41.4 MPa).
- 150° head/handle angle is more comfortable for operator
- Changeable tips for a variety of dispensing needs
- Lightweight with convenient trigger pull
- Compatible with a variety of nozzles (1/4 in NPT (F) with nut for metal flanged nozzle). Order nozzle separately.
UPC Product: 00633955939462
Family Code: FAMAPA
Unit of Measure: EA
Height:
4.2 IN
| 10.668 CM
Length:
11 IN
| 27.94 CM
Width:
4.1 IN
| 10.414 CM
Volume:
.11 FT3
| .003 M3
Chargeable Weight:
1.79 LBS
| .81 KG
Technical Specifications
| Type | Dispense Gun |
|---|---|
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation |
| Connection Type | Threaded, Flange |
| Gun Activation | Manual |
| Maximum Working Pressure (bar) | 415 |
| Maximum Working Pressure (kg/cm²) | 422 |
| Maximum Working Pressure (kPa) | 41500 |
| Maximum Working Pressure (MPa) | 41.5 |
| Maximum Working Pressure (psi) | 6000 |
| Nozzle Size (cm) | 0.508 |
| Nozzle Size (in) | 0.2 |
| Nozzle Size (mm) | 5.08 |
| Number of Outputs | 1 |
| Series | 6000 |
| Model | Ultra-Lite |
