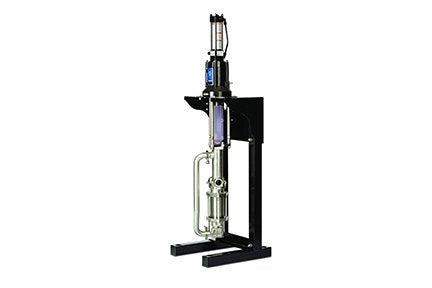

Viscount II 1900/3100 Bin Supply Piston Pumps for Ink Applications

Viscount II 1900/3100 Bin Supply Piston Pumps for Ink Applications

Regular price
$18,635.29
Sale price
$18,635.29
Quantity must be 1 or more


Save up to 80% on energy costs when you choose a hydraulic piston pump! When paired with any of Graco's priming piston pumps, the Viscount II hydraulic air motor offers exceptional cost savings by operating on 20% of the energy used by a pneumatic motor. The Viscount II, Graco's patented hydraulic motor, replaces the King, Bulldog or Senator motors with the 800 or 2100 pump.

  • Clean, quiet and efficient hydraulic power
  • Extremely durable hydraulic pump with long-life packing design
  • Highly efficient Viscount hydraulic motor reduces energy costs
  • Stainless steel wetted parts with neoprene packing
UPC Product: 00633955033009
Family Code: FAMINK
Unit of Measure: EA
Height: 16.8 IN   |  42.672 CM
Length: 61.2 IN   |  155.448 CM
Width: 15.6 IN   |  39.624 CM
Volume: 9.28 FT3   |  .263 M3
Chargeable Weight: 226 LBS  | 102.51 KG

Technical Specifications

Type Piston Transfer Pump
Application Industrial
Fluid Outlet Size (in) 1
Fluid Outlet Size (mm) 25.4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Material Carbon Steel
Maximum Flow Rate (GPM) 3
Maximum Flow Rate (L/min) 11.4
Maximum Hydraulic Fluid Inlet Pressure (bar) 103
Maximum Hydraulic Fluid Inlet Pressure (kPa) 10300
Maximum Hydraulic Fluid Inlet Pressure (psi) 1500
Maximum Operating Temperature (°C) 82
Maximum Operating Temperature (°F) 180
Maximum Working Pressure (bar) 159
Maximum Working Pressure (kPa) 15900
Maximum Working Pressure (psi) 2300
Model Viscount
Power Type Hydraulic
Pump Ratio 19:1
Series II
Maximum Working Pressure (MPa) 15.9
Package Options None

;
