VMP-10120V-603 V-Max Elite Air Compressor  10 HP  120-Gallon Vertical Tank  208-230V, 60 HZ 3-Phase

VMP-10120V-603 V-Max Elite Air Compressor 10 HP 120-Gallon Vertical Tank 208-230V, 60 HZ 3-Phase

Regular price
$5,295.00

See Lower Price in Cart

Quantity must be 1 or more


Specifications VMP-10120V-603
  • 10 HP energy-efficient motor
  • Extra-quiet, low-RPM pump
  • Cast-iron V-Max Elite pump features simple splash lubrication for total reliability and a "V-4" finned cylinder configuration that provides 360° cooling
  • Proven air-cooled design is economical, reliable and environmentally friendly
  • Two compression rings and one oil control ring provide excellent oil control and high efficiency air delivery
  • Dual drive belts require less belt tension resulting in less load on pump bearings, longer belt life and low vibration
  • Fully-enclosed belt guard
  • Cast-iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with a pressed-in sleeves do
  • ASME rated tank
  • Large surface area and cooling fins on cylinders and forced-air after-cooler provides efficient heat dissipation for lower operating temperatures and dryer air. Compressor runs cooler, oil life is extended and maintenance is reduced
  • Tapered roller main bearings provide full contact and support of the crankshaft and needle-type piston pin bearings properly distribute bearing loads
  • Precision balanced flywheel has forced-air fan blades for optimum compressor cooling and life
  • Magnetic starter provides thermal overload protection and minimizes start loads providing long life and trouble‐free operation
  • ASME rated safety valve protects the compressor from overpressure and safeguards the operator
  • Balanced flywheel and counterbalanced crankshaft results in nearly vibration-free operation
  • Readily accessible disc-valves do not require disassembly of compressor piping, for easy accessibility and reduced maintenance cost and downtime
  • Corrosion resistant tubing for coolers, separators and valves for longer life and reduced maintenance
  • Oversized ductile iron crankshaft provides extra strength and longer wear
  • High-density, die-cast aluminum alloy rods minimize reciprocating weight
  • Rugged cast iron oil reservoir has convenient sight gauge glass, large oil drain and convenient fill cap
  • Automatic pressure switch provides auto start and stop
  • Integrated pressure unloader valves are built into the intake valve assembly on the compressor head, reducing internal pump heat from initial start-up compression

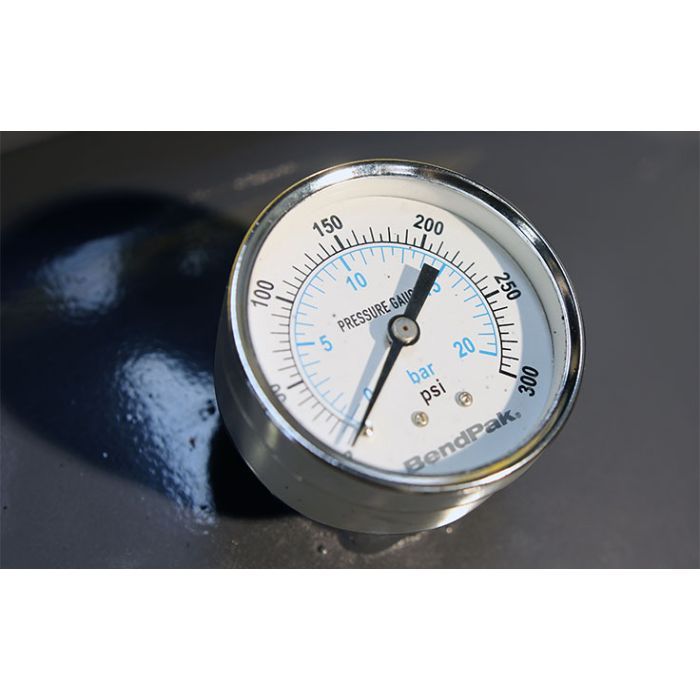

  • Pressure gauge with service valve
  • Oversize replaceable air filters

Motor

Horsepower:
10 HP
RPM:
1,750 RPM
Voltage:
208-230 Volt AC
Phase:
3-Phase
Hertz:
60 Hz
Magnetic Starter:
Yes
Amp Draw:
18
Recommended Breaker:
50 Amp Breaker
Noise:
78 dB

Pump

Style:
Two-Stage / V-4
Pump RPM:
625 RPM
Material:
Solid Cast Iron
Duty Cycle:
Continuous
CFM:
26 CFM
CFM Rated @:
175 PSI
Max PSI:
175 PSI
Oil Sight Glass:
Yes
Pump Type:
Two-Stage
Pump Drive:
Belt Drive
Oil Type:
Oil Lubricated
Oil System:
Full Pressure Lubrication

Tank

Orientation:
Vertical
Size:
120 gallon
Outlet:
3/4" Fitting
Electronic Drain Valve:
Yes
Certification:
UL, CSA, ASME

Dimensions

Width:
24" (610 mm)
Depth:
72" (1,829 mm)
Height:
34" (864 mm)

Shipping

Weight:
880-lbs. (399 kg)
Dimensions:
45'' x 40'' x 78'' (1,143 mm x 1,016 mm x 1,981 mm)
