Wagner Puma 28-40 NPS — Wagner order no. 2329469, from the Puma 28-40 product line.
Overview

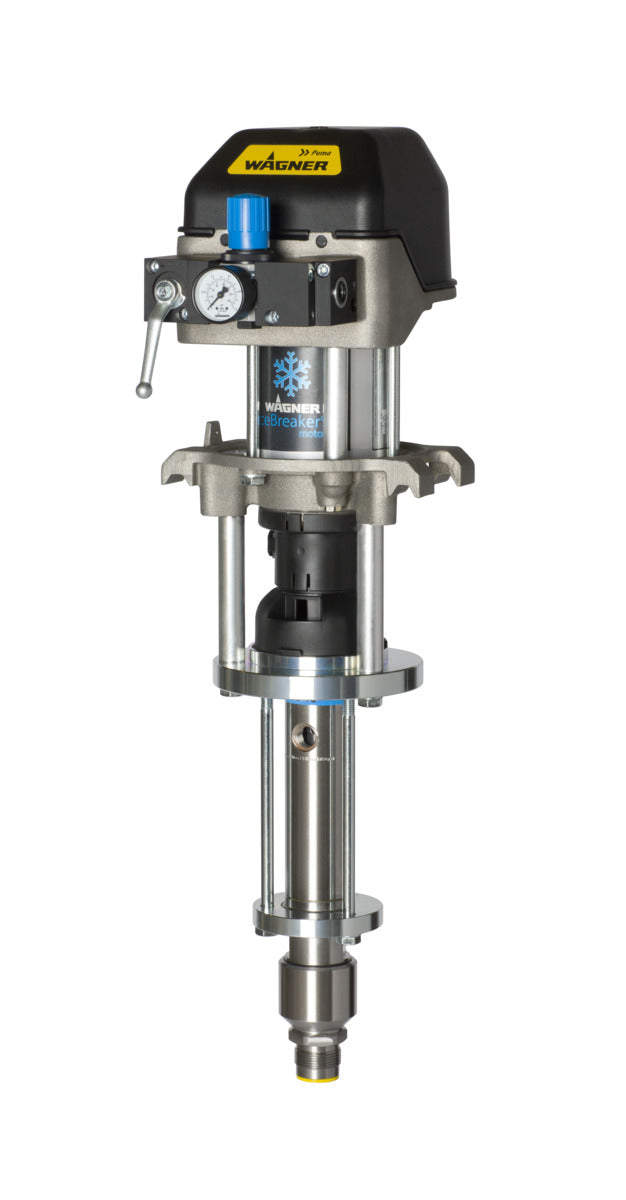

The Puma 28-40 high-pressure piston pump can be used for AirCoat and airless applications with up to 220 bar and one gun.
Technical data (Puma 28-40)
| Application area Metal coating, Wood coating, Demolding and separating, Adhesive bonding |
| Application technique Airless, AirCoat |
| Processable materials Water-borne, Solvent-borne, sensitive to moisture |
| Material Wetted Parts Stainless steel, Hard chrome, Carbide, PTFE (polytetrafluoroethylene), PA (polyamide) |
| Weight 16 kg |
| Material outlet M M24x1,5 |
| Compressed air connection I G 1/2'' |
| Air inlet pressure 2.5-8 bar |
| Max. Material Pressure 224 bar |
| Volumetric flow per double stroke 40 cm³ |
| Volumetric Flow per Minute 2.4 l/min |
| Max. Stroke Rate 60 1/min |
| Sound level at 6 bar air pressure 74 dB(A) |
| Max. Allowed Inclination 10 ° |
| Transmission ratio (:1) 28 :1 |
| Material pH value 3.5-9 pH |
| Material temperature 5-80 °C |
Configured to order from Wagner. Call (888) 714-1410 for lead time, configuration help and system quotes.
