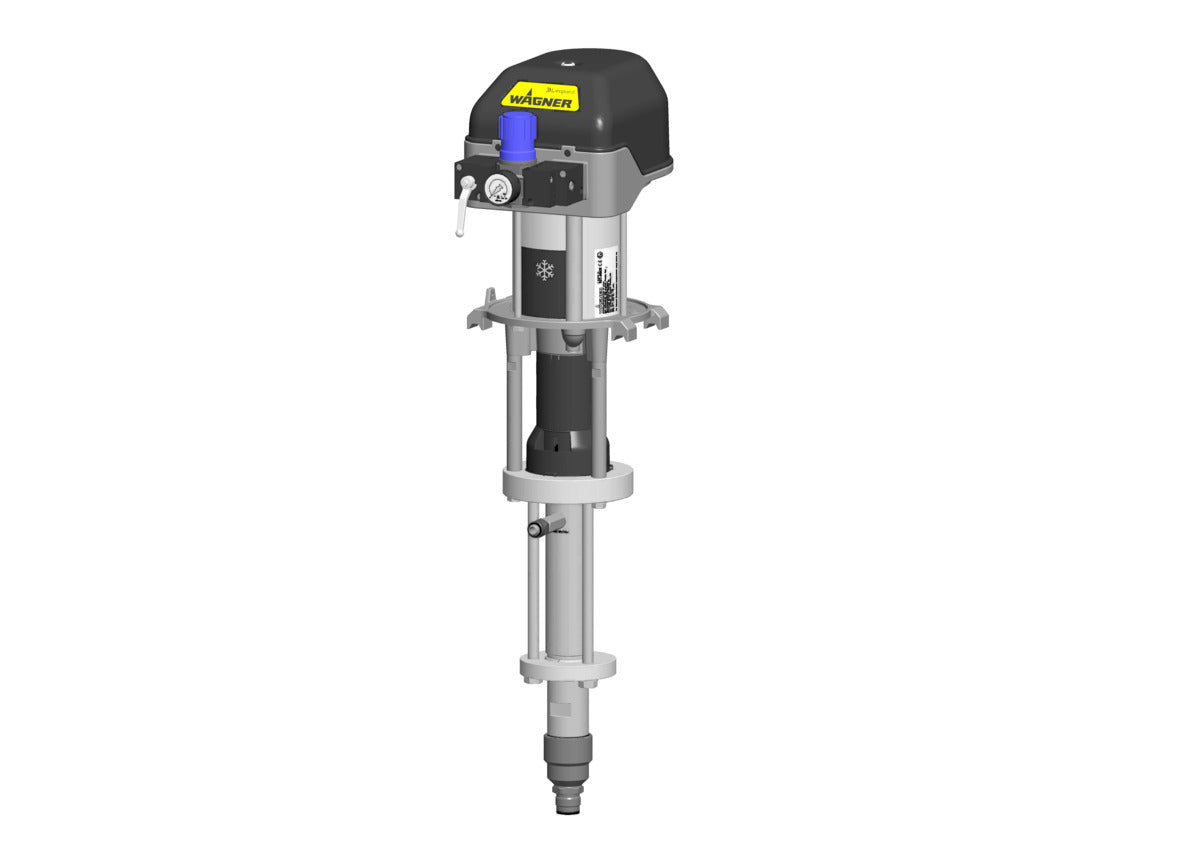

Wagner Leopard 35-150 PE/TG — Wagner order no. 2329484, from the Leopard 35-150 product line.
Overview
The Leopard 35-150 high-pressure piston pump can be used for AirCoat and airless applications with up to 250 bar and multiple guns.
Technical data (Leopard 35-150)
| Application area Metal coating, Protective Coating, Wood coating, Demolding and separating, Adhesive bonding |
| Application technique Airless, AirCoat |
| Processable materials Water-borne, Solvent-borne, Abrasive, sensitive to moisture |
| Material Wetted Parts Stainless steel, Hard chrome, Carbide, PTFE (polytetrafluoroethylene), PE (polyethylene) |
| Weight 36 kg |
| Material outlet M M24x1,5 |
| Compressed air connection I G 1/2'' |
| Air inlet pressure 2.5-7.7 bar |
| Max. Material Pressure 250 bar |
| Volumetric flow per double stroke 150 cm³ |
| Volumetric Flow per Minute 9 l/min |
| Max. Stroke Rate 60 1/min |
| Sound level at 6 bar air pressure 78 dB(A) |
| Max. Allowed Inclination 10 ° |
| Transmission ratio (:1) 35 :1 |
| Material pH value 3.5-9 pH |
| Material temperature 5-80 °C |
Configured to order from Wagner. Call (888) 714-1410 for lead time, configuration help and system quotes.
